Stainless Steel Glass Handrail

What is stainless steel glass handrail?

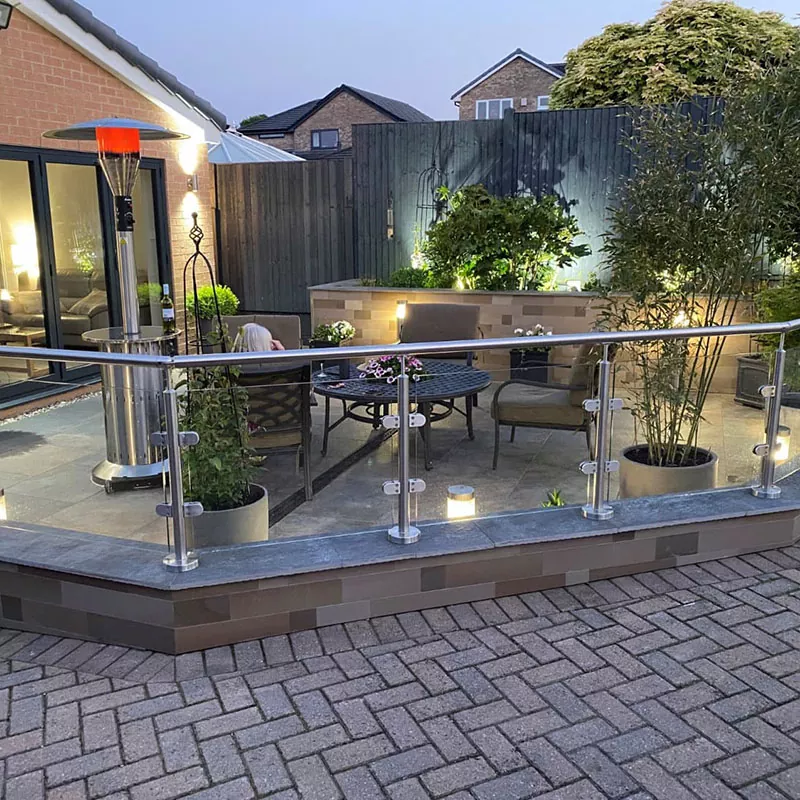

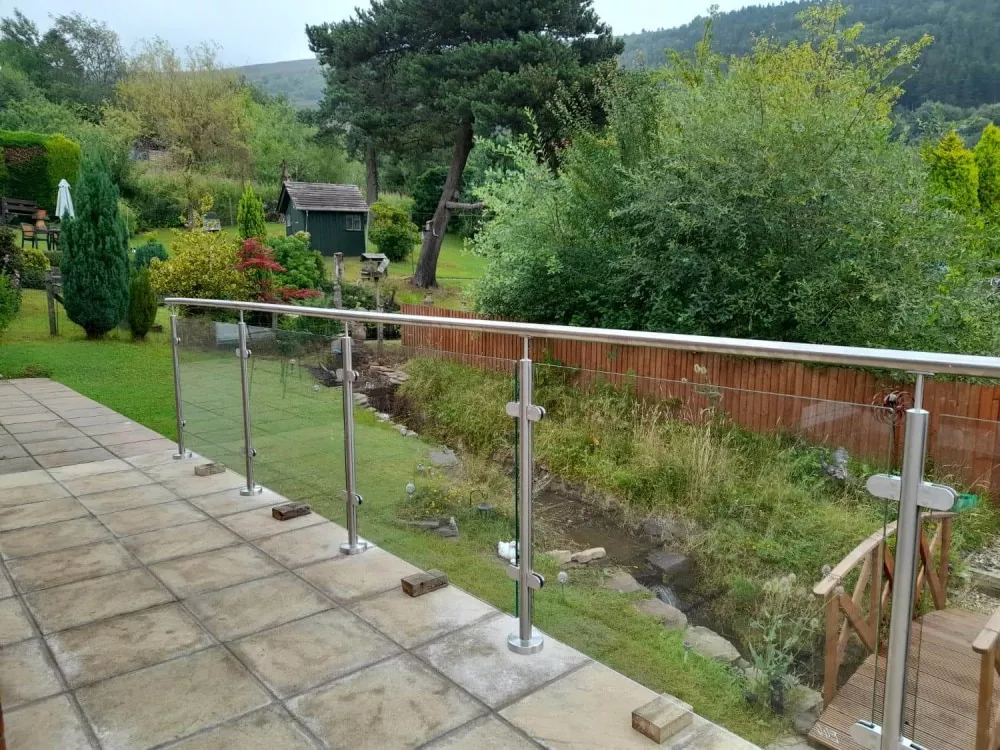

Stainless Steel Glass Handrail is a modern railing system that combines a structural stainless steel framework with safety glass panels. The stainless steel components — posts, top rails, and fittings — bear the load and provide rigidity, while the glass infill keeps sightlines completely open. The result is a barrier that meets building code safety requirements without visually dividing the space, making rooms, balconies, and staircases feel noticeably larger and brighter.

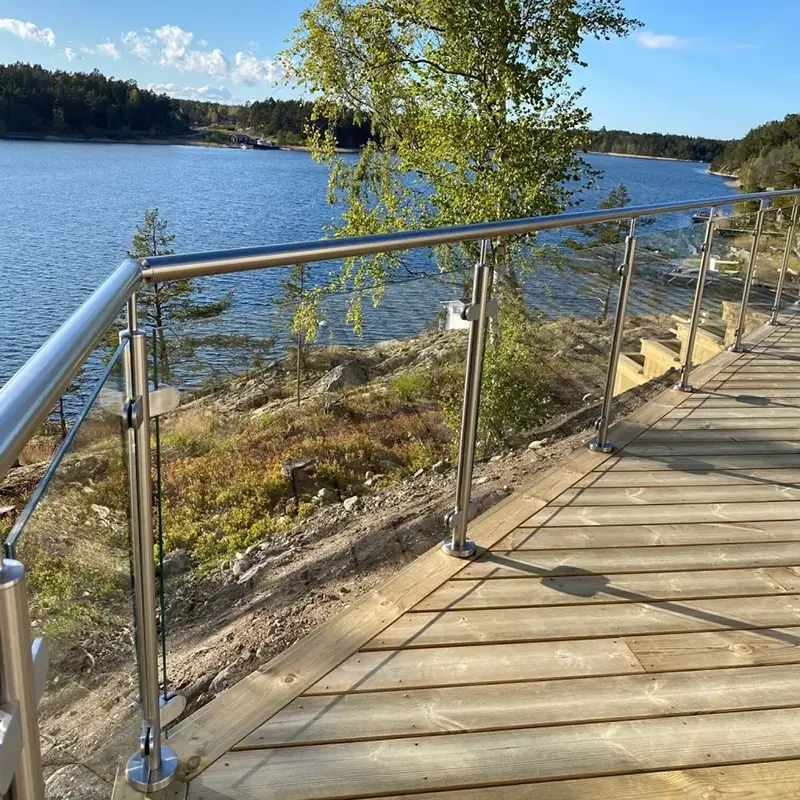

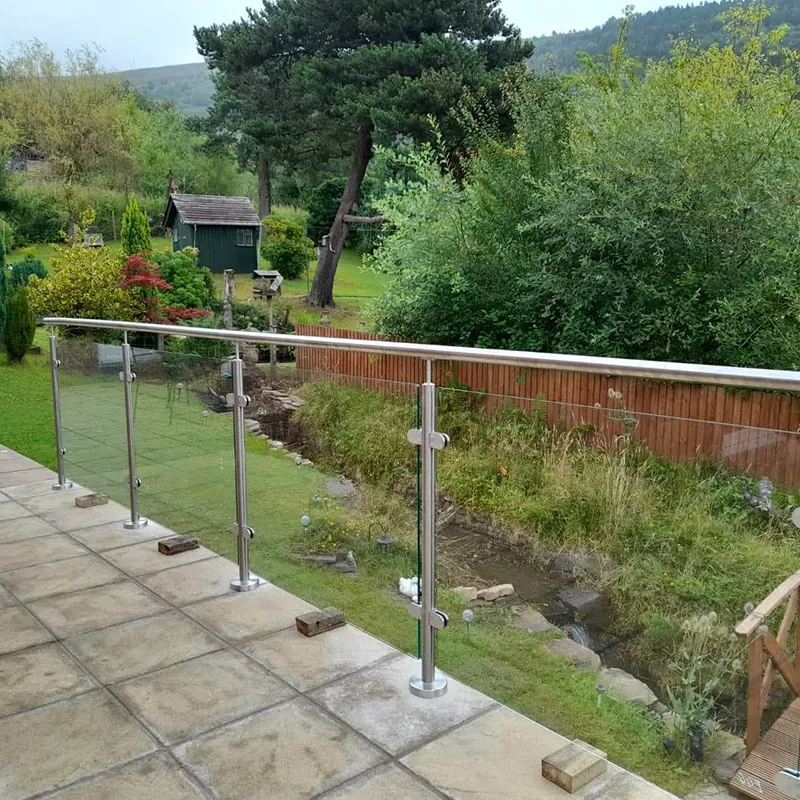

This type of railing is widely used on interior and exterior stairs, balcony edges, deck perimeters, mezzanine floors, corridor barriers, and observation walkways. It suits residential homes, apartment buildings, hotel lobbies, office atriums, shopping centres, and public infrastructure such as airports and transit stations — anywhere architects and owners want safety combined with an unobstructed view.

Compared with traditional wrought-iron or tube-only railings, a stainless steel and glass system is far easier to maintain. Glass panels wipe clean with a damp cloth; stainless steel does not peel, blister, or require repainting. Properly specified stainless steel will not rust even in years of outdoor exposure, making the lifetime maintenance cost significantly lower than painted steel alternatives.

✔ Marine Grade 316 Stainless Steel Resists Corrosion in Coastal Environments

✔ Brushed, Mirror-Polished, or Matte Finish Available to Match Any Aesthetic

✔ Round and Square Post & Rail Profiles for Different Architectural Styles

Stainless Steel Material & Surface Finish Options

1. Stainless Steel Grade Selection

Vionta stocks and fabricates in two primary stainless steel grades so you can match material specification to project environment and budget:

SS304 (1.4301) — The most widely used grade for handrail applications. Contains 18% chromium and 8% nickel, giving good corrosion resistance in most indoor and sheltered outdoor environments. Cost-effective for the majority of residential and commercial projects not exposed to salt air or industrial chemicals.

SS316 (1.4401 / Marine Grade) — Adds 2–3% molybdenum to the alloy, which significantly improves resistance to chloride-induced pitting and crevice corrosion. This is the recommended specification for coastal buildings within approximately 5 km of the ocean, swimming pool surrounds, waterfront decks, and any environment with high humidity or chemical exposure. The additional cost over SS304 is modest relative to the extended service life it provides.

2. Surface Treatment

The surface finish affects both appearance and practical performance. Vionta offers three standard finishes:

Brushed (Satin) — A fine directional grain produced by mechanical polishing. This finish diffuses light rather than reflecting it, which hides minor scratches and fingerprints well in daily use. It is the most popular choice for both residential and commercial interiors because it reads as modern without being ostentatious.

Mirror Polished — A highly reflective, smooth surface achieved through progressive buffing. It gives a premium, high-end appearance and is often specified for hotel lobbies, luxury residences, and architectural feature staircases. Mirror surfaces show fingerprints more readily and require more frequent wiping to maintain their appearance.

Matte (Bead Blasted) — A non-directional, very fine-grained surface with a subdued, industrial character. Increasingly popular in contemporary minimalist interiors and commercial fit-outs where designers want the material to recede rather than stand out.

Matte treatment

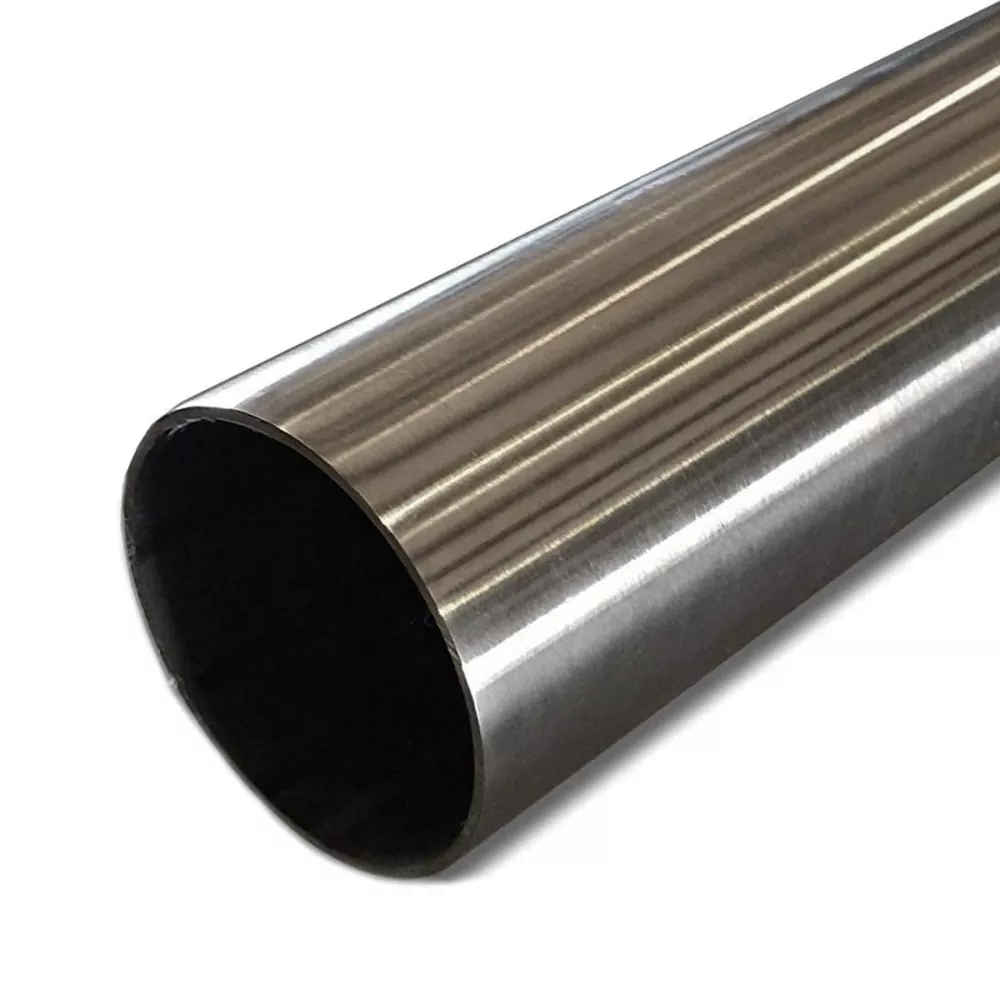

stainless steel round railing tube

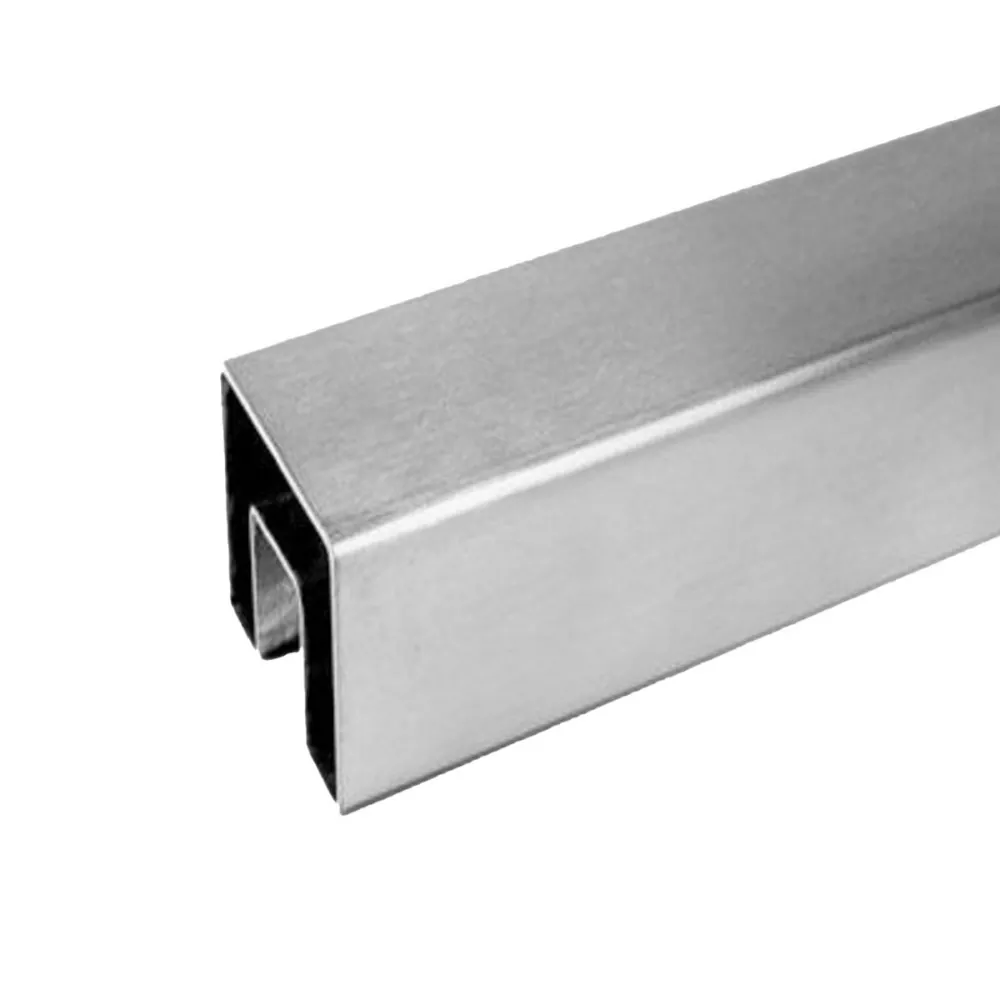

stainless steel round square tube

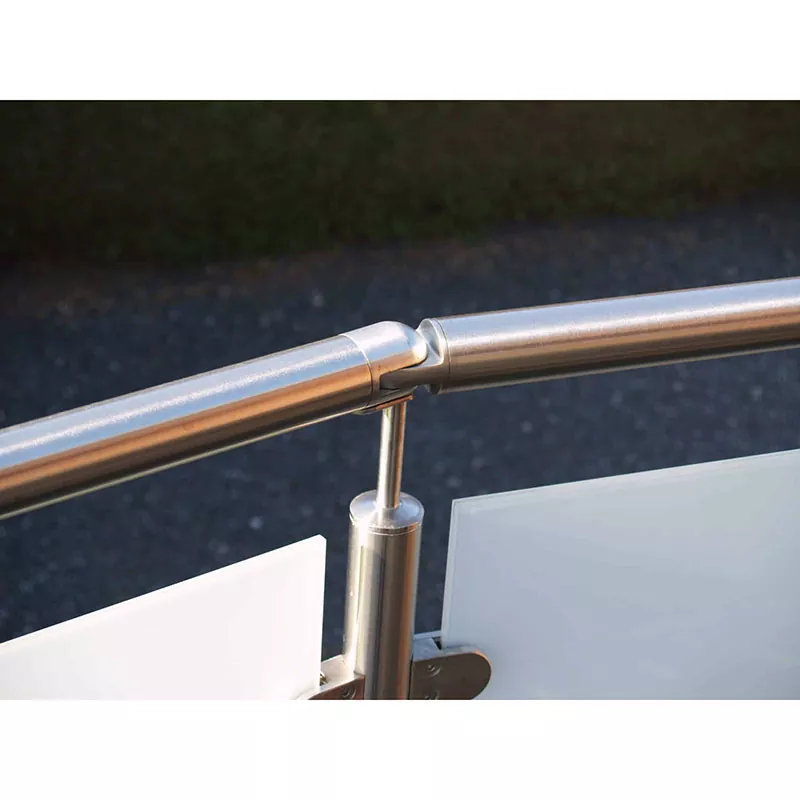

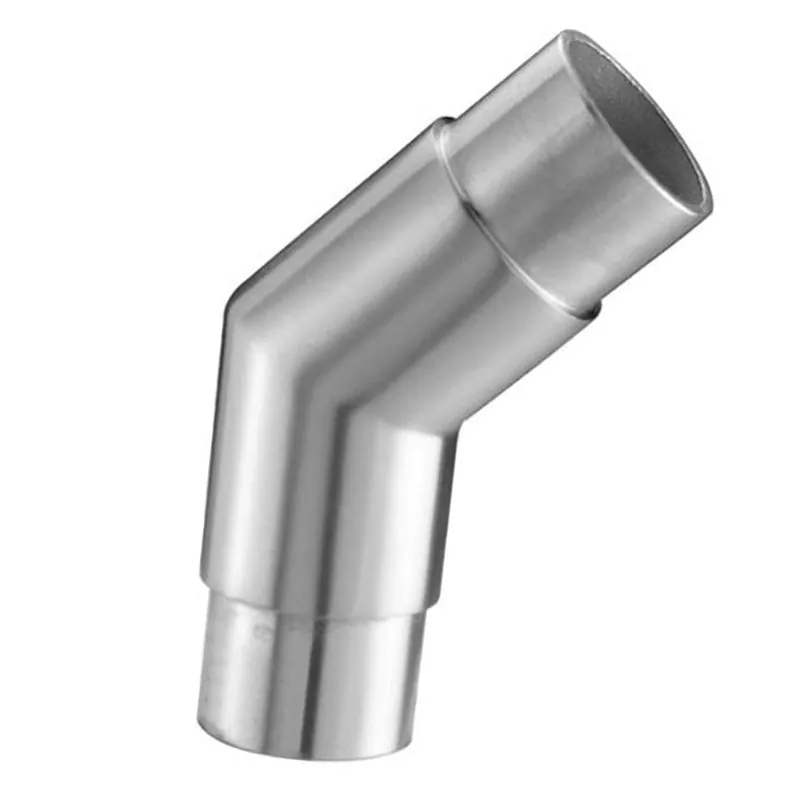

stainless steel fitting connector

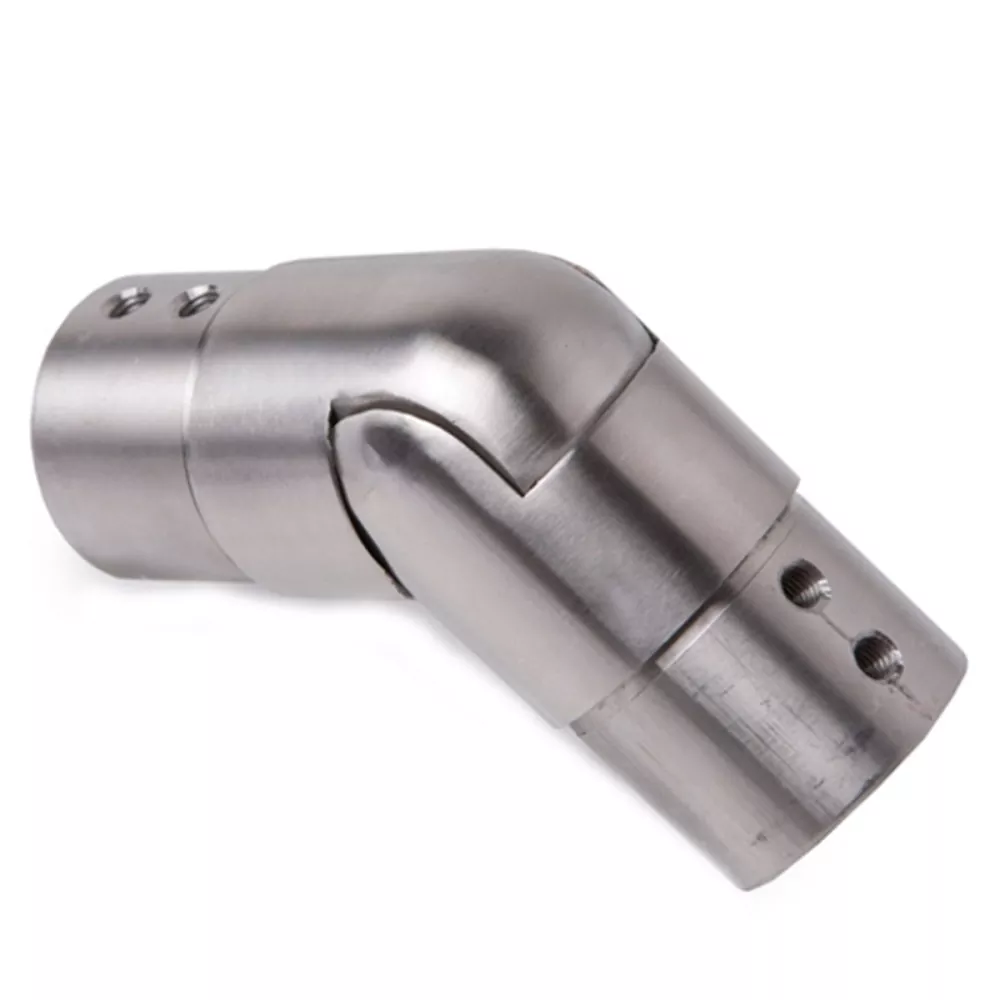

stainless steel adjustable fitting

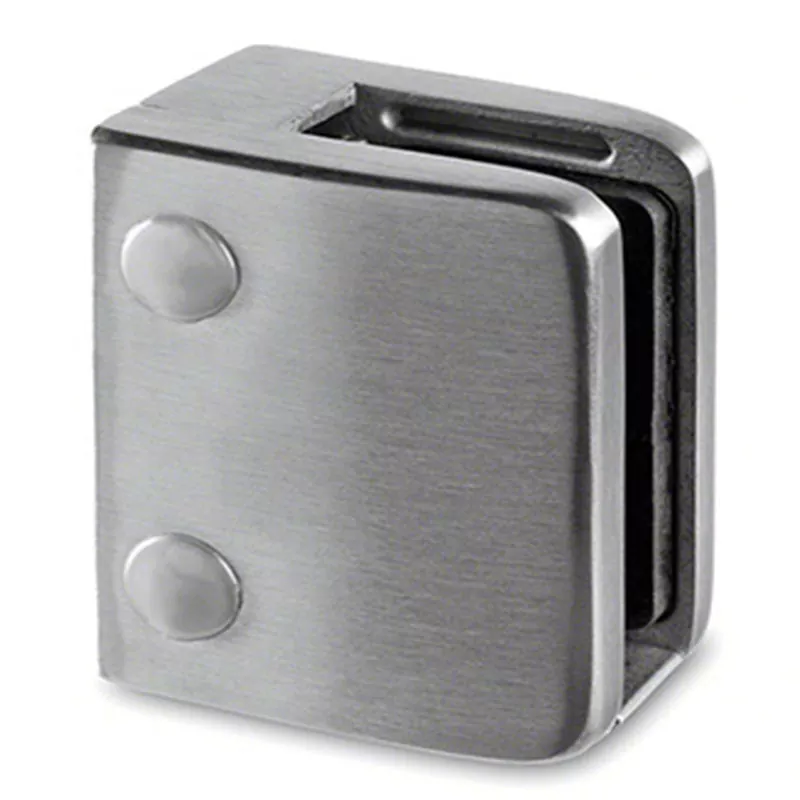

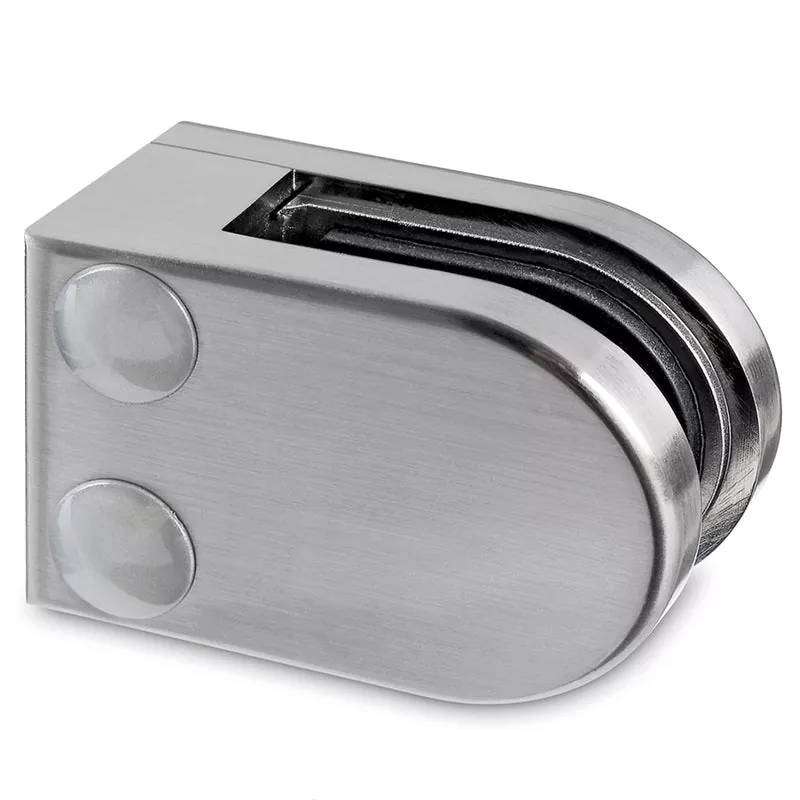

Stainless steel glass clamp

Stainless steel flat surface glass clamp

Safety Glass Specifications

All glass panels supplied by Vionta meet international safety glazing standards. We do not supply standard float glass in any railing application — only processed safety glass that is engineered to remain safe even if it breaks.

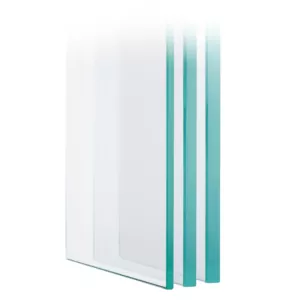

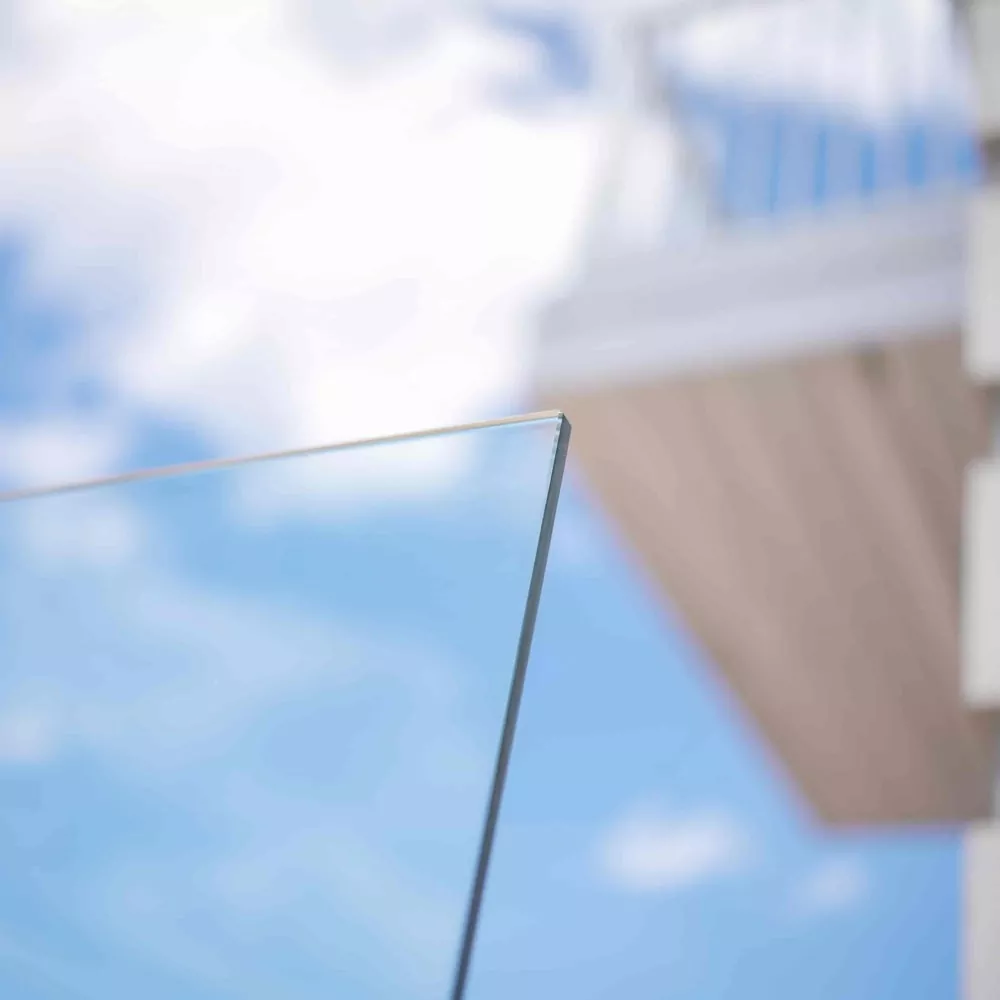

Glass Types

Tempered (Toughened) Glass — Heat-treated to be approximately four times stronger than ordinary glass of the same thickness. When broken by an extraordinary impact, tempered glass shatters into small, blunt-edged granules rather than large sharp shards, substantially reducing the risk of serious laceration. This is the standard choice for most balcony and stair railing applications and complies with safety glazing standards including EN 12150 and AS/NZS 2208.

Laminated Glass — Two or more glass plies bonded together with a PVB (polyvinyl butyral) or SGP (SentryGlas®) interlayer. If broken, the fragments adhere to the interlayer and the panel holds together rather than falling away, providing a higher level of post-breakage containment. Laminated glass is the preferred specification for overhead glazing, high-traffic public spaces, or any location where falling glass fragments would be unacceptable. It also provides a degree of UV filtering and, with an acoustic interlayer, sound attenuation.

Available Glass Thicknesses

8 mm — Suitable for lower-height residential balustrades and interior applications with moderate panel widths (typically up to 1,000 mm unsupported span). Lightest option, which reduces load on fixings and supporting structure.

10 mm — The most commonly specified thickness for residential and light commercial use. Provides a good balance between structural performance, weight, and cost for most standard balcony and stair railing configurations.

12 mm — Recommended for taller panels, wider unsupported spans, high-wind-exposure locations, and commercial or public projects where building codes mandate higher loading capacity. Also the standard thickness for frameless and semi-frameless systems where the glass carries a greater share of the structural load.

Custom glass thicknesses beyond the above — including 15 mm and 19 mm — are available on request for specialist structural applications. Please contact us with your project loading requirements and we will advise the appropriate specification.

Structural Forms and Installation Methods

Vionta offers various installation options to suit different building structures, facilitating design and construction.

Installation Methods:

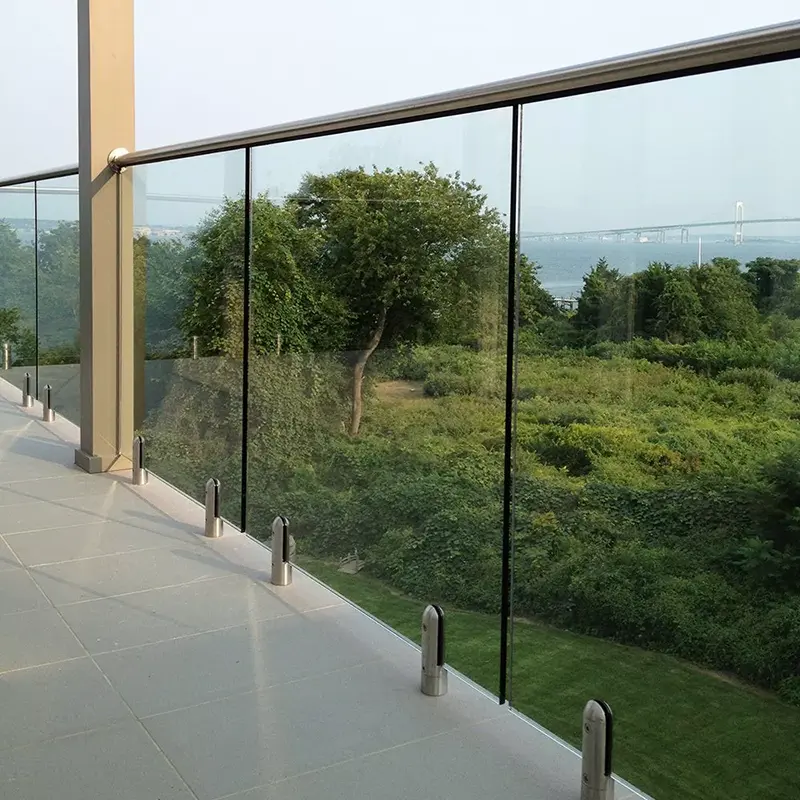

Top Mount

Side Mount

Gutter/Frameless System

Handrail Types:

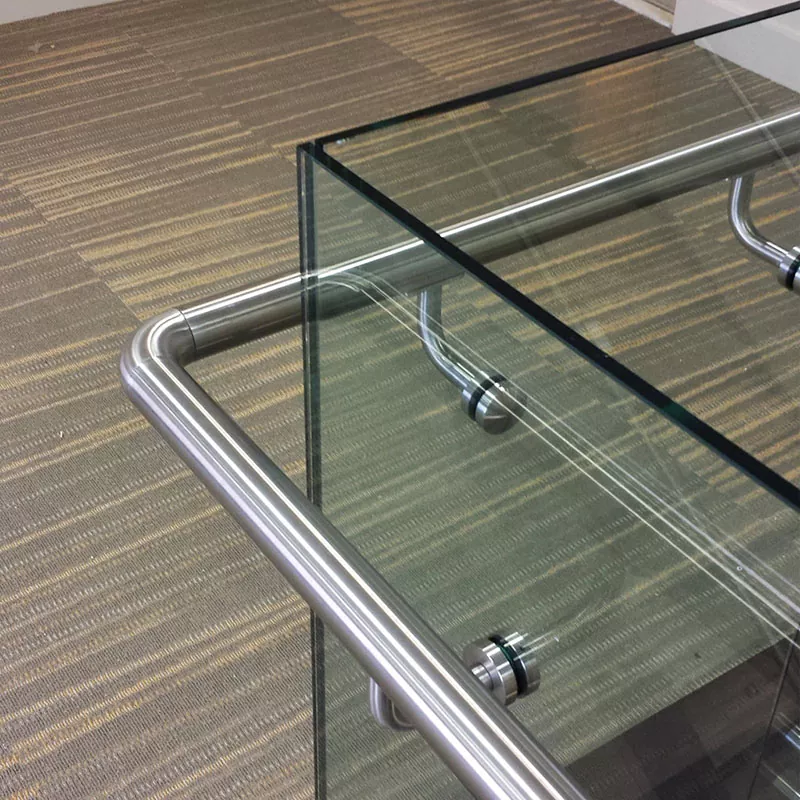

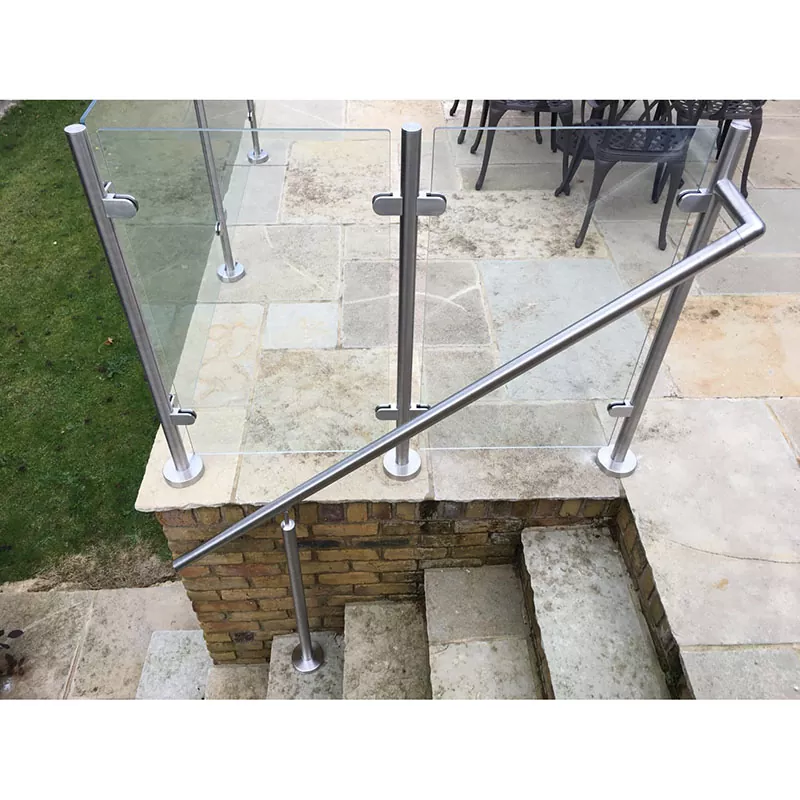

Stainless Steel Round Tube Handrail

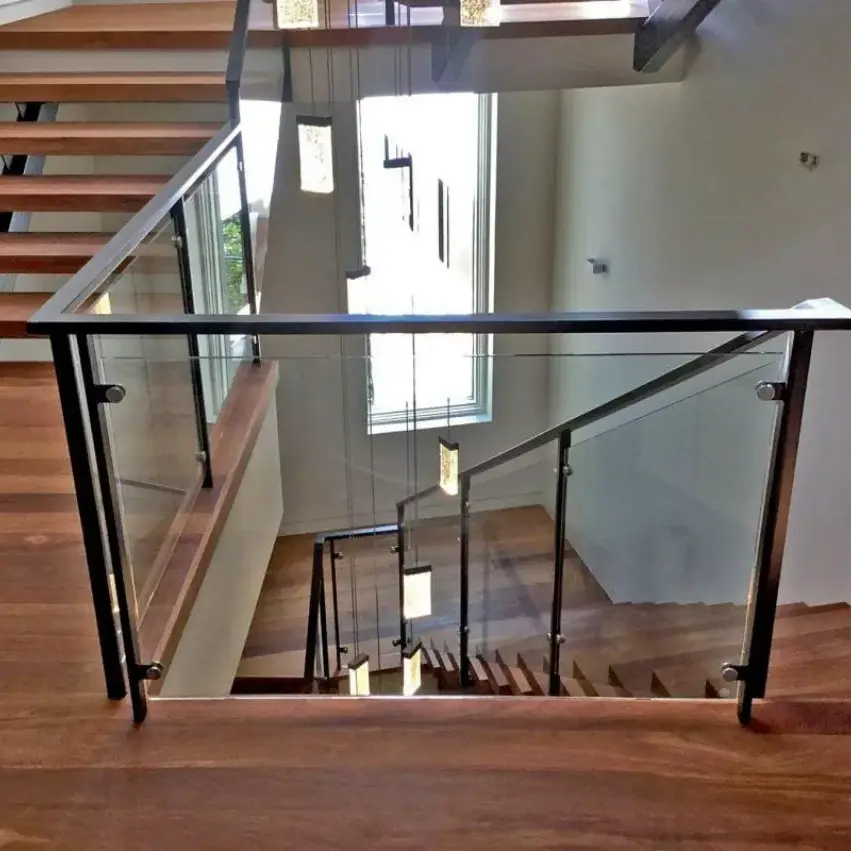

Stainless Steel Square Tube Handrail

Handrail-less Design (Minimalist Style)

The Most Concerning Issue For Consumers

Q1: How to fix the glass? Will there be any safety hazards?

A: The fixed method is safe and reliable. Common methods include:

Stainless steel connecting claw point fixing: allows for slight displacement through ball joint connection, is aesthetically pleasing, and has clear load-bearing capacity.

Glass clamp fixation: clamp from the top or side of the glass, easy to install.

Channel slot embedding: Glass is inserted into the metal slots at the top and bottom, with a continuous appearance.

All fixing methods must undergo structural calculations to ensure that they can withstand the specified loads. The connectors themselves are made of high-strength stainless steel.

Q2: How do you ensure the safety of your Stainless Steel Glass Handrails during international transportation?

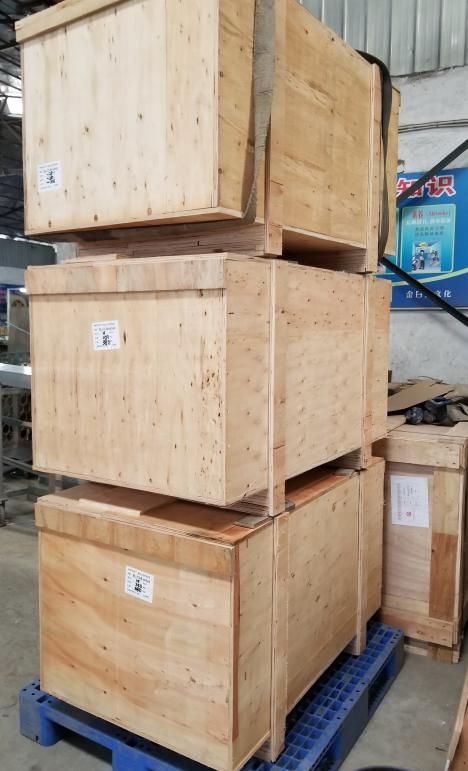

We use export grade packaging specifically designed for long-distance transportation.

Glass panel: Packed in separate wooden case, completely wrapped with thick foam protection. Each Flat noodles is clearly marked "fragile" and "this side up"

Stainless steel parts: Wrapped with bubble wrap, protected in corners, and securely fixed to the tray.

Accessories: Packaged in sealed plastic bags, placed in separate cardboard boxes, and labeled with a clear packing list.

This type of packaging helps prevent damage and makes on-site inspection and installation easier.

Why choose Vionta?

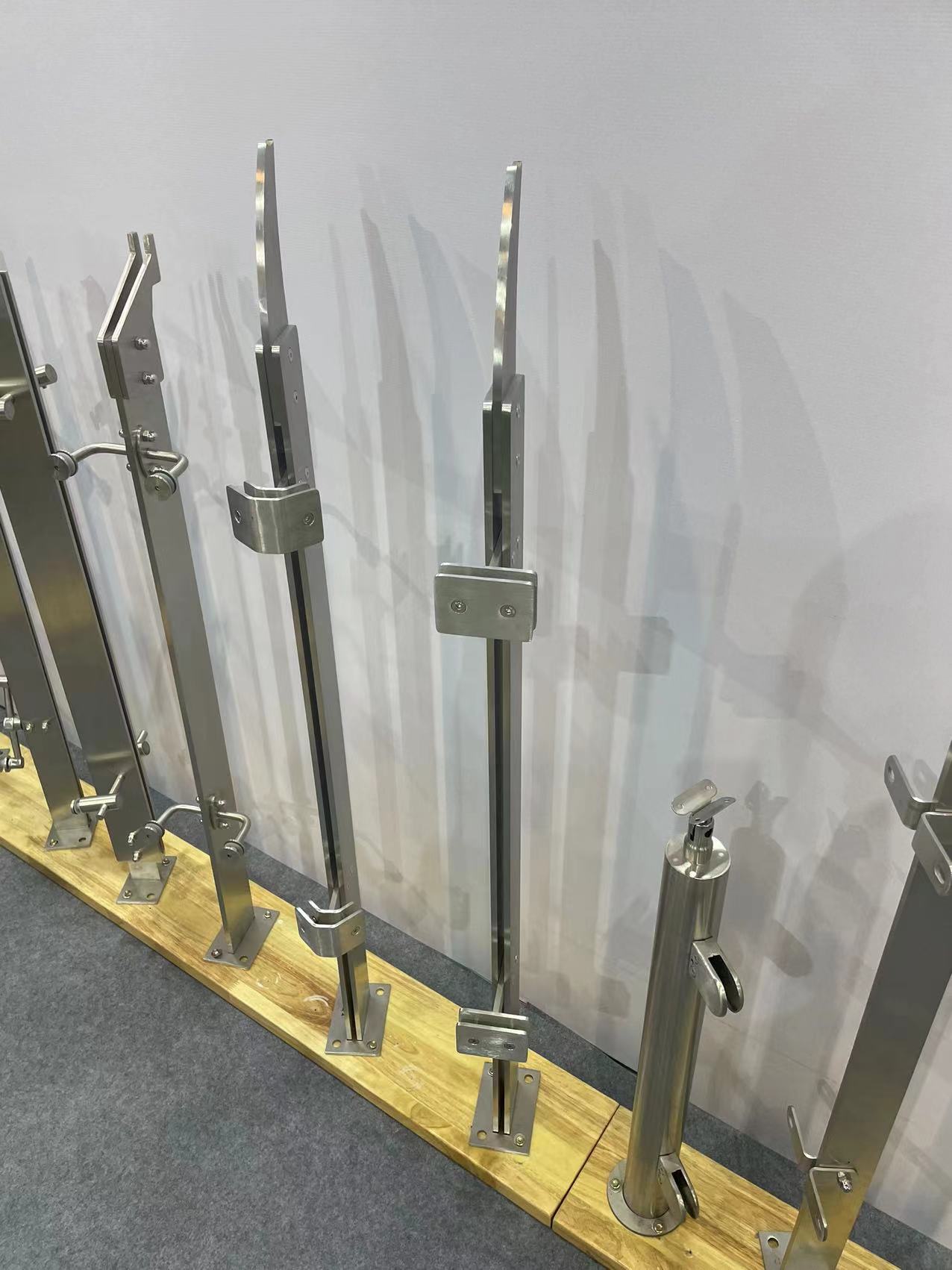

Vionta is a dedicated metal railing manufacturer based in Cixi, Ningbo, China. We design, fabricate, and supply complete Stainless Steel Glass Handrail systems for customers worldwide — from individual project quotes through to large-volume OEM orders. Every component is produced at our own facility, which means tighter quality control, faster lead times, and factory-direct pricing with no middleman margin.

● More competitive factory prices

● More transparent production and quality control processes

● Faster sample and bulk delivery cycles

● More efficient technical and after-sales communication

We invite you to re-examine and define every edge space of your project, starting from a Vionta Stainless Steel Glass Handrail. Make safety the background and scenery the protagonist.
