Stainless Steel Balustrade Rail

Need a complete balustrade system, including posts and infill? See our Stainless Steel Balustrade product line. For the full stainless railing range, see Stainless Steel Railing.

Why Order Rail as a Separate Component?

Not every project needs a full balustrade system ordered as one unit. Common reasons buyers order the rail separately:

• Retrofit / replacement — replacing a damaged or outdated top rail on an existing balustrade without rebuilding the posts and infill
• Matching an existing system — extending or repairing a railing run where posts and infill are already on site, sourced from another supplier, or built in place
• Bulk component procurement — wholesalers and project contractors who manage posts, glass, and infill separately and need rail profile by length

Rail Profiles & Materials

Vionta manufactures balustrade rail in 304 or 316 grade stainless steel, selected for corrosion resistance, load-bearing capacity, and long service life. Columns, handrails, and connecting joints are precision-machined to maintain stability under sustained load or vibration.

• Profile shapes: round tube, square tube, rectangular tube
• Surface finish: brushed, satin, or mirror-polished
• Wall thickness and diameter configurable to project load requirements

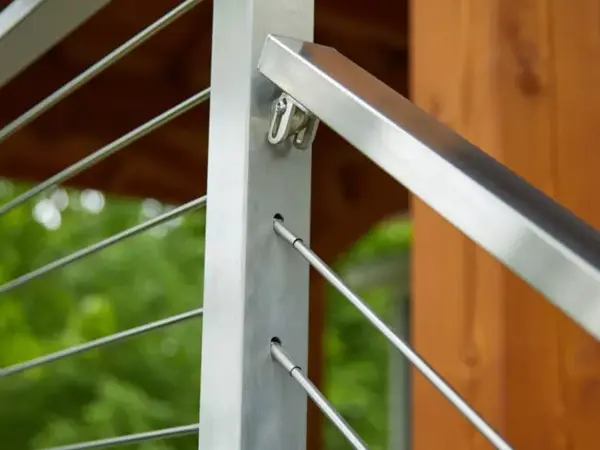

Flat Top Rail：

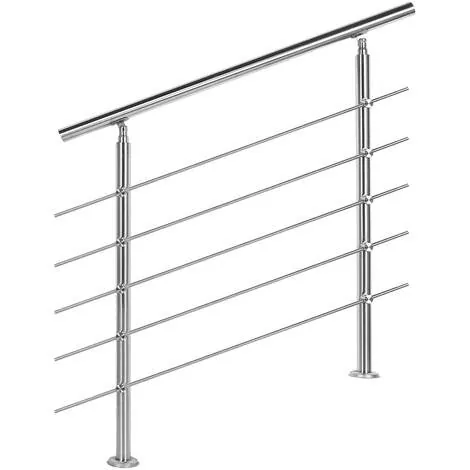

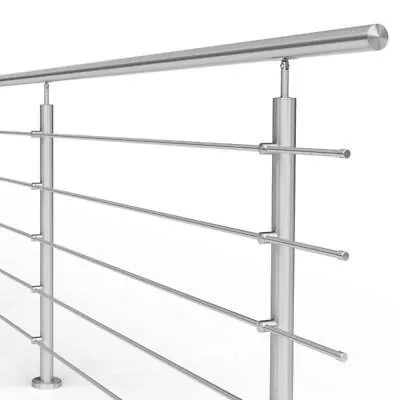

Round Top Rail：

Rail Diameter & Graspability Standards

For stair and ramp handrails specifically (as opposed to purely decorative top rails), the rail's diameter and clearance from the wall need to meet recognized graspability requirements so the rail can be gripped securely in a fall-arrest situation:

• Circular profiles: typically 1¼"–2" (32–51 mm) outside diameter, per IRC R311.7.8 and IBC 1014 guidance
• Non-circular profiles (square/rectangular): perimeter and cross-section dimensions are constrained so the rail remains graspable — generally a perimeter of 4"–6¼" (102–160 mm) with a maximum cross-section dimension of 2¼" (57 mm)
• Wall clearance: a minimum of 1½" (38 mm) between the rail and any wall or surface, for a full hand grip
• Continuous graspability: rail runs should remain continuously graspable along their length, with returns or terminations that don't create a snag point

We can confirm the applicable standard for your project's destination market (IRC, IBC, or AS 1428.1) and configure the profile accordingly before production.

Mounting & Joining Methods

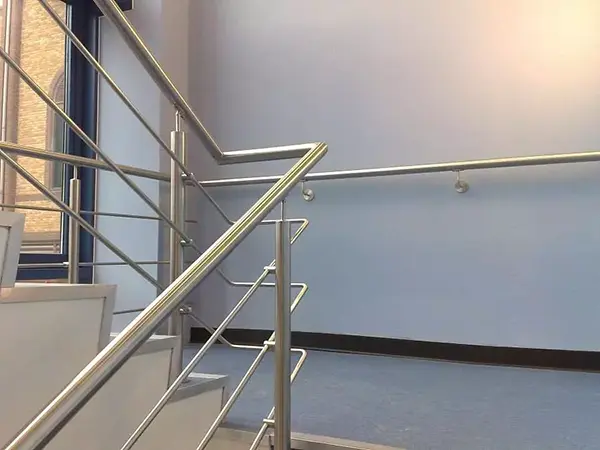

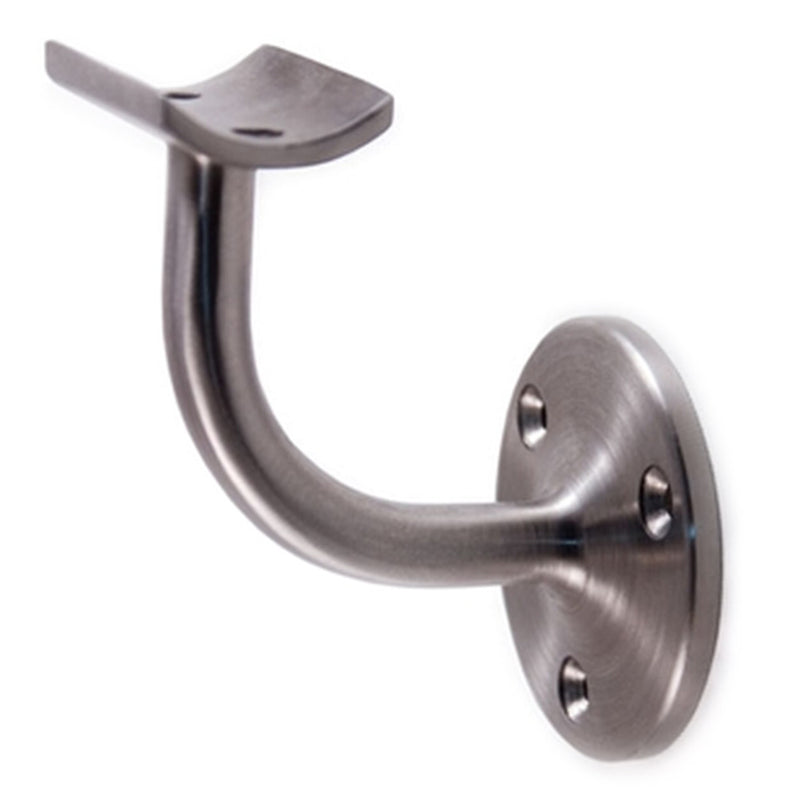

• Wall-mounted brackets — fixed directly to a wall alongside a stair or ramp
• Post-mounted — fixed to balustrade posts via standard or custom brackets

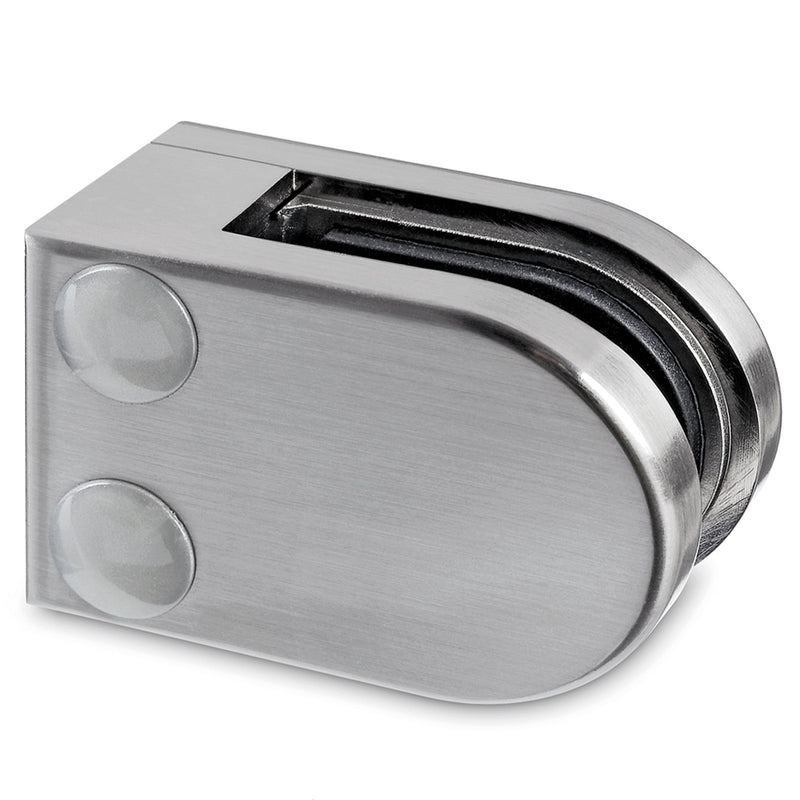

• Frameless glass-clip mounted — rail sits directly on glass infill via clip fittings, no posts required

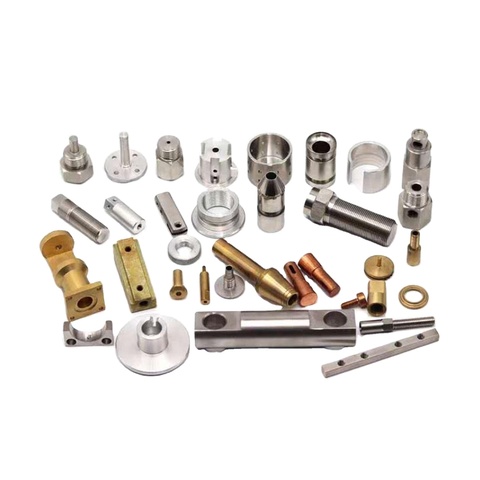

For runs longer than standard stock lengths, rail sections are joined using internal splice connectors rather than visible welds, keeping the finished surface continuous and free of grind marks. End caps, brackets, glass clips, and connectors are supplied as a matched accessory set with each order.

Installation and Maintenance

• Measure first: confirm height and post/bracket spacing against your local code before ordering
• Handle with care: wear gloves during installation to avoid surface scratches
• Secure all fixings: tighten every screw and connector fully — no movement should be detectable once installed
• Clean regularly: wipe with a soft cloth and neutral detergent; avoid strong acid or alkaline cleaners

A detailed installation guide is available with step-by-step guidance for on-site fitting.

Applicable Scenarios

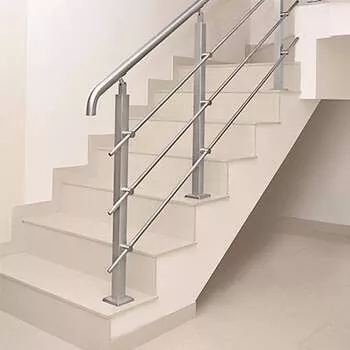

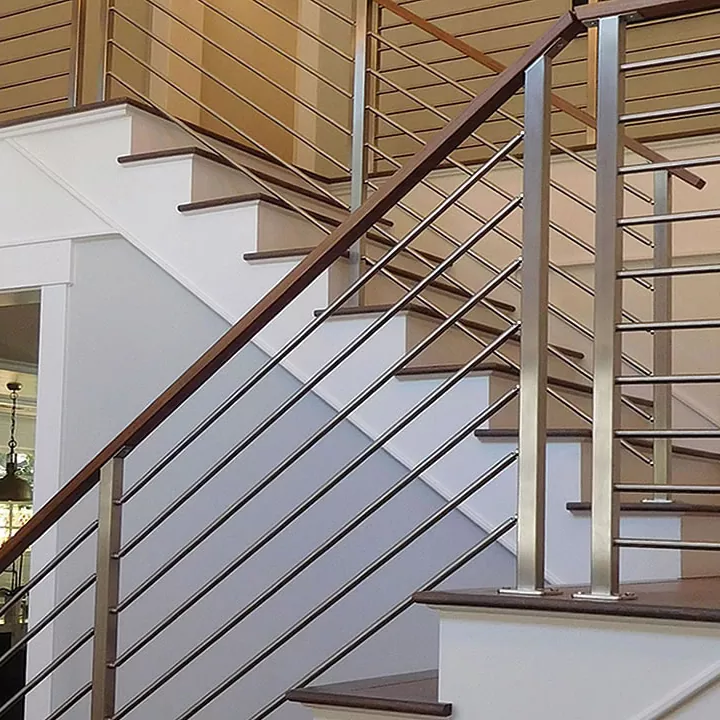

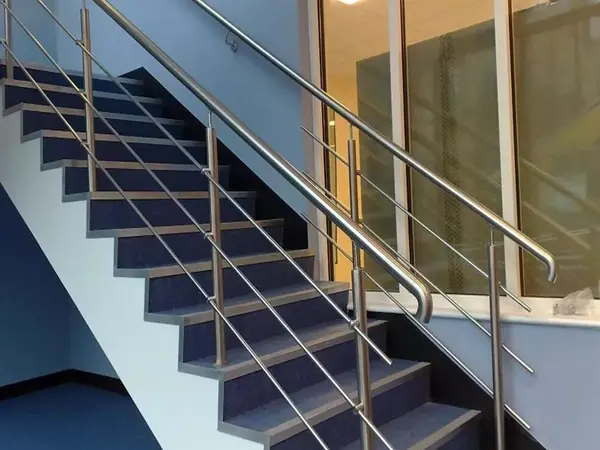

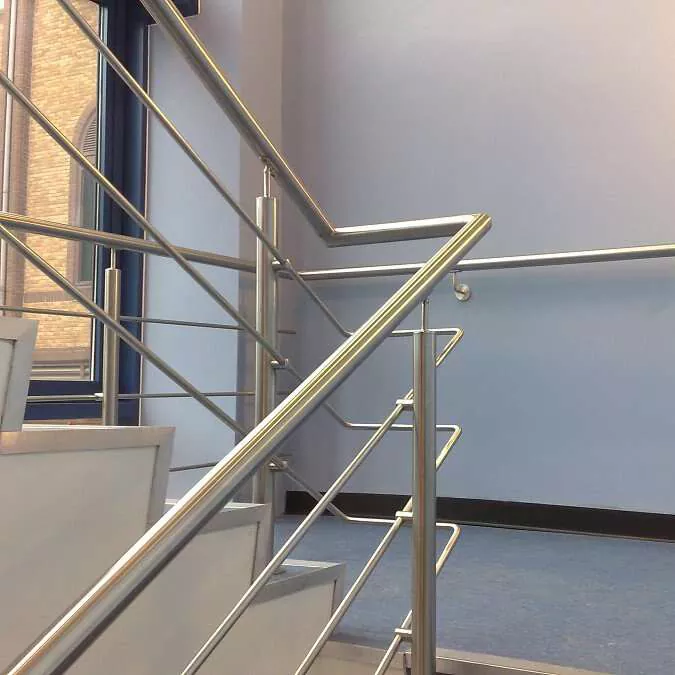

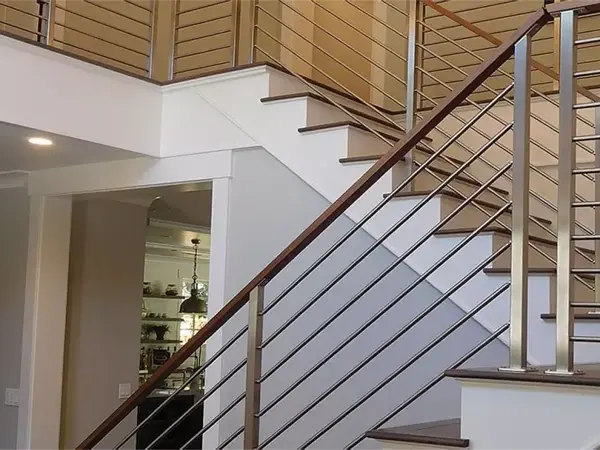

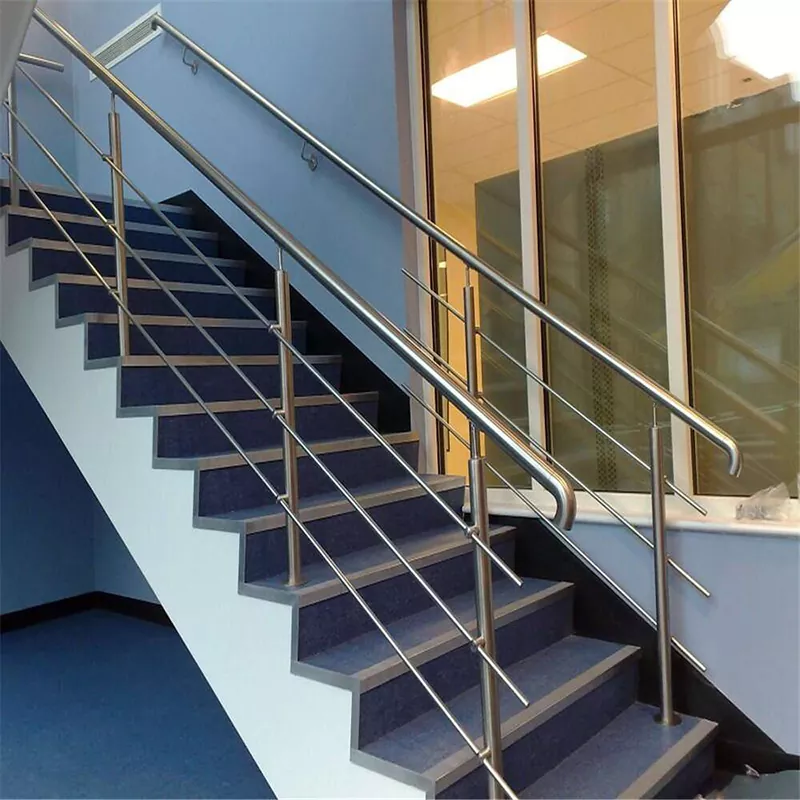

• Indoor stairs and corridors

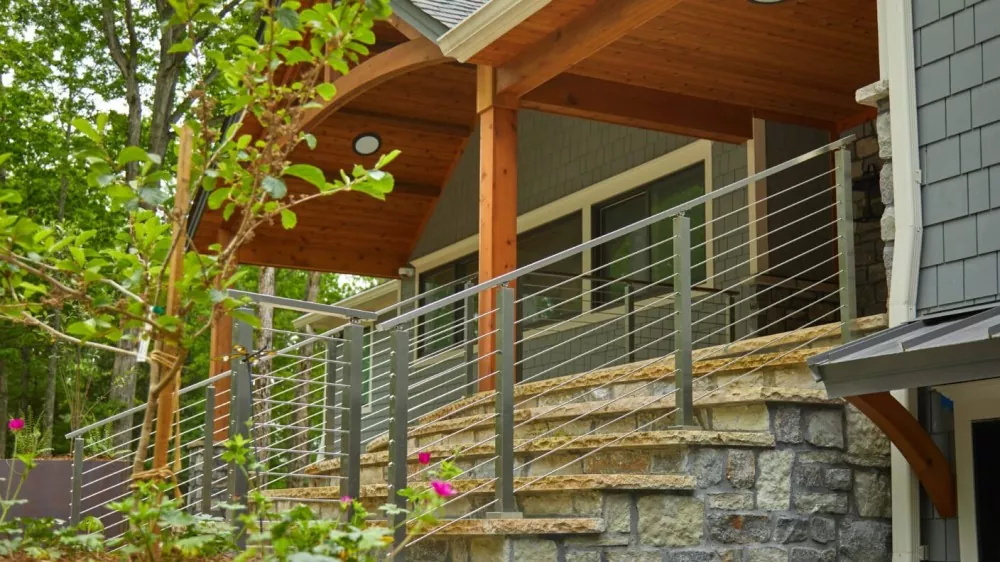

• Outdoor balconies and terraces
• Shopping malls, hotels, and office buildings
• Stations and other public areas

Frequently Asked Questions

How does stainless steel handrail compare to wood or iron?

Stainless steel is more corrosion-resistant and durable than wood or iron, holds a modern appearance over time, and does not require repainting or sealing.

Can stainless steel balustrade rail be used outdoors?

Yes. 316-grade stainless steel is recommended for outdoor and coastal environments, including humid, salt-spray exposure near the sea.

Do you support custom rail sizes or OEM/ODM production?

Yes. Custom rail diameters, lengths, and finishes can be produced from drawings or samples under OEM/ODM arrangements.

What is the typical lead time for a bulk rail order?

Generally 15 to 30 days, depending on order volume and the level of customization required.

Why Choose Vionta?

Vionta has supplied stainless steel balustrade rail and railing components to global customers for many years, with consistent attention to fabrication detail:

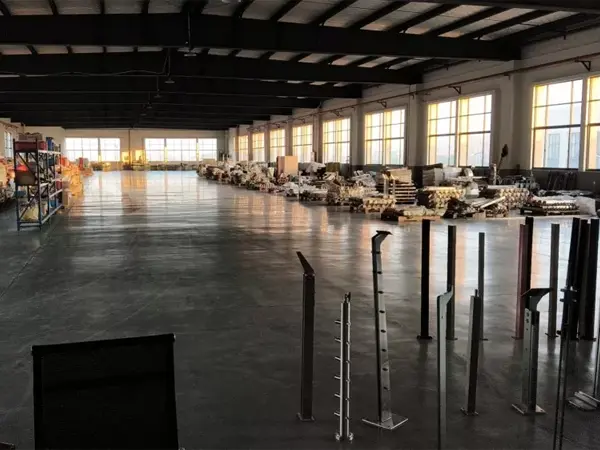

1. Advanced equipment and established production process
2. ISO-certified process controls
3. Strict quality inspection before every shipment
4. Reliable after-sales and export support

Whether you need rail to complete an existing balustrade, match a current system, or supply a bulk project, Vionta can provide a configuration that meets your structural and compliance requirements.

Contact Vionta for a customized quotation. We look forward to working with you.
