What Is a Glass Railing System?
A glass railing system is a modern safety barrier built around tempered or laminated glass panels instead of traditional wooden balusters or metal bars. The result is an open, unobstructed view combined with solid structural protection — perfect for balconies, staircases, pool decks, terraces, and commercial interiors.
At Vionta Metal, our glass railing products are engineered and manufactured at our China factory using aircraft-grade aluminum profiles, stainless steel hardware, and toughened safety glass. Every unit ships with all mounting brackets, base channels, and fasteners included, making installation straightforward for contractors and builders worldwide.
Why glass railing? Glass railing adds perceived space, floods interiors with natural light, and raises property value. It meets IBC, AS/NZS, and EU safety standards when installed correctly — and Vionta Metal's systems are pre-engineered to those specifications.
Glass Railing Product Types – Full Range from Vionta Metal Factory
Not every project needs the same system. Below is our full product category overview. Each type is available in standard sizes and fully customizable dimensions direct from our China manufacturing facility.

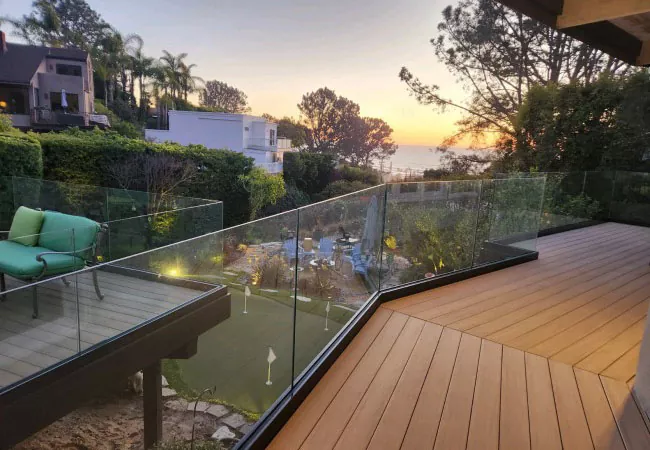

Frameless Glass Railing
Zero visible frame. Glass panels are secured by low-profile base shoes or side-mount standoffs. The cleanest look available.

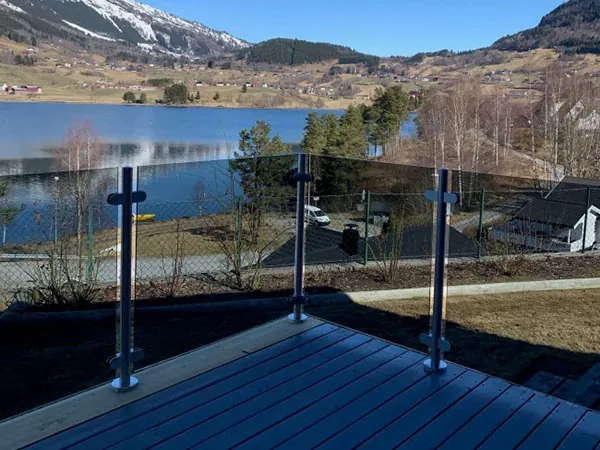

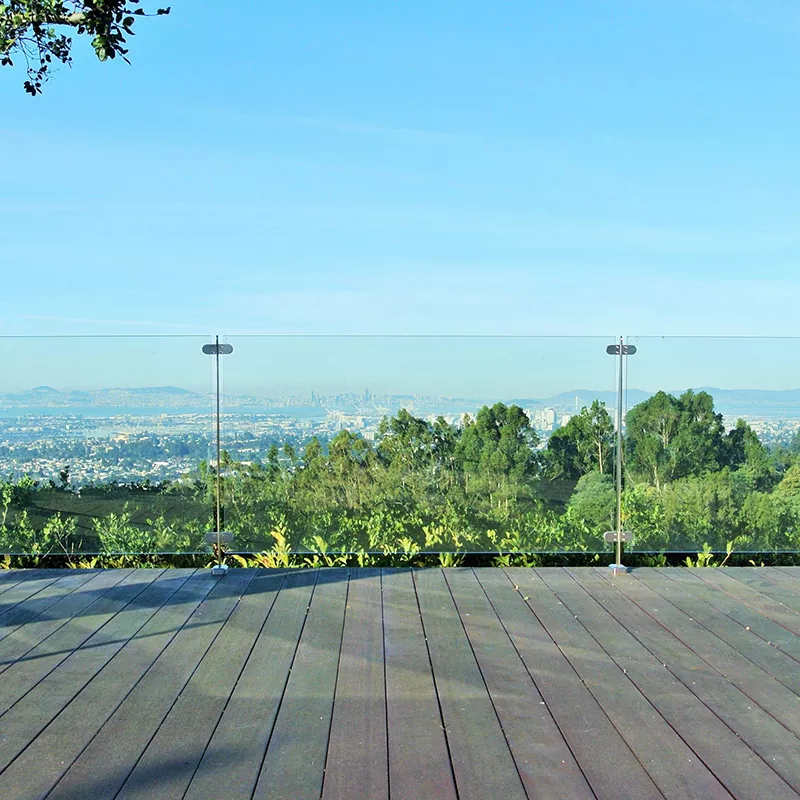

Semi-Frameless Glass Railing
Aluminum or stainless steel posts at panel joints only — no top or bottom rail visible. A balance between frameless aesthetics and structural simplicity.

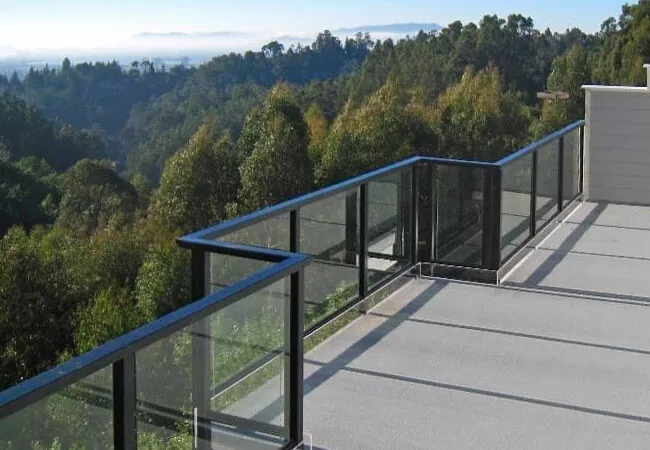

Aluminum Framed Glass Railing
Full aluminum frame surrounds each glass panel. Ideal for high-traffic commercial projects where durability is the top priority.

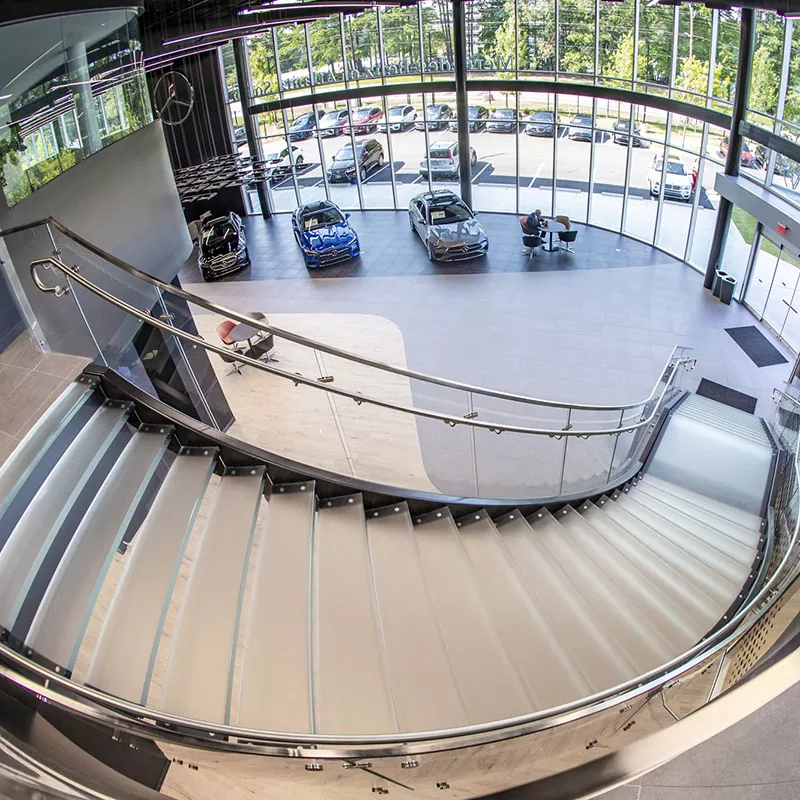

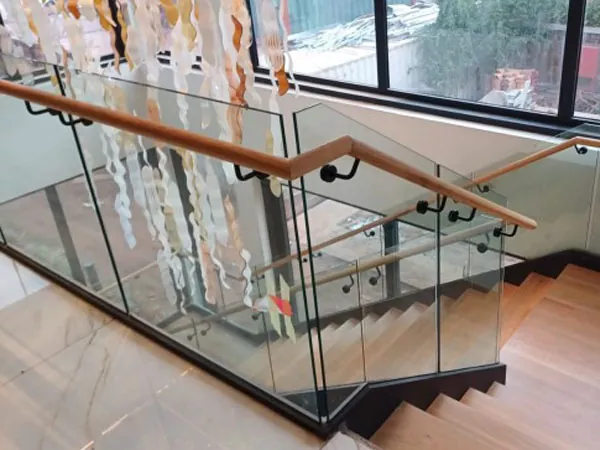

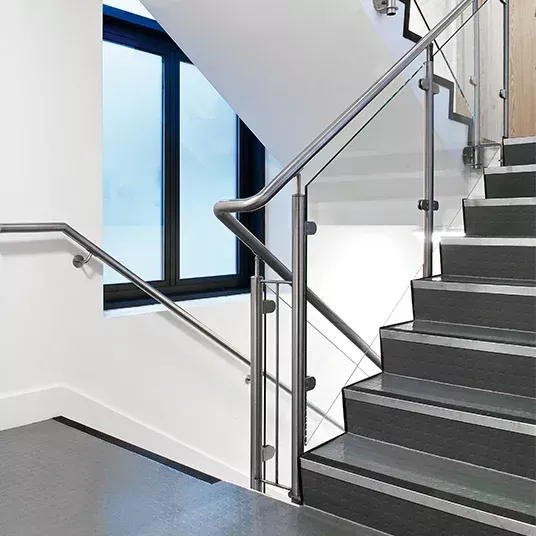

Stair Glass Railing
Angled systems designed specifically for staircase applications. Panels rake to follow the stair pitch seamlessly.

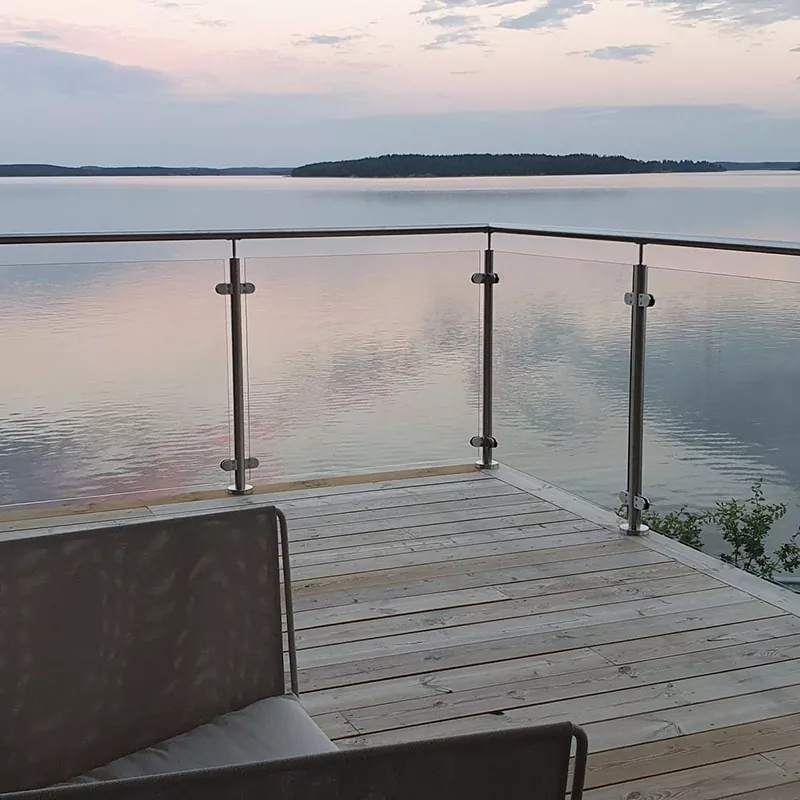

Balcony Glass Railing
Weather-resistant profiles with marine-grade hardware. Pre-drilled for balcony edge mounting on concrete or timber decks.
Pool Glass Railing
Fully sealed against moisture and chlorine exposure. Meets pool fencing safety height requirements in most markets.
Glass Railing – Standard Specifications
The table below covers the core specification range available from Vionta Metal's China factory. Custom dimensions, glass tints, powder coat colors, and hardware finishes are available on request for both small and large orders.
| Specification Item | Standard Options | Custom Range Available |
| Glass Type | 10mm / 12mm Tempered; 10+10 Laminated | 8mm – 19mm, tinted, frosted, low-iron |
| Frame Material | 6063-T5 Aluminum Alloy | 304 / 316 Stainless Steel posts |
| Panel Height | 900mm / 1000mm / 1100mm | 700mm – 1500mm |
| Panel Width | 600mm – 1200mm per panel | Up to 1800mm per panel |
| Surface Finish | Anodized Silver, Matte Black, Powder Coat White | RAL custom powder coat, brushed, champagne |
| Top Rail | Flat bar / Round tube / No top rail (frameless) | Wood capping, curved profiles |
| Mounting Type | Base shoe (floor mount), Side mount standoffs | Fascia mount, spigot post, core-drilled |
| Wind Load Rating | Up to 0.6 kPa (standard residential) | Up to 1.2 kPa (engineered commercial) |
| Standard Lead Time | 15–20 working days | Expedited available on request |
| MOQ | 50 linear meters for standard items | Sample orders accepted for evaluation |
Glass Panel Options – What You Should Know Before Ordering
The glass itself is the most visible part of any railing system. Choosing the right type affects safety, appearance, and long-term maintenance. Here is a plain-language breakdown of the main glass options Vionta Metal offers:
| Glass Type | How It Works | Best For | Thickness |
| Tempered Safety Glass | Heat-treated to be 4× stronger than standard glass. Shatters into small blunt pieces if broken. | Residential railings, indoor staircases, standard balconies | 10mm or 12mm |
| Laminated Safety Glass | Two glass layers bonded with a PVB interlayer. Stays in one piece even when broken. | Overhead applications, public spaces, high-security requirements | 10+10mm (most common) |
| Low-Iron Glass | Ultra-clear with no green tint. Up to 91% light transmission. | High-end residential, frameless systems where clarity matters most | 10mm / 12mm |
| Tinted / Bronze / Grey | Color added during glass production for a uniform tint. | Privacy screening, sun reduction, design aesthetics | 10mm / 12mm |
| Frosted / Sandblasted | Surface etched for partial opacity. | Bathroom terraces, privacy partitions | 10mm / 12mm |
Aluminum Profiles and Hardware – Vionta Metal Manufacturing Advantage
What separates a good glass railing from a great one is the quality of the aluminum hardware. Vionta Metal operates its own aluminum extrusion line in China. This means we control profile tolerances, alloy selection, and surface treatment in-house — not through a third party.
Our Standard Aluminum Alloy: 6063-T5
6063-T5 aluminum is the industry benchmark for architectural profiles. It extrudes cleanly into the tight tolerances railing hardware demands, anodizes beautifully, and resists corrosion in coastal environments without extra treatment. All Vionta Metal aluminum railing profiles are produced from verified 6063-T5 billets with mill test certificates available on request.
Surface Treatment Options
- Anodizing: 15–25 micron anodic layer for corrosion resistance. Available in silver, champagne, black, and bronze.
- Powder Coating: Thermosetting polyester powder in any RAL color. 60–80 micron dry film thickness. Suitable for outdoor use.
- Mill Finish: Uncoated raw aluminum — typically used when the end-user will apply their own finish on-site.
Stainless Steel Hardware Options
Post spigots, standoffs, and fasteners are available in 304 stainless steel (standard) or 316 marine-grade stainless (recommended for coastal and pool environments). All stainless hardware is passivated after machining to extend surface life.
Frequently Asked Questions About Glass Railing
How thick does the glass need to be for a glass railing?
For most residential balcony and stair railings, 10mm tempered glass is the minimum — and 12mm is the standard recommendation for anything over 1000mm in height or in an exposed outdoor location. Commercial projects and high-wind areas typically require 12mm tempered or 10+10mm laminated glass. Vionta Metal can provide engineering calculations and glass certification documents for any project that requires local authority approval.
Is glass railing safe for children and pets?
Yes — tempered safety glass meets international impact standards and, if broken, shatters into small blunt-edged fragments rather than sharp shards. For extra peace of mind, laminated glass panels stay intact even after impact, which is why many architects specify laminated glass in family homes and schools. All Vionta Metal glass panels are tested and certified before shipment.
What is the difference between frameless and semi-frameless glass railing?
Frameless glass railing uses a continuous aluminum base shoe channel at the bottom — and sometimes side-mount standoffs — with no visible frame around the glass. The result is near-invisible hardware. Semi-frameless systems place aluminum or stainless steel posts at the panel joints, so you see a vertical post every 1000–1200mm but no horizontal top or bottom rail framing. Semi-frameless is easier to install and costs less than fully frameless, while still giving a modern, open look.
Can I order glass railing directly from the Vionta Metal factory in China?
Yes. Vionta Metal supplies builders, importers, and project developers directly from our China manufacturing facility. We handle all export packaging, shipping documents (commercial invoice, packing list, certificate of origin), and can arrange FOB, CIF, or DDP shipping terms depending on your preference. Sample orders are available before you commit to a full container.
What building codes does glass railing need to meet?
Requirements vary by country and application. In the US, the International Building Code (IBC) sets minimum railing heights at 42 inches (1067mm) for commercial use and 36 inches (914mm) for residential. In Australia, NCC/BCA requires balustrade heights of 1000mm. In the UK and EU, EN13200 and local Building Regulations apply. Vionta Metal can supply systems engineered and tested to meet specific regional codes — please share your local requirements when you inquire.
Why Choose Vionta Metal as Your Glass Railing Supplier from China
There are hundreds of railing manufacturers in China. Here is what makes Vionta Metal the right choice for importers, distributors, and project developers looking for a long-term manufacturing partner:
Vertically Integrated Factory
We extrude aluminum, cut glass, apply surface treatments, and assemble components under one roof. No middlemen — direct factory pricing and full quality control.
Full Custom Capability
Custom profile shapes, RAL powder coat colors, glass tints, hardware finishes, and branded packaging for OEM / private label orders.
Certified Quality
ISO 9001 quality management, CE marking available for EU exports, test reports for glass panels, and mill certificates for aluminum profiles.
Export-Ready Packaging
Glass panels individually wrapped and foam-protected. Aluminum profiles bundled and crated. No concealed damage on arrival — or we make it right.
Global Shipping Experience
We have shipped to the US, Canada, UK, Australia, Germany, UAE, and 15+ other countries. Our export team handles all documentation accurately.
Responsive Technical Support
English-speaking sales and technical team available to help with product selection, load calculations, installation questions, and after-sales issues.
Get a Free Quote for Your Glass Railing Project
Tell us your project size, glass type preference, and destination country — and Vionta Metal will send you a factory-direct price within 24 hours. No obligation, no sales pressure.
Sample orders accepted Reply within 24 hours FOB & CIF pricing available OEM & Custom orders welcome
