Opening Glass Roof Pergola

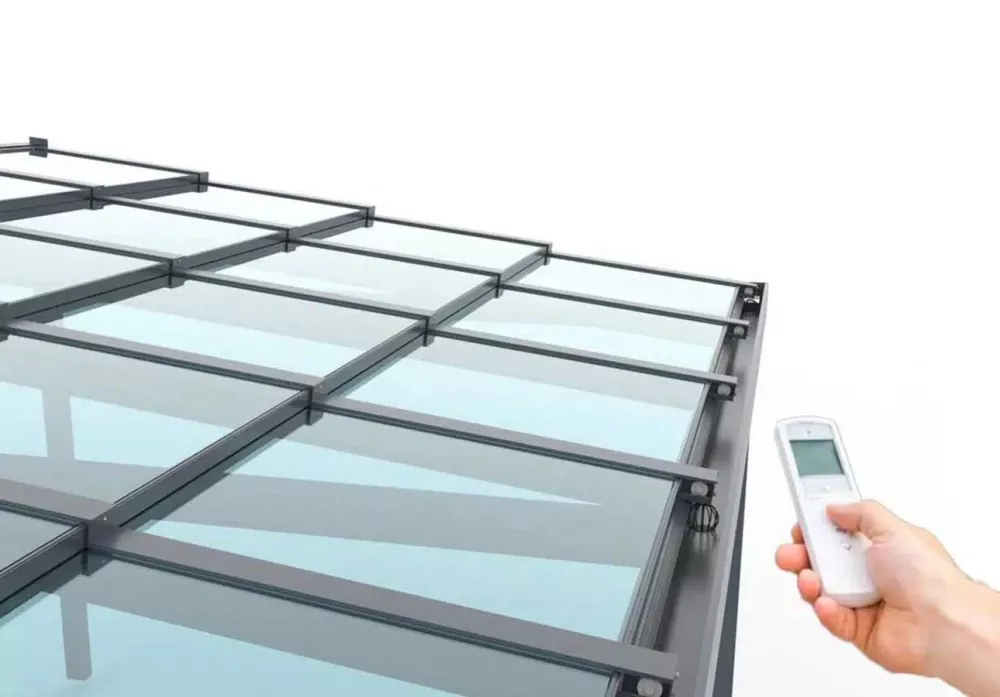

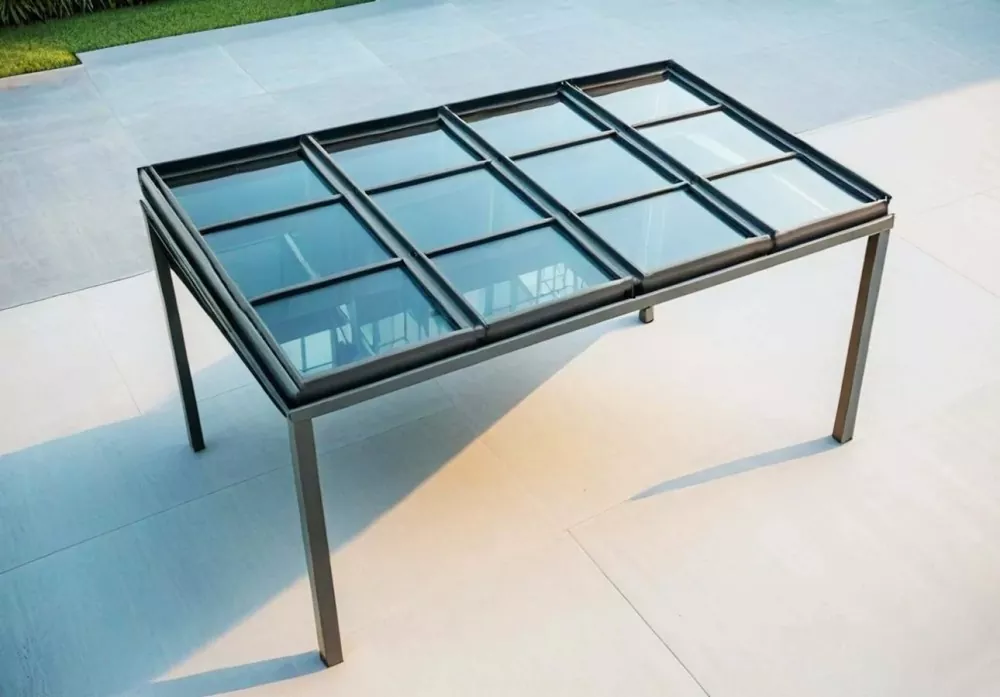

The Vionta Opening Glass Roof Pergola adopts an advanced retractable glass ceiling system, perfectly combining the ventilation and lighting advantages of traditional pavilions with the sealing and protection performance of modern buildings. Unlike traditional fixed ceiling or louver designs, our Opening Glass Roof Pergola is equipped with high-strength tempered glass panels. Through a precise electric sliding mechanism, the ceiling can be fully opened, partially opened, or fully closed, allowing users to freely control the indoor environment.

Parameters And Technical Specifications

Core application scenarios of Opening Glass Roof Pergola

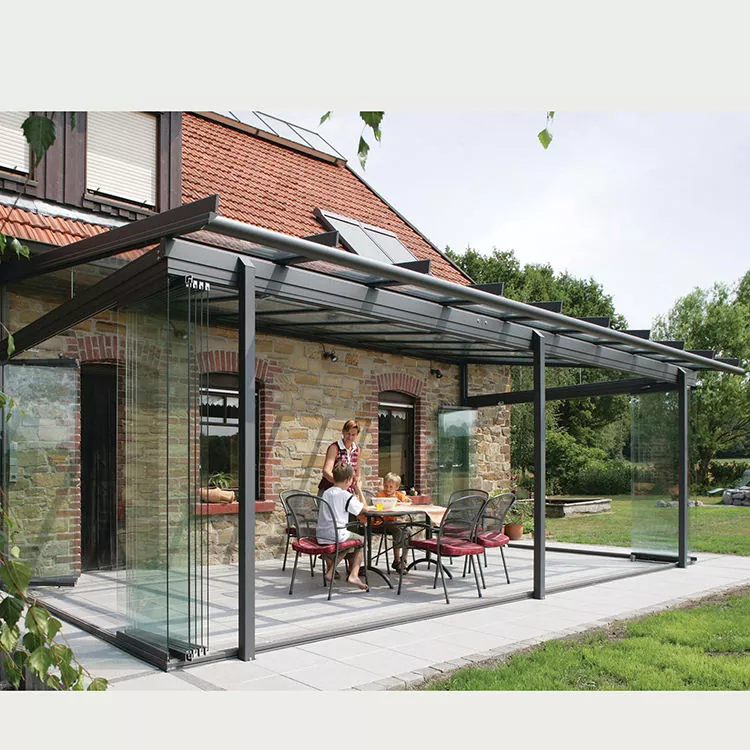

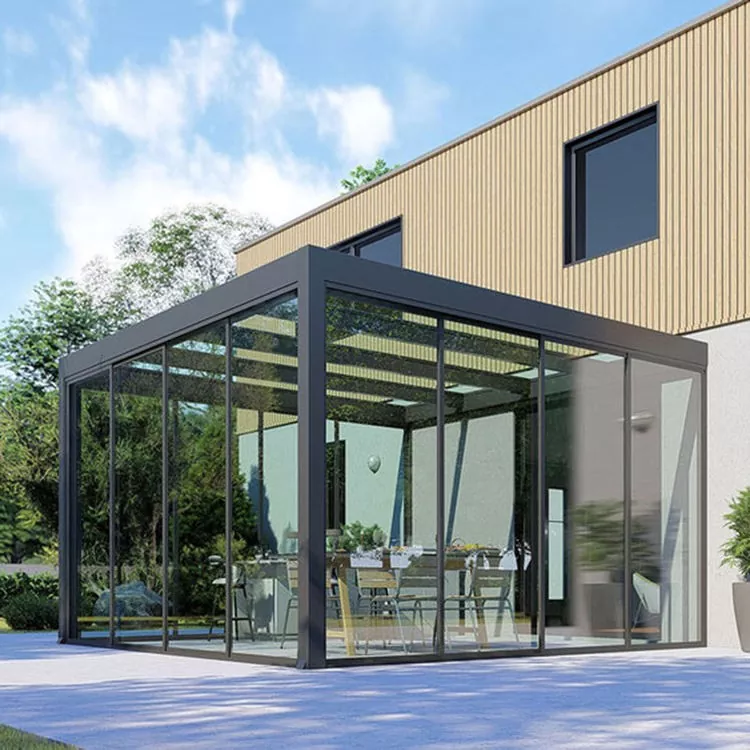

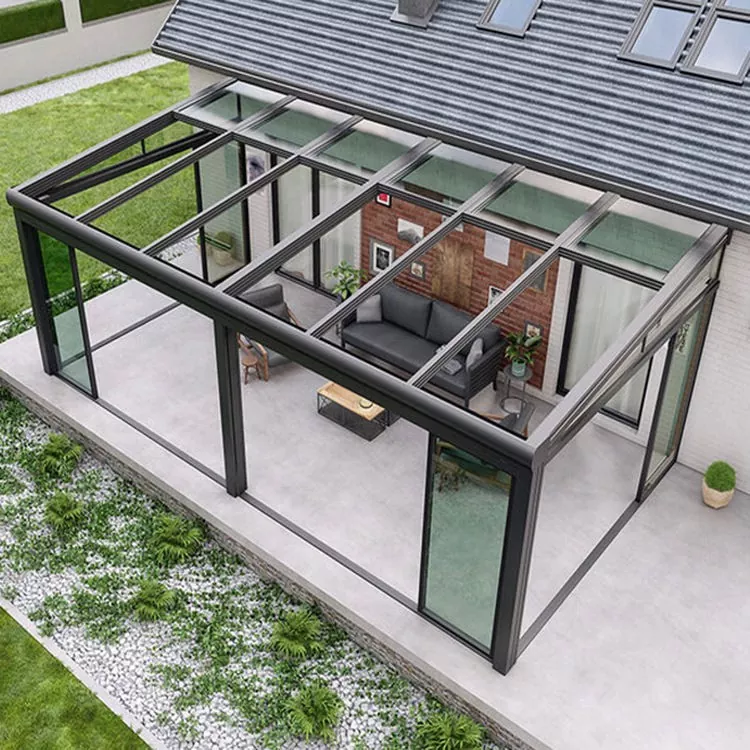

1. Residential courtyards and terraces

Creating a more transparent and comfortable outdoor leisure space:

● Sunshine room alternative plan

● Family gathering and barbecue area

● Outdoor living room

The transparent glass roof provides indoor level lighting experience.

2. Outdoor terrace in the restaurant

Excellent solution for outdoor seating in restaurants and cafes:

● Reception of guests 24/7

● Avoid loss of passenger flow on rainy days

● Can create a high-end dining atmosphere

Transparent roofs greatly enhance visual appeal.

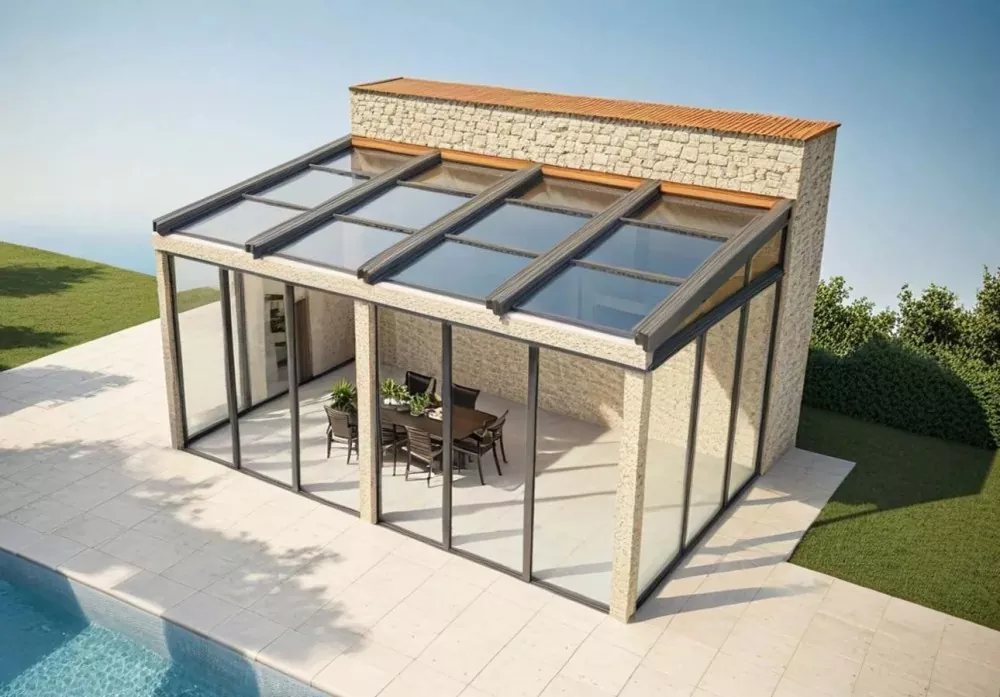

3. Outdoor areas of hotels and resorts

Applicable to:

● Sky Bar Terrace

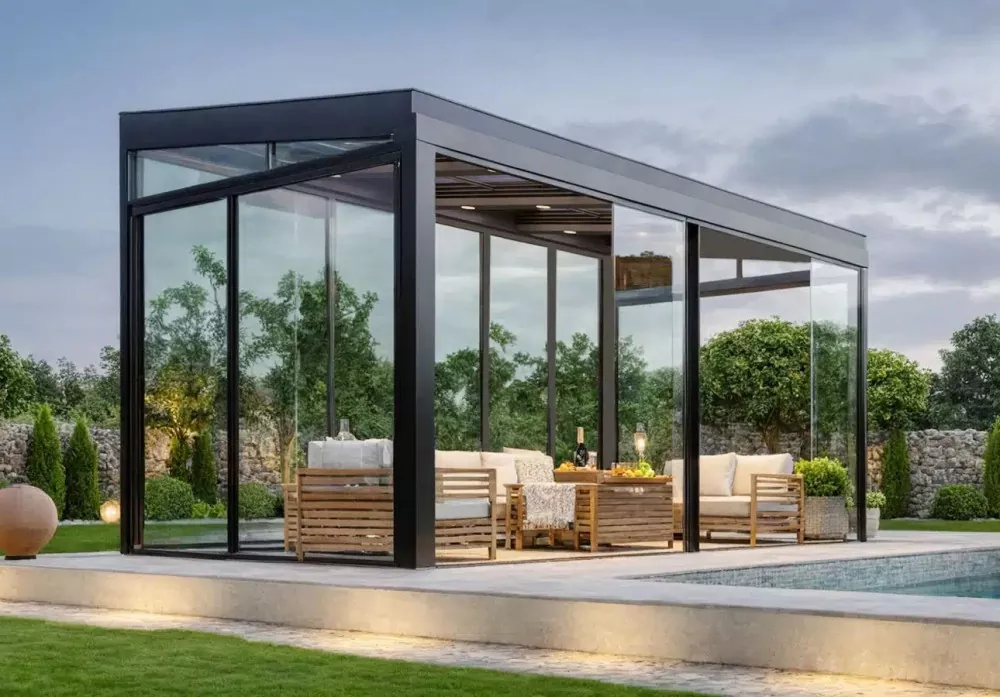

● Leisure area by the swimming pool

● Landscape Garden Rest Area

The glass Opening Glass Roof Pergola design provides guests with a more luxurious experience.

4. Rest pavilions and public spaces in commercial districts

Providing sun and rain protection while maintaining a clear view, suitable for:

● commercial complex

● Outdoor area of shopping mall

● Park landscape architecture

Enhance the overall design sense of the project.

Frequently Asked Questions

Is the tempered glass roof safe enough for outdoor use?

Yes. The standard configuration uses 8–12mm tempered safety glass, which has 4–5 times the impact resistance of ordinary float glass. When broken, tempered glass shatters into small rounded fragments rather than sharp shards. Laminated glass is also available as an upgrade — it holds together even when cracked, providing an additional safety layer for installations below seating areas or in high-traffic locations. Both options comply with international tempered glass safety standards.

Will water leak through the glass roof when it rains?

No. When the glass panels are fully closed, the roof is completely watertight. Rainwater is channeled along the edges of each glass panel into an integrated concealed drainage system inside the frame, then discharged through the hollow interior of the support columns to the ground. There are no exposed gutters and no dripping through panel joints — the system handles both light showers and sustained heavy rain.

Can it withstand strong winds?

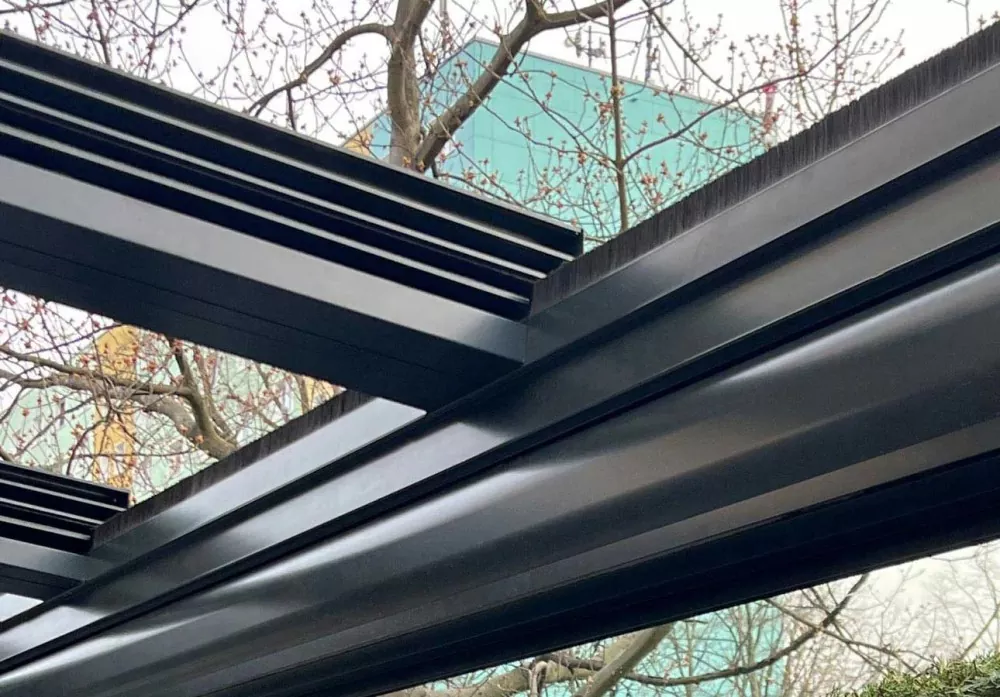

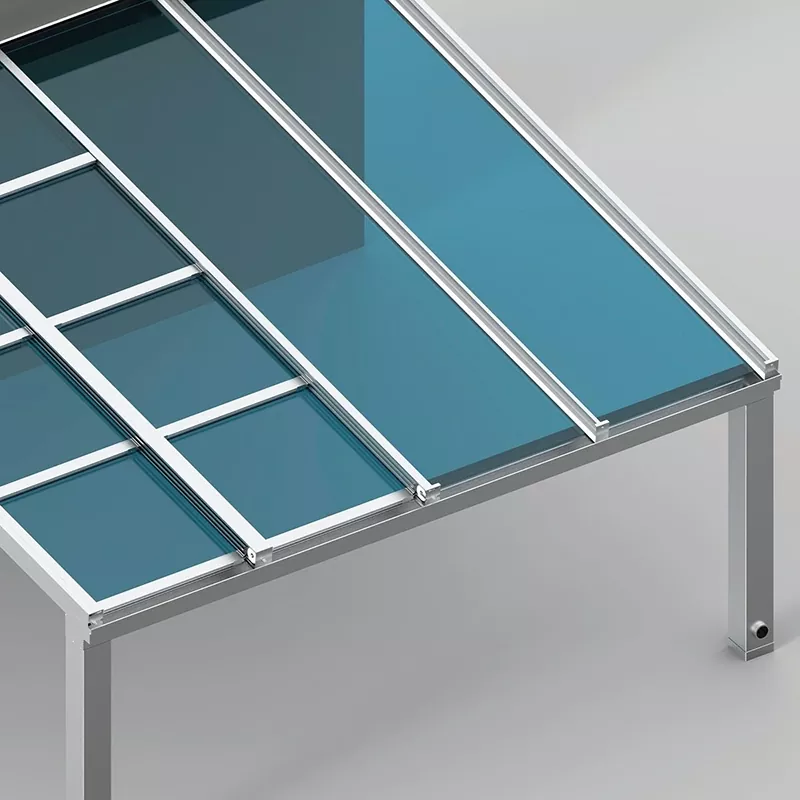

Yes. When closed, the structure is rated to withstand wind speeds of 120 km/h (approximately Beaufort scale 12). The glass panels run in precision-machined silent guide rails with engineering-grade nylon sliders and optional Teflon bearings, which distribute lateral wind load across the full frame. For exposed coastal or hilltop installations, additional anchoring reinforcement is available — provide your site details when requesting a quote.

Will the glass roof trap heat and make the space uncomfortable?

Standard clear tempered glass allows solar heat gain, which can increase temperature under the roof in direct summer sun. Two solutions are available to address this:

• Low-E (low-emissivity) glass — blocks a significant portion of UV and infrared radiation while maintaining optical clarity. This is the most common upgrade for residential and hospitality applications.
• Tinted or reflective glass — reduces visible light transmission and solar gain, suitable for spaces that need privacy as well as heat reduction.

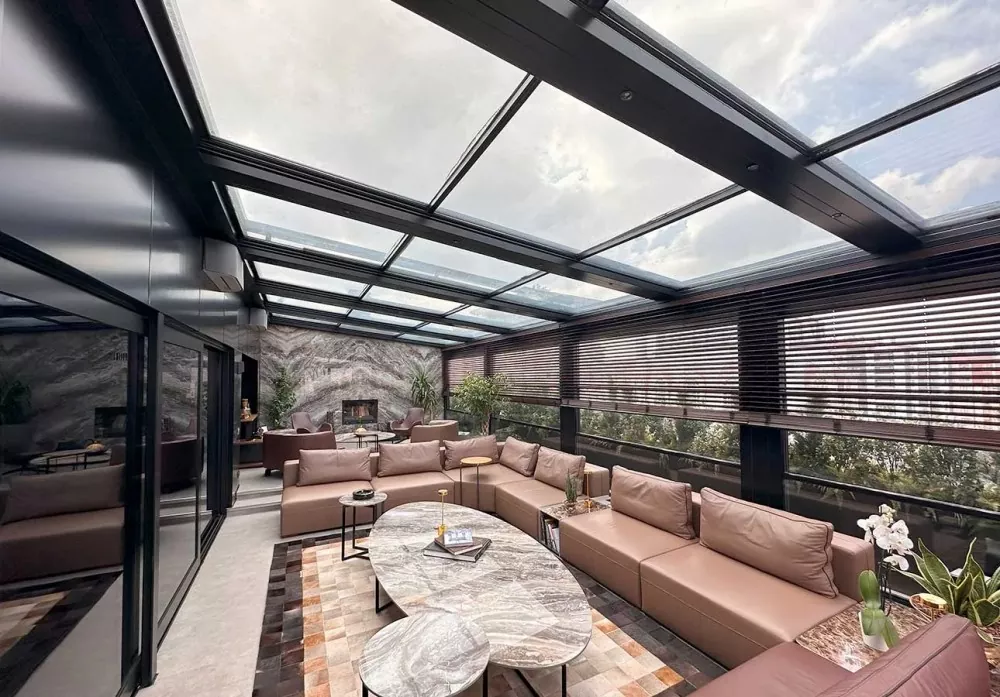

The electric roof can also be opened partially or fully for natural ventilation on warm days, or combined with side screens and retractable blinds for complete climate control.

How reliable is the electric sliding mechanism?

The motor carries an IP65 rating — fully dustproof and protected against water jets from any direction, making it suitable for permanent outdoor installation without additional weatherproofing. The motor is rated for more than 20,000 open/close cycles before requiring maintenance. The guide rail system uses silent thickened rails for low-noise operation. A manual override tool is included with every unit for use during power outages.

Glass Roof vs Louvered Roof vs Fabric Canopy — How to Choose

Vionta offers three distinct roof systems for aluminum pergolas. Each suits different priorities and budgets. Here is a direct comparison:

Opening Roof Pergola - Let outdoor spaces have infinite possibilities

Vionta's Opening Glass Roof Pergola is not only an outdoor shading structure, but also a professional system that can change the spatial experience.Transparent, agile, comfortable, and durable, allowing any terrace, courtyard, or commercial space to achieve true year-round use.

If you are looking for reliable China manufacturers, professional suppliers, or long-term cooperative factories, Vionta will be a trustworthy partner.
