Wall Mounted Pergola with Retractable Roof

What is wall mounted pergola with roof?

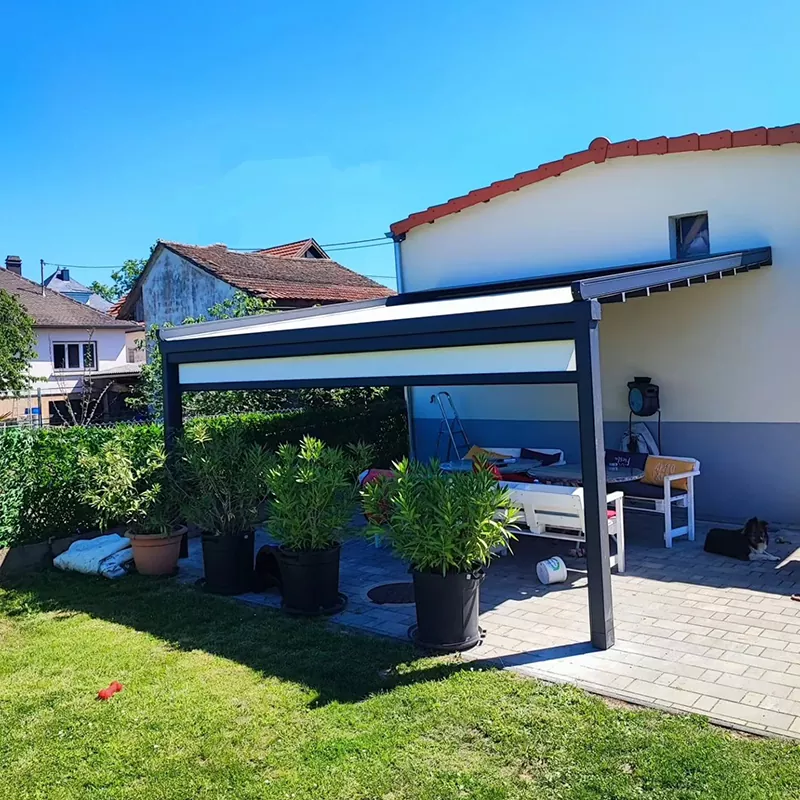

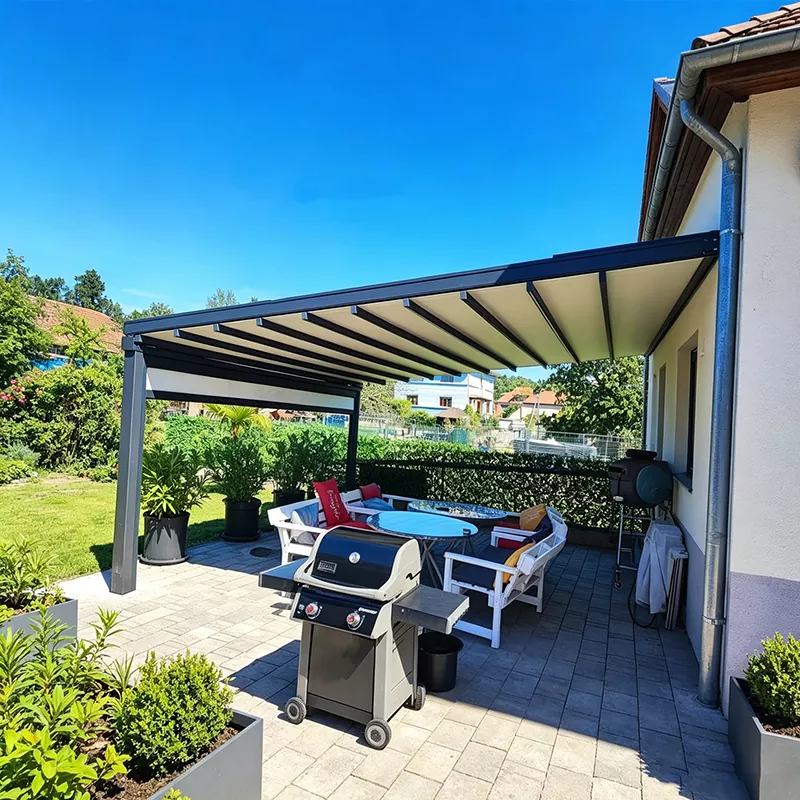

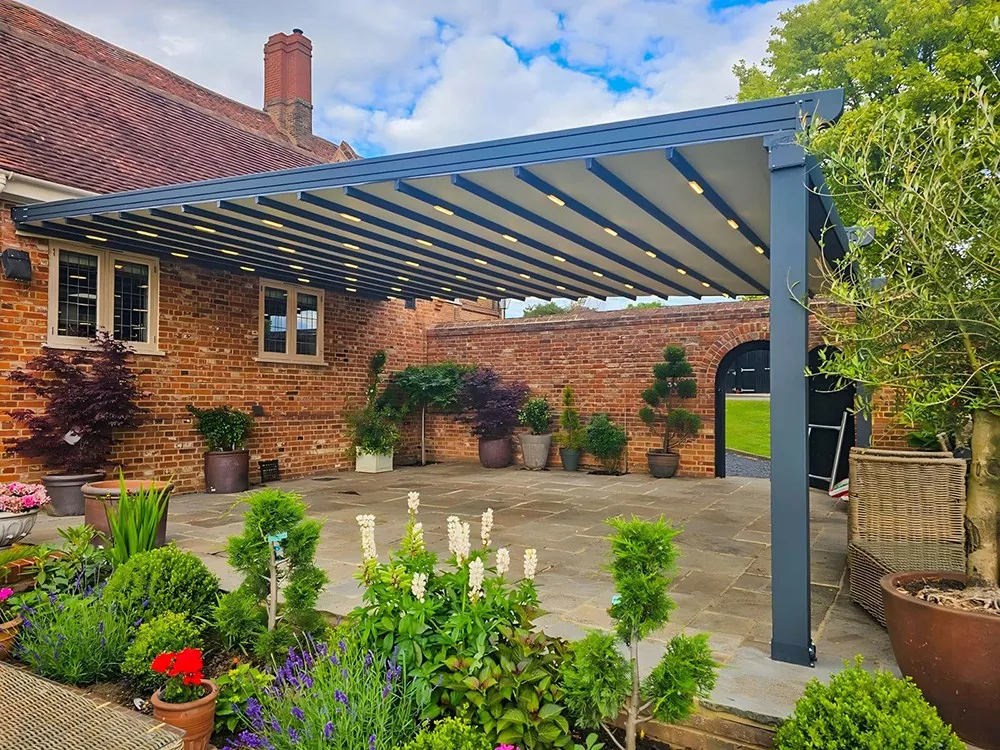

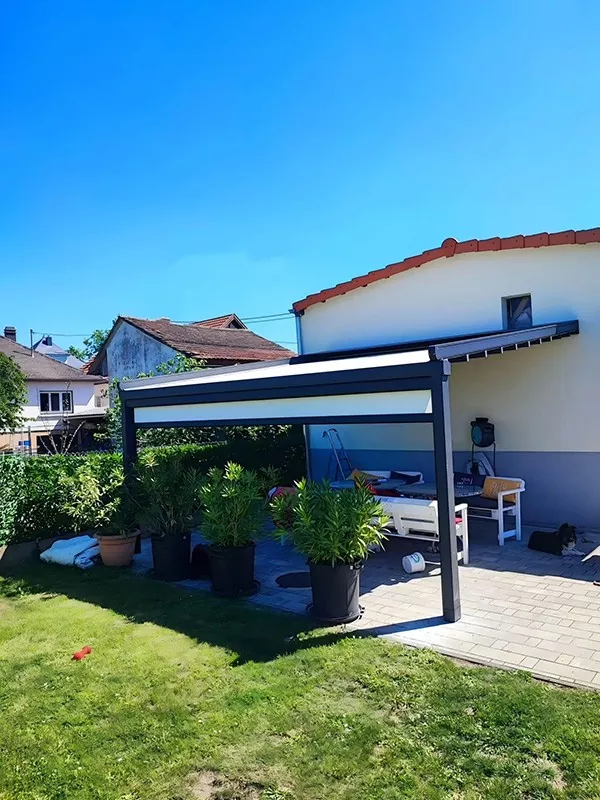

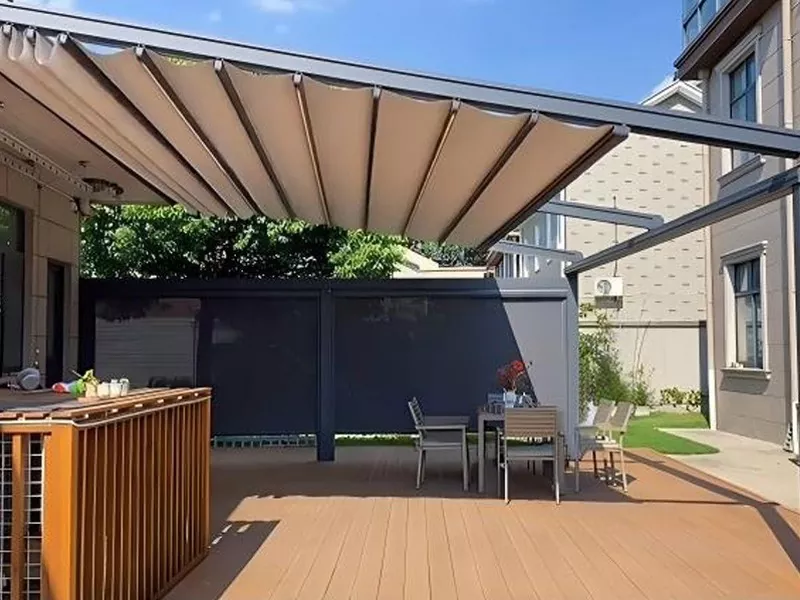

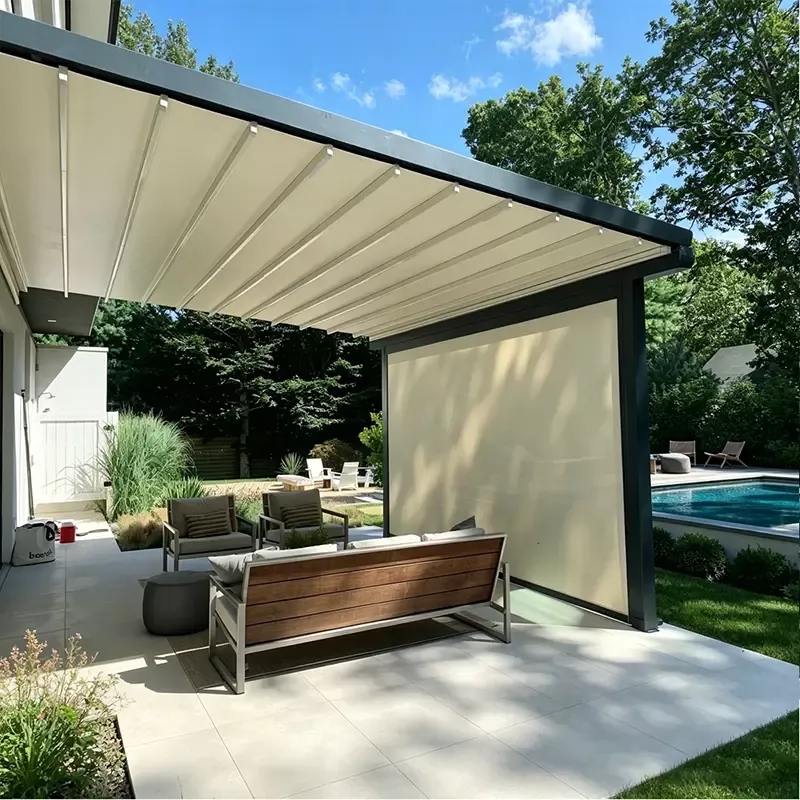

A wall mounted pergola with roof is a fixed outdoor shade structure that attaches to an exterior building wall on one side, with the opposite end supported by freestanding posts. The roof — a retractable aluminum-framed canopy — extends on demand to cover the outdoor area below, or pulls back to leave the space fully open to the sky.

This configuration uses the building wall as one structural anchor point, reducing the post count, bringing the structure flush to the house, and creating a covered outdoor area that connects naturally to interior living spaces through adjacent doors and windows.

Vionta Metal is a manufacturer and factory based in Cixi, Ningbo, China. We supply wall mounted pergola with retractable roof systems factory-direct to wholesalers, distributors, building contractors, and project buyers in North America, Europe, Australia, and the Middle East.

How a Wall Mounted Pergola with Retractable Roof Differs from Other Structures

Wall Mounted vs. Freestanding Pergola

A freestanding pergola stands independently on four or more posts with no wall connection. A wall mounted pergola uses the building as one anchor, reducing the post count and allowing the structure to sit flush against the house. This makes the transition between interior and exterior space more seamless, and is the preferred configuration for patios and terraces that adjoin the building directly.

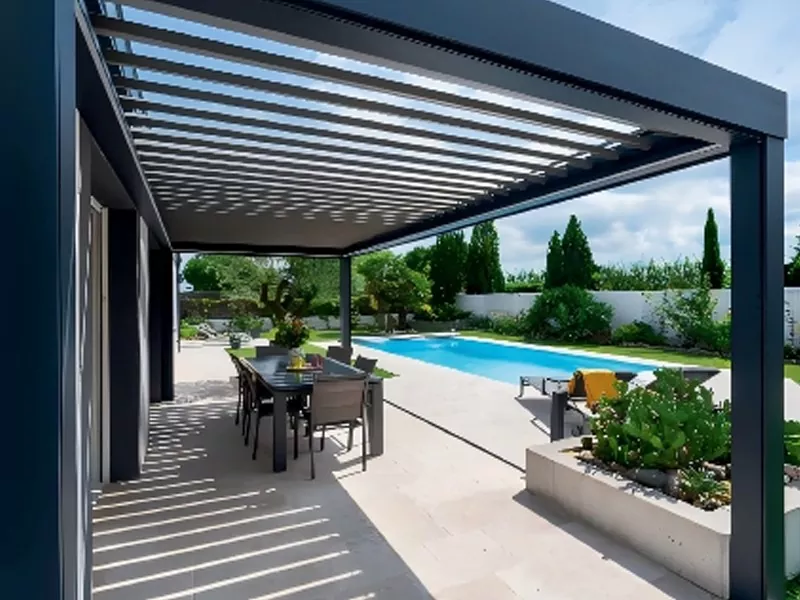

Retractable Canopy Roof vs. Fixed Louvered Roof

A fixed louvered pergola has a permanent aluminum slat roof where individual slats rotate to control light and ventilation. The roof structure is always overhead. A retractable canopy roof can be fully opened — fabric or polycarbonate panels retract into a compact housing — so the space is completely open when weather allows. For buyers who want the flexibility to switch between a fully open outdoor experience and a fully covered one, a retractable roof is the better choice.

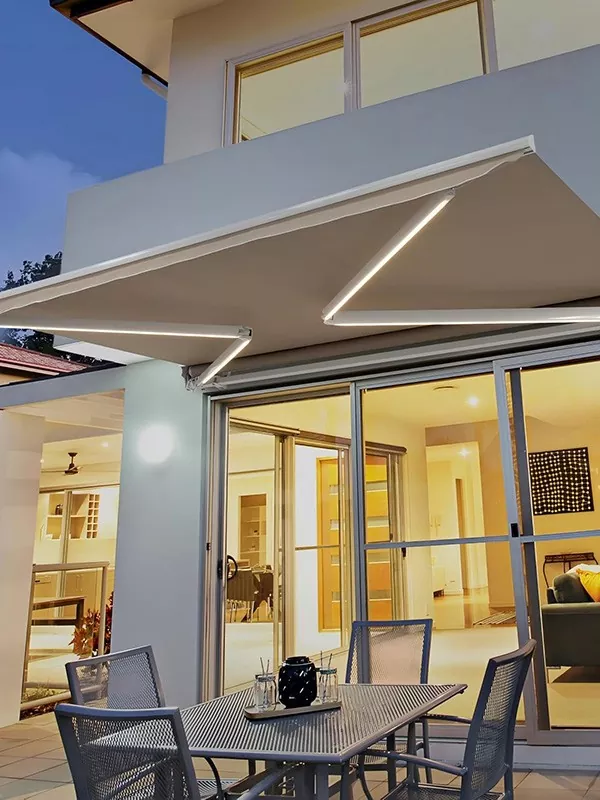

Wall Mounted Pergola vs. Standard Retractable Awning

A standard retractable awning mounts to the wall and projects outward with no vertical posts and no side enclosure capability. A wall mounted pergola has a full aluminum frame — main beam, rafters, and posts — making it structurally rigid, suitable for larger spans, and capable of carrying side curtains, LED lighting, drainage gutters, and ceiling fans. For areas larger than approximately 4 × 3 m, a pergola frame is the more appropriate structure.

Retractable Canopy Roof: How It Works

The canopy operates on a horizontal track-and-roller system integrated into the aluminum rafters. The fabric attaches to a leading bar that slides along the tracks. In the retracted position, the fabric bunches into a compact fold at one end of the pergola. When extended, the leading bar travels to the far end and the fabric spans the full roof area, providing shade and rain protection.

Manual vs. Motorized Operation

Manual retraction uses a hand crank or pull cord. It is a simpler, lower-cost system with no electrical components and is the standard choice for pergolas up to approximately 4 m projection, or for buyers who prefer minimal maintenance.

Motorized retraction uses a tubular electric motor in the roller mechanism. The canopy opens and closes via wall switch, remote control, or smartphone app. Higher-specification motors connect to wind and rain sensors for automatic operation. Motorized systems are recommended for larger pergolas, commercial installations, and buyers who need frequent canopy adjustments throughout the day.

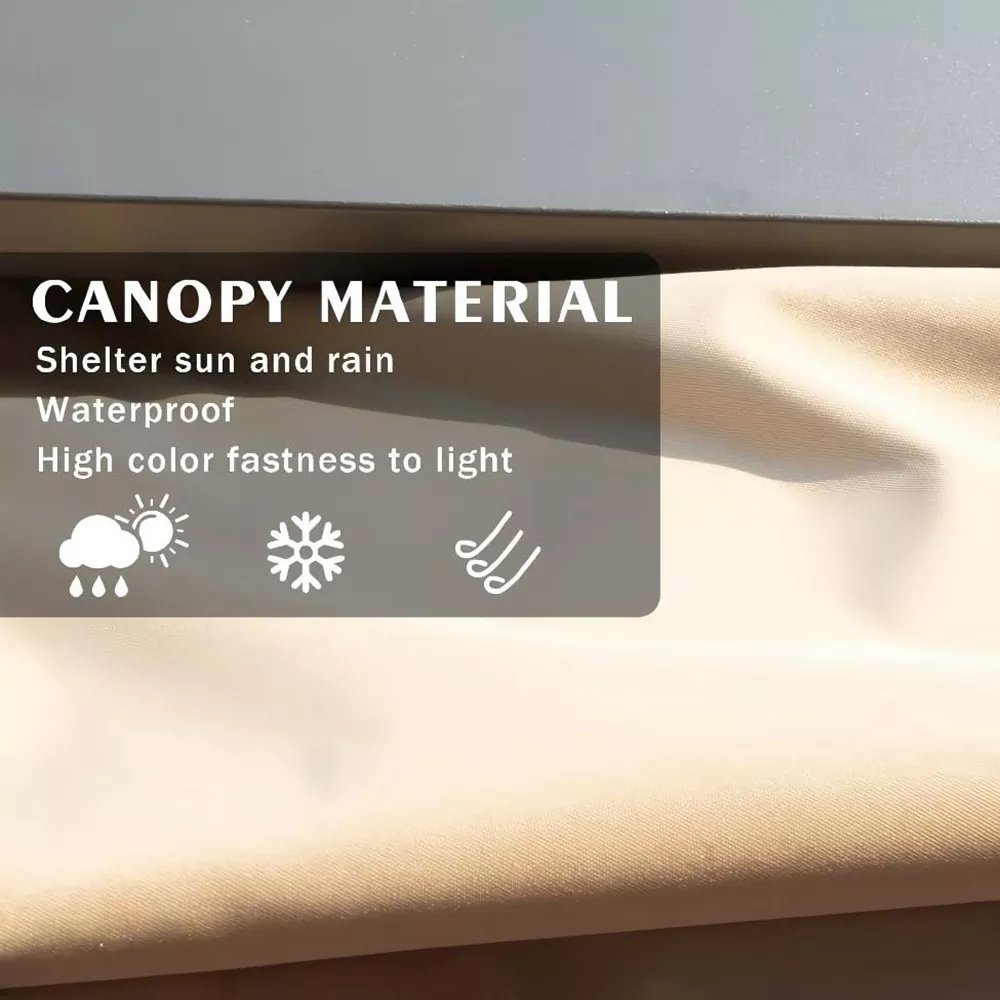

Canopy Fabric Options

Solution-dyed acrylic (Sunbrella-grade equivalent): yarn is dyed before weaving, so colour is integral to the fibre. Excellent UV and fade resistance — typically 5+ years of colour retention in direct sun. Breathable and water-repellent, reducing heat build-up under the canopy.

Coated polyester (PVC or acrylic backing): woven polyester base with a waterproof coating. Fully waterproof, easy to clean, and available in a wide range of colours including striped and textured finishes. Higher-grade coated fabrics with UV stabilisers extend service life significantly.

Polycarbonate panels: for buyers who want a rigid, semi-transparent roof. Twin-wall polycarbonate provides good thermal insulation and is fully waterproof. Available in clear, opal (translucent), and tinted options.

Aluminum Frame: Material and Construction

Why 6063-T5 Aluminum Alloy

The structural frame — wall mounting bracket, main beam, rafters, posts, and gutter section — is fabricated from extruded 6063-T5 aluminum alloy. This is the same alloy grade used in architectural window and curtain wall systems, chosen for its combination of adequate structural strength, low weight, and long-term corrosion resistance.

Aluminum does not rust. Unlike steel, which requires paint or galvanising to prevent oxidation, aluminum forms a stable passive oxide layer that protects the metal without any coating. A powder-coated aluminum frame will remain presentable after ten years of outdoor exposure with only occasional cleaning. The low weight of aluminum also reduces the dead load on the wall bracket — approximately 65% less than steel of the same section — which means standard masonry anchors are typically sufficient without additional structural reinforcement.

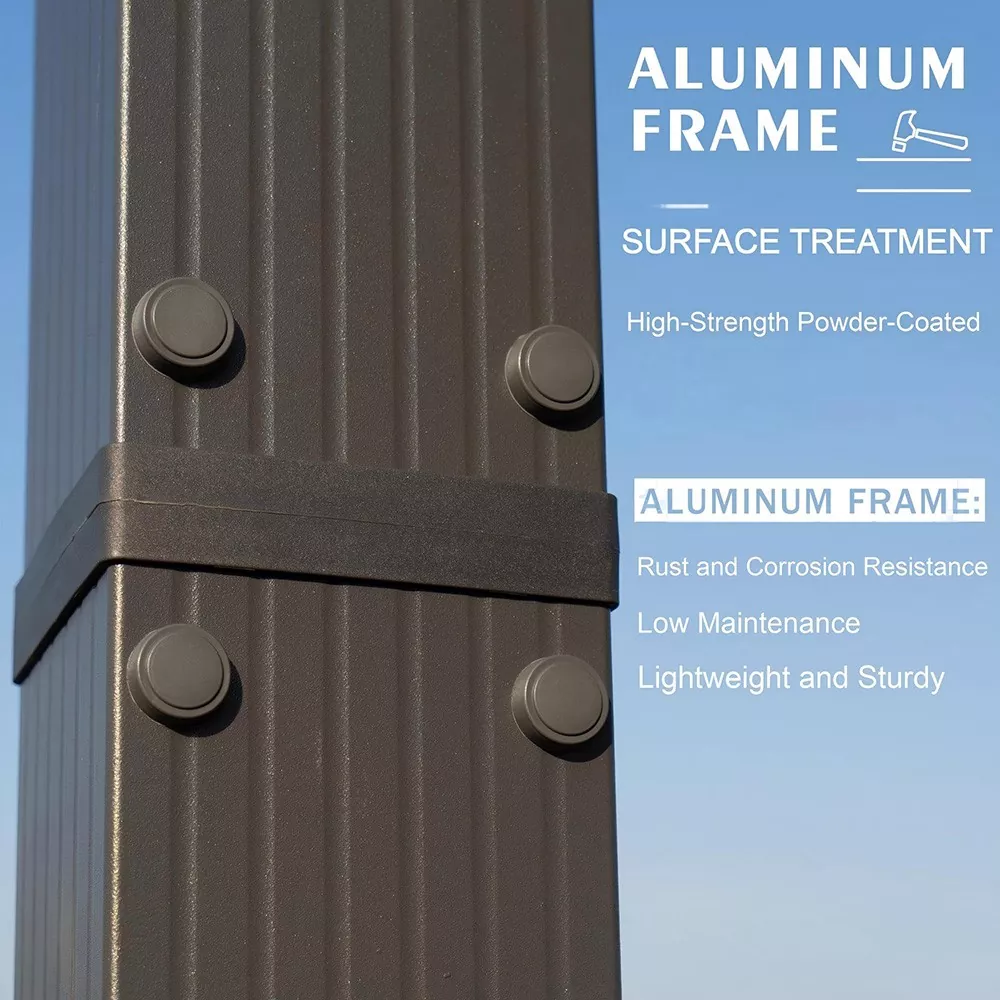

Powder Coating and Surface Finish

All profiles are powder coated after fabrication. Powder coating is an electrostatic dry-paint process cured at approximately 180–200°C, producing a film that is harder, more chip-resistant, and more UV-stable than liquid paint. Standard colours include RAL 9016 (traffic white), RAL 9005 (jet black), RAL 7016 (anthracite grey), RAL 7035 (light grey), and custom RAL colours for orders above the minimum quantity. Woodgrain transfer printing is available on flat profile sections.

Profile Sections and Span Capabilities

Main beam, rafter, and post profiles are purpose-designed to integrate the canopy track, drainage channel, and wiring conduit within the extrusion cross-section. Standard Vionta profiles are sized for widths of 2.5 m to 6 m and projections of 2.0 m to 5.0 m. Larger spans are achievable with intermediate support posts or custom profile engineering.

Structural Configuration

Wall Attachment

The pergola attaches via a main beam bracket fixed with M10 SS316 anchor bolts into masonry, concrete, or timber framing. The bracket transfers both vertical loads (dead weight and downward live loads) and horizontal loads (wind uplift and canopy tension) into the wall structure. The wall must be structurally sound — anchor bolts must penetrate solid masonry or a structural timber element, not render, cladding, or sheeting alone.

For walls where penetration is not possible, a freestanding version with a rear post row is available, retaining the visual appearance of a wall mounted system without the structural wall connection.

Post Configuration and Mounting

The front edge is supported by one or two posts depending on the width. Posts can be surface mounted on base plates, side mounted to a deck fascia, or core drilled into concrete. Post heights are adjustable at the bracket to accommodate non-level ground and to set the desired eave height.

Integrated Gutter and Drainage

A drainage channel is integrated into the front beam profile. In rain, water runs off the canopy fabric into the gutter and channels through the corner posts to ground via concealed downpipes. This keeps water away from the building wall and from people beneath the pergola. Integrated drainage is standard on all Vionta wall mounted pergola systems.

Product Specification Table

Typical Applications

Residential Patios and Terraces

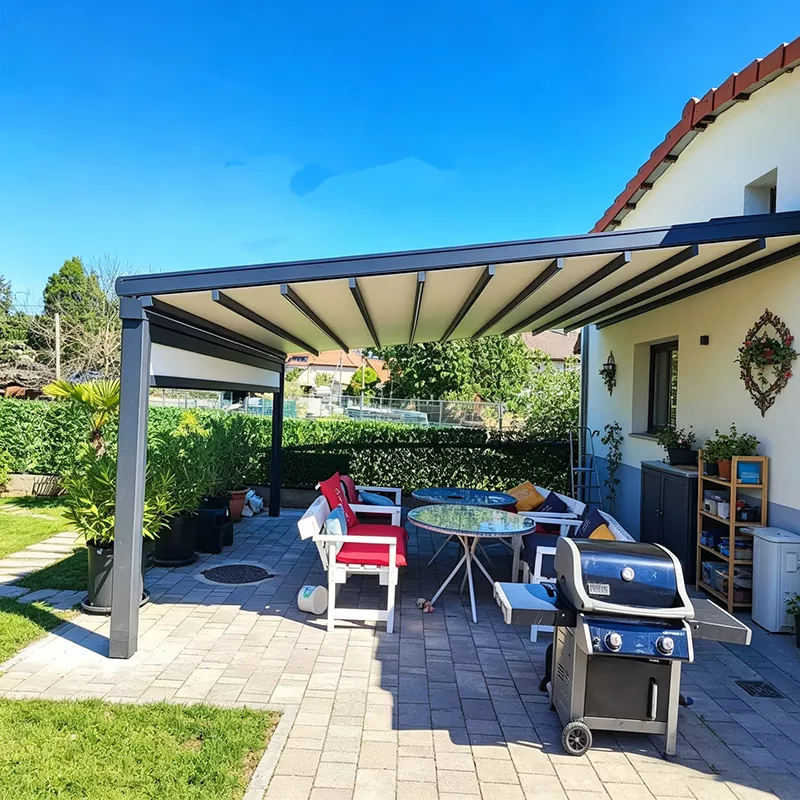

The most common application. A wall mounted pergola with retractable roof extends usable living area directly off the kitchen, dining room, or living room. In climates with variable weather — Northern Europe, the Pacific Northwest, coastal Australia — the ability to retract the roof when the sun appears and extend it during rain makes the outdoor space genuinely usable year-round.

Restaurant and Café Terraces

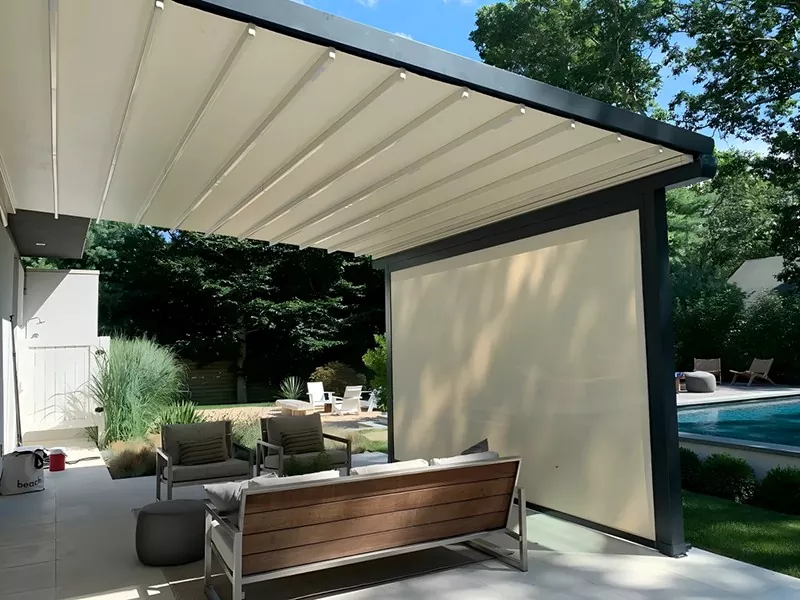

Commercial food and beverage operators use wall mounted pergolas to extend covered seating onto pavements and courtyards. The retractable roof allows operation during light rain without fully enclosing the space. Motorized operation makes it practical for staff to adjust the canopy quickly as weather changes during service.

Hotel Pool Decks and Resort Terraces

Hospitality projects typically require larger spans, higher wind ratings, and a more polished finish. Vionta supplies commercial-grade wall mounted pergola systems for hotel pool surrounds, spa terraces, and resort lounges, with powder-coat colours matched to the building palette and options for integrated LED lighting and branded canopy fabric.

Retail Storefronts and Entrance Canopies

A wall mounted pergola with retractable roof provides weather protection for customers at a retail entrance without a permanent fixed canopy. Retractable systems also avoid certain planning restrictions that apply to permanent structures in some jurisdictions.

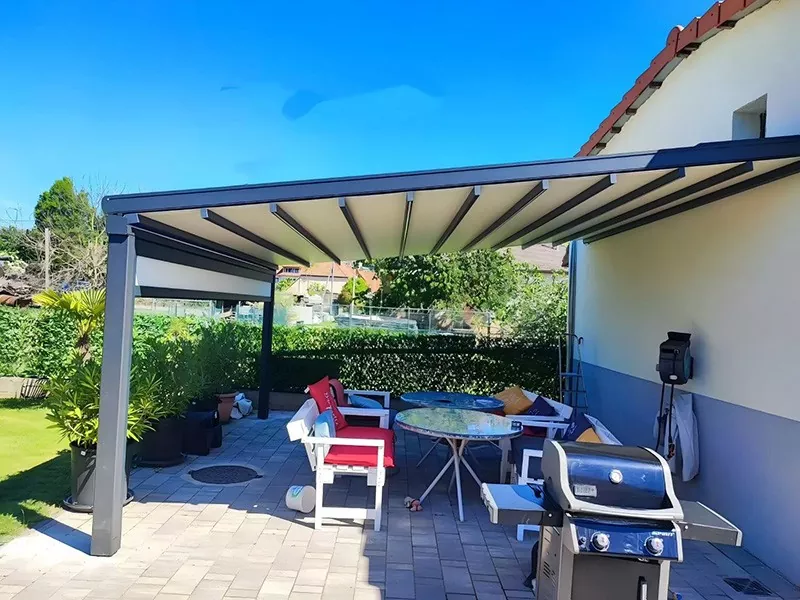

Balconies and Rooftop Terraces

For apartments and townhouses with balconies, a wall mounted pergola fits within the balcony footprint and attaches to the building parapet or wall. The structure is lightweight and suitable for existing balconies in most cases without structural modification. Rooftop terraces benefit from the wind sensor option, which automatically retracts the canopy in strong gusts.

Frequently Asked Questions

Can a wall mounted pergola be installed on any wall type?

The wall must accept anchor bolt fixings that resist the applied loads — wind uplift on the canopy and the dead load of the frame. Solid brick, concrete block, poured concrete, and timber stud framing with adequate sheathing are all suitable. Lightweight cladding systems, EIFS render, and hollow-section walls are generally not suitable without backing plates or supplementary structural support. If you are uncertain about your wall construction, a structural engineer should confirm the fixing specification before installation.

How much wind can the retractable canopy withstand?

The aluminum frame is designed and tested to standard residential wind loads per the applicable regional standard. The canopy fabric has lower wind resistance than the frame — most retractable canopy systems are rated for wind speeds up to approximately 50–60 km/h (Beaufort 6–7) in the extended position. Above this threshold, the canopy should be retracted to protect the fabric and drive mechanism. Motorized systems with a wind sensor automate this retraction when the set wind speed threshold is reached.

Is the canopy waterproof or water-resistant?

This depends on the fabric specified. Solution-dyed acrylic is water-repellent and sheds light rain effectively, but is not fully waterproof under sustained heavy rainfall. Coated polyester with a PVC or acrylic backing is fully waterproof and handles heavy rain without leakage. The integrated drainage gutter manages water runoff in both cases. If primary use includes operation during heavy rain, specify the coated polyester fabric option.

How is the canopy fabric replaced when it wears out?

The fabric attaches to the leading bar and roller on a track system designed for field replacement without dismantling the frame. The leading bar unclips, the old fabric is unrolled and removed, and new fabric is rolled onto the roller and reattached. This typically takes 1–2 hours with two people. Vionta supplies replacement fabric rolls as a spare part.

Can the pergola be extended or modified after installation?

Width extension is possible by adding rafter sections and extending the canopy fabric, within the structural limits of the main beam span. Projection extension requires replacing the rafters with longer profiles and a larger canopy fabric. Adding motorization to a manual system after installation is straightforward — the tubular motor replaces the manual roller. Side curtains and lighting can be added at any time as they attach to the existing frame without structural modification.

Do you supply just the frame, or the complete system?

Vionta supplies complete systems including frame, canopy fabric, motor (if specified), sensors, drainage hardware, wall fixings, and all installation hardware in one shipment. Frame-only and canopy-and-motor kits are also available for buyers who source other components locally. Contact us to discuss which supply scope suits your project.

Request a Quote from Vionta Metal

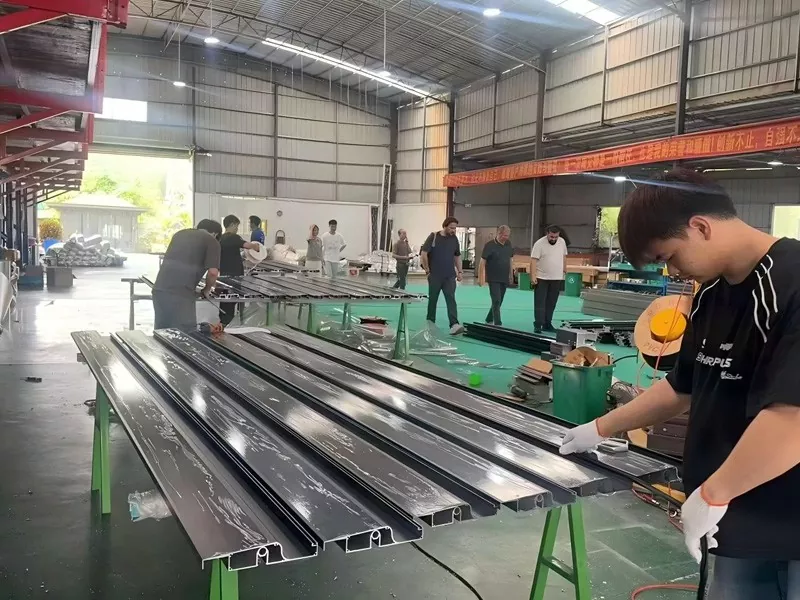

Vionta Metal is a manufacturer and factory in China, not a trading company. We operate our own aluminum extrusion lines, powder-coating booths, fabric cutting and sewing operations, and assembly facility in Cixi, Ningbo. There is no intermediary factory in our supply chain, which means buyers receive factory-direct pricing without a trading margin.

To receive a detailed quotation, please share the following information and we will respond within 24 hours:

• Project dimensions — width, projection, and required eave height
• Deck or terrace substrate — timber, composite, concrete, or steel
• Canopy preference — manual or motorized, fabric type and colour
• Order quantity — number of units or linear metres required
• Destination country — for shipping cost and compliance documentation
• Any specific requirements — custom colour, branded packaging, engineering documentation
