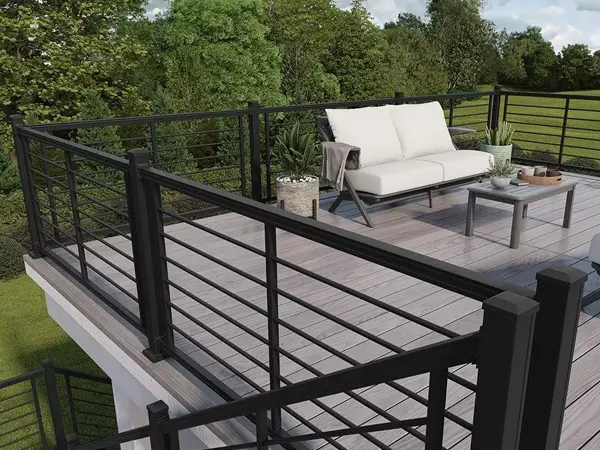

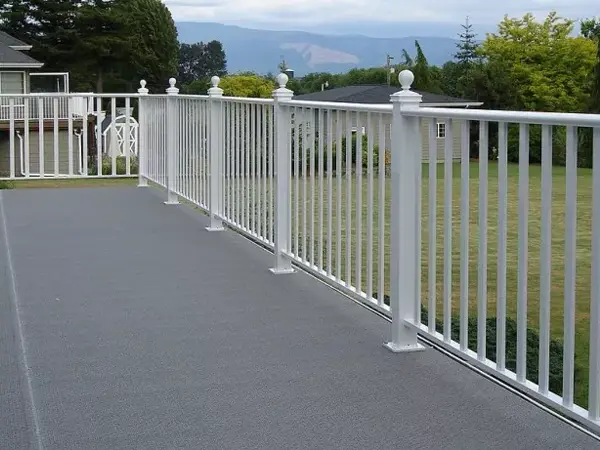

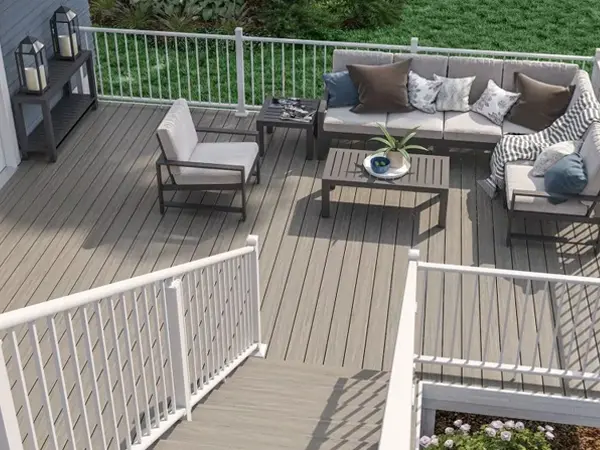

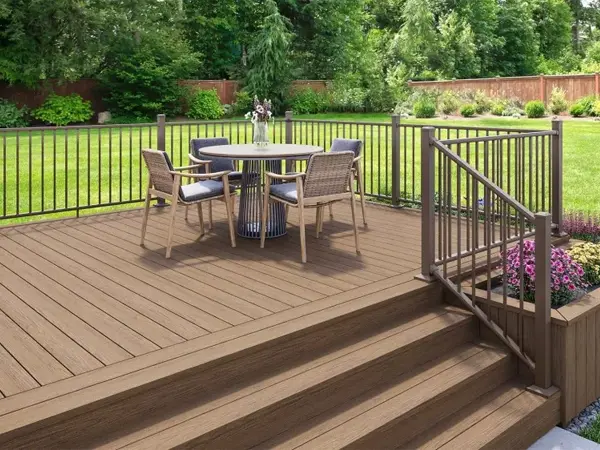

Aluminum Porch Handrails

Vionta Metal is a specialist manufacturer of aluminum railing systems based in Cixi, Ningbo, with over 20 years of production experience. Our aluminum porch handrails are supplied to distributors, builders, and hardware importers across North America, Europe, and Australia, and are produced to meet the dimensional and load requirements of the major residential and commercial building codes used in those markets.

Aluminum porch handrail specifications

All rail profiles are extruded from 6005-T5 aluminum alloy, which offers a tensile strength of approximately 260 MPa and is well suited to outdoor exposure without additional protective treatment. Standard wall thickness is 1.4 mm; a 2.0 mm heavy-duty option is available for higher-traffic or commercial applications. Profiles are produced in standard lengths of 3 m and 6 m and can be cut to any customer-specified dimension before shipment.

Material	6005-T5 aluminum alloy
Rail profile section	40×40 mm square / 50×50 mm square / custom
Wall thickness	1.4 mm standard / 2.0 mm heavy-duty
Standard lengths	3 m / 6 m, custom cut available
Post spacing	Max 1,500 mm on center
Surface finish	Powder coat (any RAL) / Mill finish / Type II anodized
Salt spray resistance	3,000 hours (ISO 9227, powder coat)
Lateral load capacity	200 lbf (890 N) per IBC 1607.8
MOQ	50 sets

Surface finish options: powder coat vs. anodizing

Thermosetting polyester powder coat is the most commonly specified finish for porch handrail exports. It is applied electrostatically and cured at 180–200 °C, producing a uniform layer of 60–80 microns. Any RAL color is available with a standard lead time of 15 working days; custom color matching is available on larger orders. All powder coat batches are tested to 3,000 hours salt spray per ISO 9227 before shipment.

Type II sulfuric acid anodizing in clear or bronze produces a hard, integrated oxide layer of 10–25 microns. Anodized finishes are preferred in coastal environments or wherever a metallic appearance is specified. Mill finish (uncoated, brushed) is also available for projects where the contractor applies their own coating on site.

Compliance with stair and railing codes

Buyers supplying residential projects in the United States should note that IRC R311.7.8 requires a handrail height of 34 to 38 inches (864–965 mm) above the stair nosing, measured vertically. Our standard post heights are sized to achieve this range when mounted to a typical wood or composite deck surface. For commercial projects governed by IBC 1015.3, a guard rail height of 42 inches (1,067 mm) is required; we offer a taller post profile to accommodate this dimension.

In Canada, the NBC 2020 requires handrails between 865 mm and 965 mm above the stair nosing, which aligns with the IRC range above. Australian projects governed by NCC/AS 1170 require a minimum barrier height of 1,000 mm (1 m) for elevated areas; we can confirm dimensional compliance for specific project requirements on request.

Baluster spacing in our standard system is set at a maximum of 100 mm (approximately 4 inches) on center, which keeps clear openings below the 4-inch sphere rule applied in both IRC R312.1.3 and IBC 1015.4. Projects with specific infill requirements — horizontal cable, glass panel, or solid panel — can be accommodated through our custom configuration service.

Porch-specific installation considerations

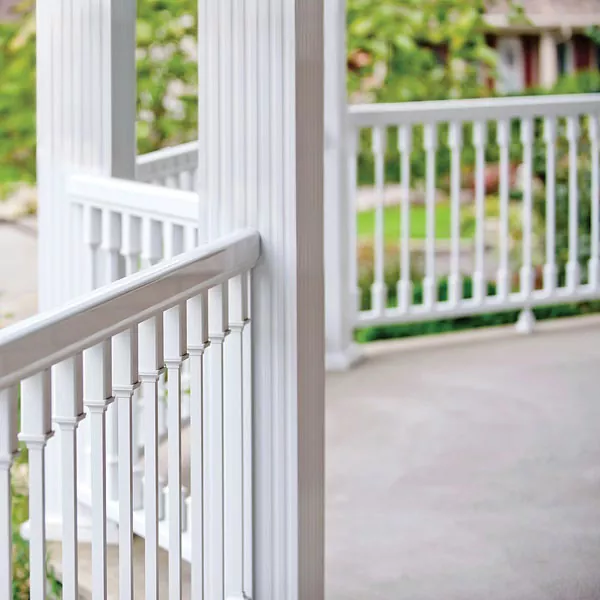

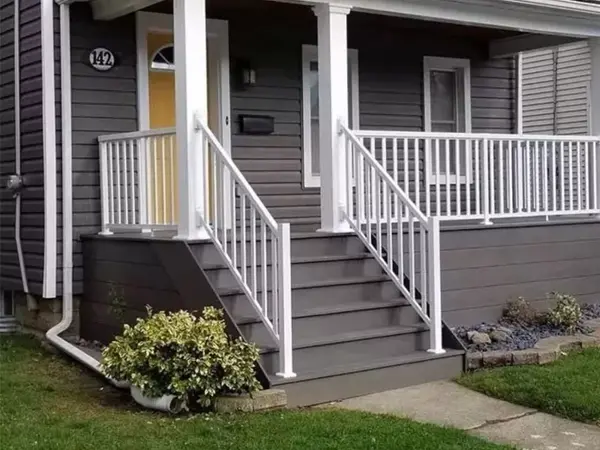

A porch handrail differs from a deck railing in several practical respects that affect product selection and installation method. Porch posts are frequently surface-mounted to an existing concrete slab or masonry step rather than to a framed wood deck, which requires a different base plate configuration and anchor hardware. We supply post base plates designed for both wood-lag and concrete-anchor installation, with pre-drilled holes and stainless steel hardware included in each set.

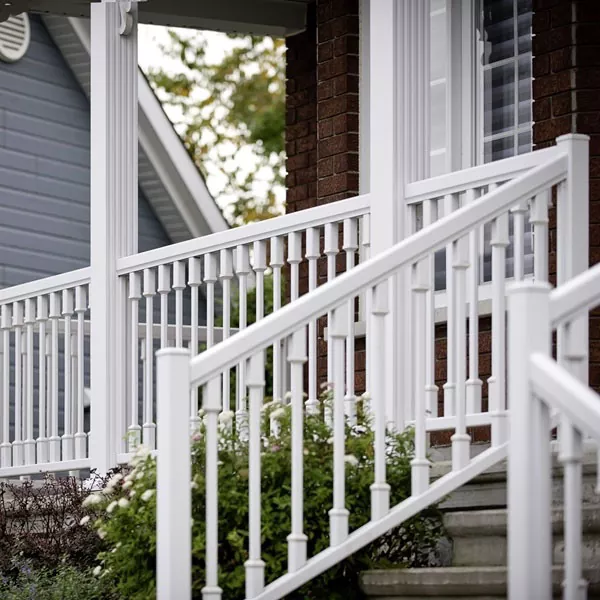

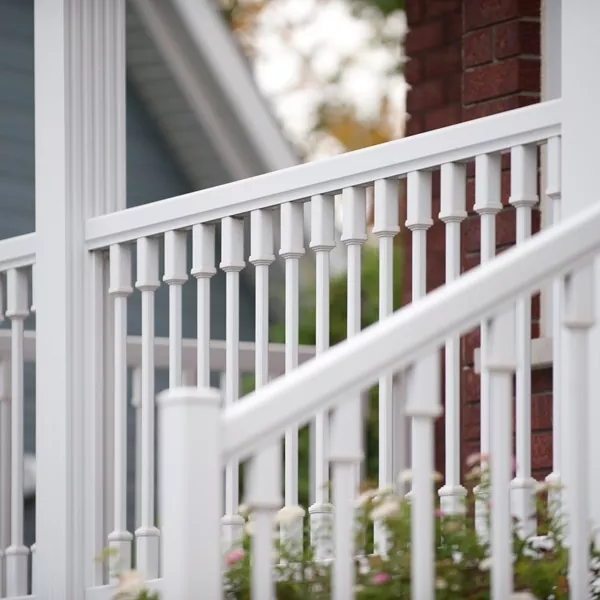

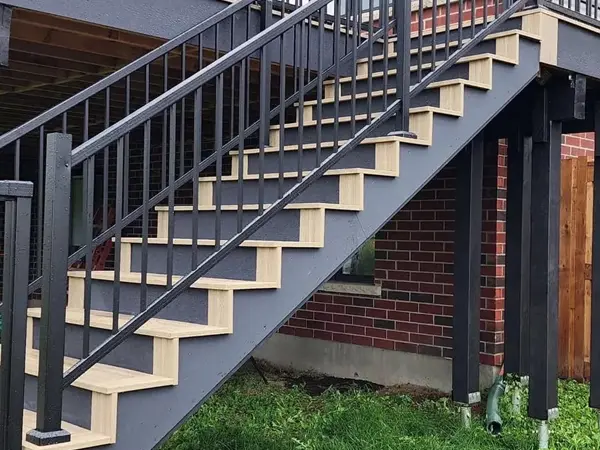

Angled stair configurations — where the handrail must follow the slope of the stair — require a rake-cut top rail rather than a level run. We produce rake-cut rails to the customer's specified pitch angle, eliminating on-site cutting and reducing installation time. L-shaped returns and 90-degree corner posts are available as stock items for porches with wrap-around configurations.

Custom sizing and OEM production

Our extrusion capacity allows us to produce custom profile cross-sections for buyers who require a specific aesthetic or structural dimension not covered by our standard range. Custom tooling is available with a minimum production volume; most buyers in this category are importers or distributors who supply a specific contractor network with a proprietary railing profile. We can also apply custom packaging, labels, and installation instruction booklets for private-label programs.

Standard orders ship with a numbered hardware kit containing all post caps, base plates, baluster connectors, and fasteners required for the specified quantity of handrail sets. Hardware is bagged and labeled by assembly step to simplify installation.

Packaging and shipping?

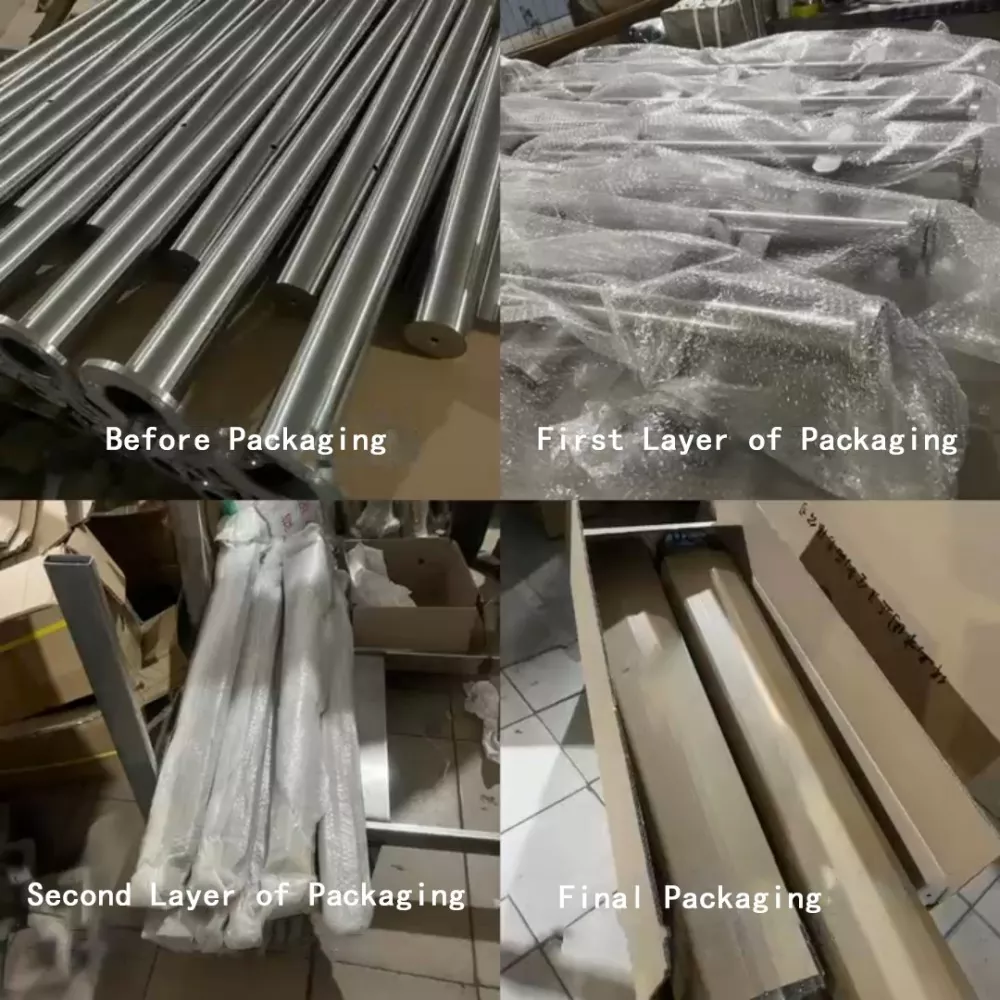

Each set of handrails is tightly wrapped with bubble wrap and corner protectors, and secured with wooden frames on the outside. When I received the goods myself, I opened them and saw that there was no collision! As a professional Chinese supplier, Vionta even packages screw accessories in designated areas with labeled numbers, making DIY easy!

Frequently asked questions

What aluminum alloy grade do you use for porch handrails?
Our porch handrails are manufactured from 6005-T5 aluminum alloy. This grade provides a tensile strength of approximately 260 MPa, good corrosion resistance without anodizing, and is the standard alloy for architectural railing extrusions. Wall thickness is 1.4 mm for standard profiles and 2.0 mm for heavy-duty variants.

Do your handrails meet IRC or IBC handrail height requirements?
Yes. Our standard post heights are sized to achieve a finished handrail height of 34 to 38 inches as required by IRC R311.7.8, or 42 inches for commercial guard applications under IBC 1015.3. Custom post heights are available on request for projects with non-standard deck or stair geometry.

What surface finish options are available?
We offer thermosetting polyester powder coat in any RAL color (tested to 3,000 hours salt spray per ISO 9227), Type II anodizing in clear or bronze, and uncoated mill finish. Lead time for standard powder coat colors is 15 working days from order confirmation.

Can you produce custom lengths and configurations?
Yes. We cut rail profiles to customer-specified lengths and produce rake-cut stair rails to the customer's specified pitch. L-shaped returns, 90-degree corner posts, and custom baluster spacing are all available. OEM packaging and private-label programs are also offered.

What is the minimum order quantity?
The standard MOQ is 50 sets. For sample or trial orders below this quantity, please contact riley@viontametal.com to discuss options.

At the end: Picking an handrail is like picking a teammate, reliability is the most important!

Many customers, after comparing prices from three different sources, ultimately choose Vionta because they see it as a well-established factory specializing in Aluminum Porch Handrails for over a decade. As a Chinese factory, we have strict quality control and reasonable prices. If you are about to renovate or renovate, why not give this one a try - safe, durable, and aesthetically pleasing - it is the perfect "storefront" for your porch!
