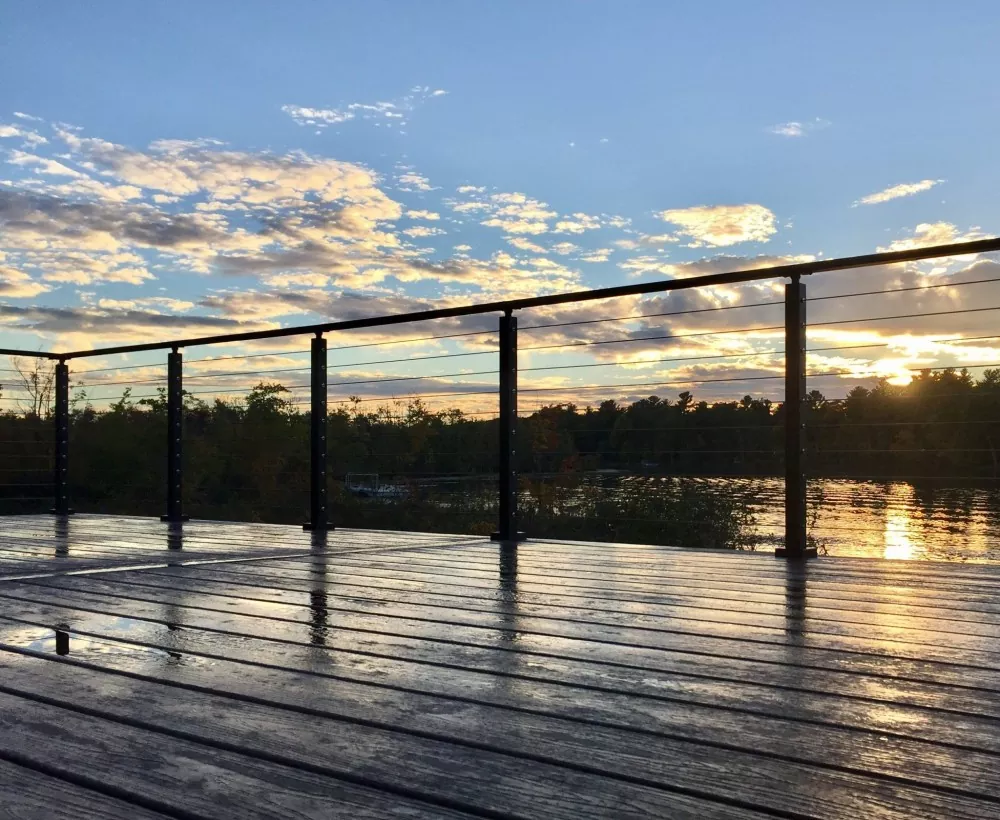

Stainless Wire Balustrade
Designed for residential, commercial, and hospitality projects, Vionta Metal’s stainless wire balustrade systems use high-quality stainless steel cables to create a sleek appearance while maintaining reliable safety performance. Compared with traditional iron railings or heavy glass systems, stainless steel cable railings provide a lighter visual effect, lower maintenance requirements, and long-term corrosion resistance, making them ideal for balconies, staircases, decks, terraces, and outdoor architectural applications.
Vionta Metal is a China-based manufacturer supplying stainless wire balustrade systems to contractors, importers, and project developers across Europe, North America, and Australia. Our systems are produced at our factory in Cixi, Ningbo, and are designed for direct container shipment to project sites or distribution warehouses.
What Is a Stainless Wire Balustrade?
A stainless wire balustrade is a post-tensioned cable railing system in which horizontal runs of stainless steel wire provide the infill between structural posts. The wire runs are tensioned using swaged or threaded end fittings, producing a taut, visually minimal barrier that meets the load and opening requirements of residential and commercial building codes.
Compared to glass panels or solid metal balusters, wire infill preserves sightlines, reduces wind load on the structure, and requires minimal ongoing maintenance. The system is widely used in coastal and marine environments because stainless steel — particularly 316 grade — resists chloride corrosion without surface treatment.
Material Options: 304 vs 316 Stainless Steel
The choice of wire grade is the most important specification decision for a wire balustrade project. The two standard options are:
| Property | 304 Stainless Steel | 316 Stainless Steel |
| Chromium content | 18% | 16–18% |
| Molybdenum content | None | 2–3% (key for salt resistance) |
| Corrosion resistance | Good – inland and sheltered environments | Excellent – coastal, marine, pool surrounds |
| Typical applications | Residential interiors, sheltered decks, urban commercial | Beachfront, harbourside, tropical, industrial |
| Relative cost | Lower | Higher (approx. 20–30% premium) |
For projects within 500 m of a saltwater coastline, or in areas with high atmospheric chloride, Vionta recommends specifying 316 grade wire and 316 fittings throughout. For inland residential and commercial projects, 304 grade is adequate and more cost-effective.
Technical Specifications
| Parameter | Detail |
| Wire material | 304 or 316 stainless steel (specified at order) |
| Wire diameter | 2 mm / 3 mm / 4 mm (1×19 or 7×7 construction available) |
| Wire construction | 1×19 strand (higher rigidity) or 7×7 strand (more flexible) |
| Post material | 304 or 316 stainless steel (to match wire grade) |
| Post profile | Square (40×40 mm, 50×50 mm) or round (Ø 42.4 mm, Ø 48.3 mm) |
| Post wall thickness | 1.5 mm – 2.0 mm |
| Standard post heights | 900 mm / 1,000 mm / 1,100 mm (custom heights available) |
| Wire spacing (vertical) | Typically 100 mm centres (adjustable to meet local code) |
| End fittings | Swaged terminals or threaded adjustable tensioners |
| Surface finish (posts) | Brushed (No. 4) or mirror polished (No. 8) |
| Maximum recommended post span | 1,500 mm (longer spans require intermediate tensioners) |
All specifications can be adjusted to meet project requirements or local building code. Contact riley@viontametal.com with project drawings for a tailored specification and quote.
Code Compliance Reference
Stainless wire balustrade systems are used in projects across multiple regulatory frameworks. The following reference points apply to common export markets:
| Market | Relevant Standard | Key Infill Requirement |
| USA (residential) | IRC R312 | Openings must not allow passage of a 4-inch sphere |
| USA (commercial) | IBC 1015 | Top rail height 42 inches; infill to resist 200 lb point load |
| Australia / NZ | AS 1657 / NZS 3604 | 100 mm max infill opening; 1,000 mm min rail height (deck ≥1 m) |
| UK / EU | BS EN 1991-1-1 / BS 6180 | Structural load requirements; gap limits to prevent climbing |
| Canada | NBC Part 9 | 107 mm max sphere passage; 920 mm min guard height |
Vionta Metal can provide product test data, material certifications, and dimensional specifications to support compliance submissions. Third-party inspection can be arranged on request.
System Components
| Component | Material | Function |
| Wire runs | 304 or 316 stainless steel | Primary infill — provides safety barrier and visual openness |
| Posts | 304 or 316 stainless steel tube | Structural uprights — transfer loads to substrate |
| Top rail (optional) | Stainless steel or wood | Handrail function and system rigidity |
| Swaged terminals / tensioners | 316 stainless steel | Anchor and tension wire runs through posts |
| Post base plates | 304 or 316 stainless steel | Surface or fascia mounting — weld or bolt fix |
| Intermediate wire guides | 316 stainless steel | Maintain wire spacing on longer spans |
Application Scenarios
Stainless wire balustrades are specified wherever designers and contractors need a structurally sound railing with minimal visual obstruction and low long-term maintenance costs.
Residential decks, balconies, and terraces — Exterior and interior staircases — Rooftop terraces and amenity areas — Villa and private garden perimeter fencing — Hotel and resort pool surrounds — Commercial mezzanine and walkway barriers — Marina and waterfront boardwalks
Installation Overview
Stainless wire balustrade installation requires tensioning tools and familiarity with swaged or threaded fitting systems. Professional installation is recommended for structural applications.
General installation sequence:
1. Fix post base plates to substrate (concrete, timber, or steel) at specified centres.
2. Set posts plumb and secure base plates.
3. Feed wire runs through intermediate guides and terminal fittings.
4. Apply tension to each wire run using a tension wrench or hydraulic tool. Target tension varies by wire diameter and span — refer to Vionta's specification sheet.
5. Fix top rail if included in system specification.
6. Check wire spacing, post plumb, and terminal fitting torque. Apply end caps.
Wire tension should be checked after 30 days of service, as stainless wire undergoes minor relaxation after initial tensioning. Vionta Metal provides PDF installation guides, tensioning specification sheets, and fitting torque values with every order.
Quality Control
| Test / Check | Standard |
| Material grade verification | Mill certificates for wire and tube — 304 or 316 as specified |
| Wire breaking load test | Sample batch tensile test per ASTM A492 or equivalent |
| Salt spray test (fittings) | 500 hours minimum per ASTM B117 |
| Dimensional check | Wire diameter ±0.05 mm; post dimensions ±0.2 mm |
| Surface finish inspection | 100% visual — no pitting, inclusions, or weld defects |
| Pre-shipment assembly check | Sample system assembled and inspected before container loading |
Material test certificates and inspection reports are available on request for projects requiring third-party documentation.
OEM and Wholesale Services
Vionta Metal works with importers, hardware distributors, and specialist railing suppliers on OEM and private-label programs. We can produce systems to your own specification, apply your brand markings, and pack to your labelling requirements. Pre-production samples are available before bulk orders are confirmed.
We supply stainless wire balustrade components and complete systems to markets including the UK, Germany, the Netherlands, Australia, Canada, and the United States. Factory holds ISO quality management certification.
Frequently Asked Questions
What is the difference between 304 and 316 stainless steel wire?
304 is suitable for most inland and sheltered environments. 316 contains molybdenum, which gives significantly better resistance to chloride and salt-spray corrosion. For coastal, waterfront, or pool surrounds, 316 is the correct specification.
What wire diameters are available?
Vionta Metal supplies wire in 2 mm, 3 mm, and 4 mm diameters. The appropriate diameter depends on post span, wire run count, and local code load requirements.
Does the system meet building code requirements?
Post-tensioned wire balustrades can be designed to meet IBC, IRC, AS 1657, and EN 1991 requirements, subject to correct wire spacing, post spacing, and tensioning. Vionta can supply specifications and test data to support compliance documentation.
Can the system be ordered to custom dimensions?
Yes. Post height, wire spacing, post profile, base plate configuration, and end fittings can all be specified. OEM programs are available for importers and distributors.
What is the lead time from China?
Standard production and shipping takes 15–25 days depending on order volume and customisation. Lead times are confirmed at the quotation stage.
Is professional installation required?
Tensioning wire balustrades requires calibrated tensioning tools and knowledge of correct wire tension values. Professional installation is recommended for all structural applications. Vionta supplies tensioning specifications and installation guides with every order.
Interested in a Stainless Wire Balustrade?
If you're evaluating options for a stainless wire balustrade or comparing different stainless steel cable railing systems, now is the perfect time to move from ideas to action.
Instead of relying on overly promotional reviews, get a solution designed for your actual project requirements.
Simply send us:
- A photo of your project site
- Basic dimensions or drawings (if available)
- Your preferred style or application scenario
The team at Vionta Metal will provide a free quotation and professional recommendation based on your project needs — whether for residential, commercial, hospitality, or wholesale applications.
Need Technical Support?
Have questions about specifications, installation, material grades, or customization?
Contact Vionta Metal directly at riley@viontametal.com for fast support from our experienced team.
Whether you need OEM manufacturing, bulk purchasing, or custom stainless cable railing solutions, we’re ready to help you find the right system for your market and project requirements.
