Galvanized Steel Privacy Screen

Outdoor privacy solutions require more than visual separation. They need reliable structural performance, weather resistance, and a design that integrates with different architectural environments. At Vionta Metal, we manufacture galvanized steel privacy screens designed for residential, commercial, and landscape projects where durability and modern appearance are equally important.

As a direct Manufacturer and Factory based in China, we cut out the trading layer. This allows you to specify exact panel sizes, laser-cut patterns, and base plate configurations without paying inflated middleman margins. Whether you need one decorative metal privacy screen for a rooftop terrace or 500 units for a multi-family development, our production line is set up for both small-batch custom and high-volume export.

Why Choose Galvanized Steel for Privacy Screens?

The core advantage is sacrificial protection. Galvanizing creates a metallurgical bond with the steel. If a panel is cut, drilled, or scratched, the surrounding zinc corrodes first, protecting the exposed steel edge. This is critical for privacy screens that are often installed near sprinkler systems, swimming pools, or in regions with heavy rainfall.

· Edge Protection: Unlike pre-painted steel where cut edges rust immediately, galvanized edges self-heal over time.

· Low Maintenance: No need to repaint every 2-3 years like standard wrought iron or mild steel screens.

· Structural Integrity: Galvanized steel typically has a higher yield strength than aluminum, allowing for larger spans without excessive deflection.

· Cost-Effective Lifecycle: The initial cost is higher than polyester powder-coated mild steel, but the total cost of ownership over 15+ years is significantly lower.

Galvanized Steel vs. Other Privacy Screen Materials

Core Technical Features of Our Galvanized Steel Screens

· Substrate: Hot-dip galvanized steel sheet (DX51D+Z or SGC400), coating mass Z275 (G90) or Z350 (G120) upon request.

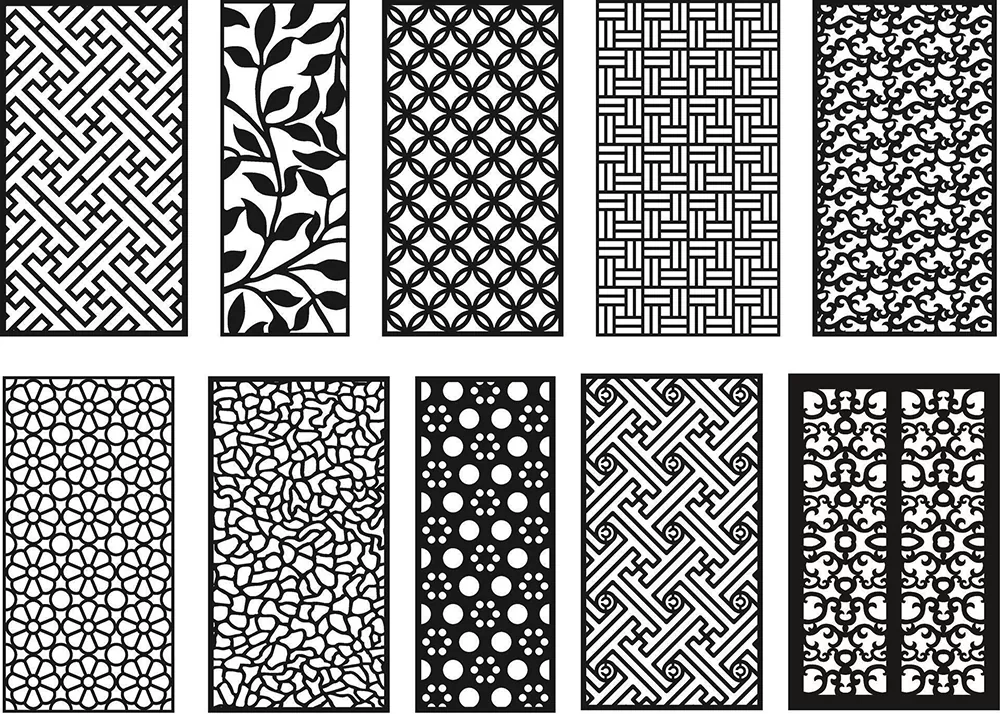

· Laser Cutting Precision: ±0.2mm tolerance, allowing intricate geometric or nature-inspired patterns without sharp burrs.

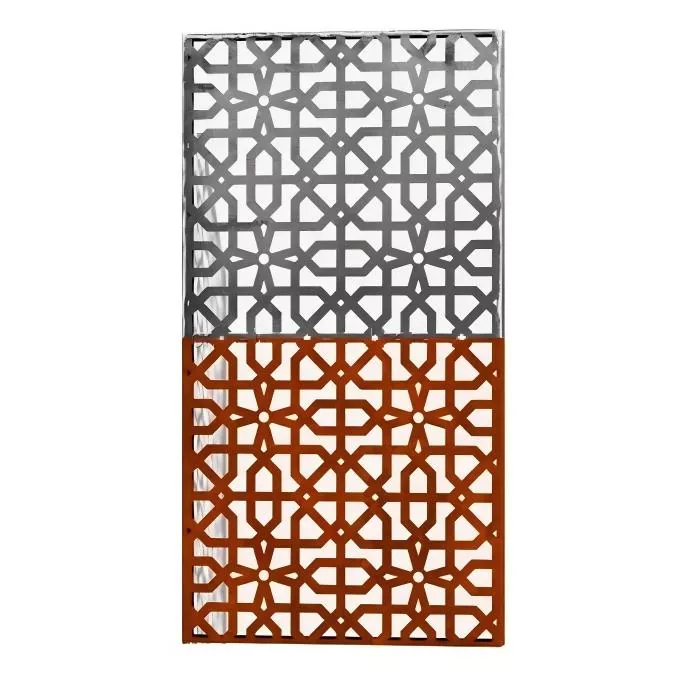

· Post-Galvanizing Coating: Optional architectural polyester powder coating (60-80μm) for color retention. Standard RAL colors or custom matching.

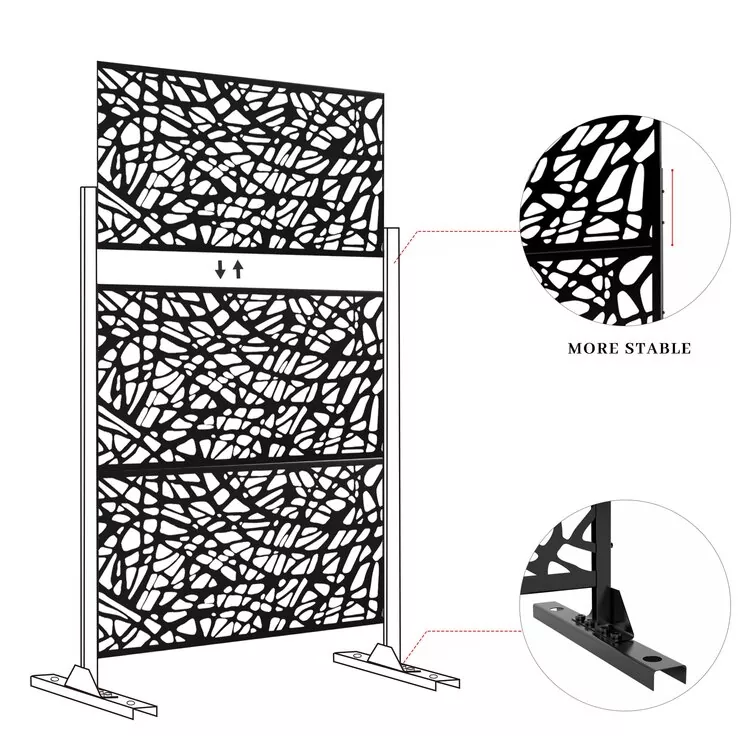

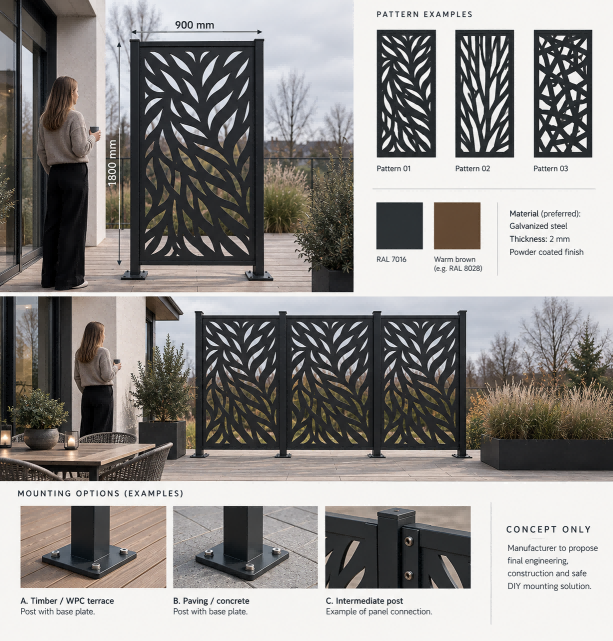

· Base Plate Options: Welded flange with anchor holes, or heavy-duty freestanding feet for non-penetrating installations on rooftops.

· Reinforcement: Internal steel stiffeners or folded edges to prevent oil-canning on large panels.

Typical Applications & Regional Suitability

This freestanding metal privacy screen is particularly effective in challenging climates. We supply extensively to projects in the Middle East (high UV, sand abrasion), Southeast Asia (high humidity, salt air), and coastal North America (hurricane zones). The galvanized base prevents the rapid degradation seen in untreated metals in these areas.

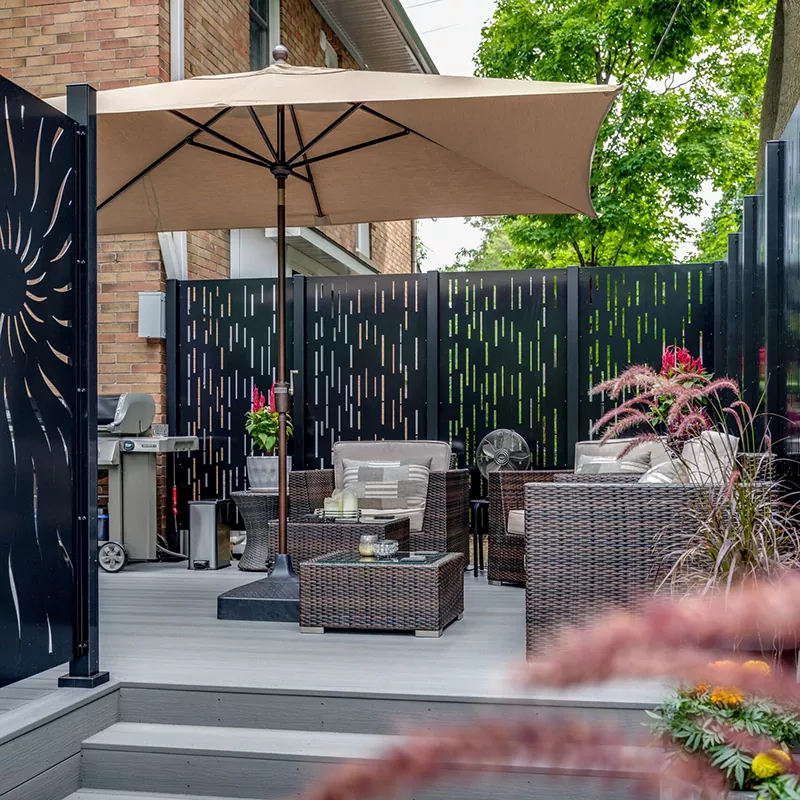

· Rooftop Terraces: Non-penetrating base plates protect waterproofing membranes.

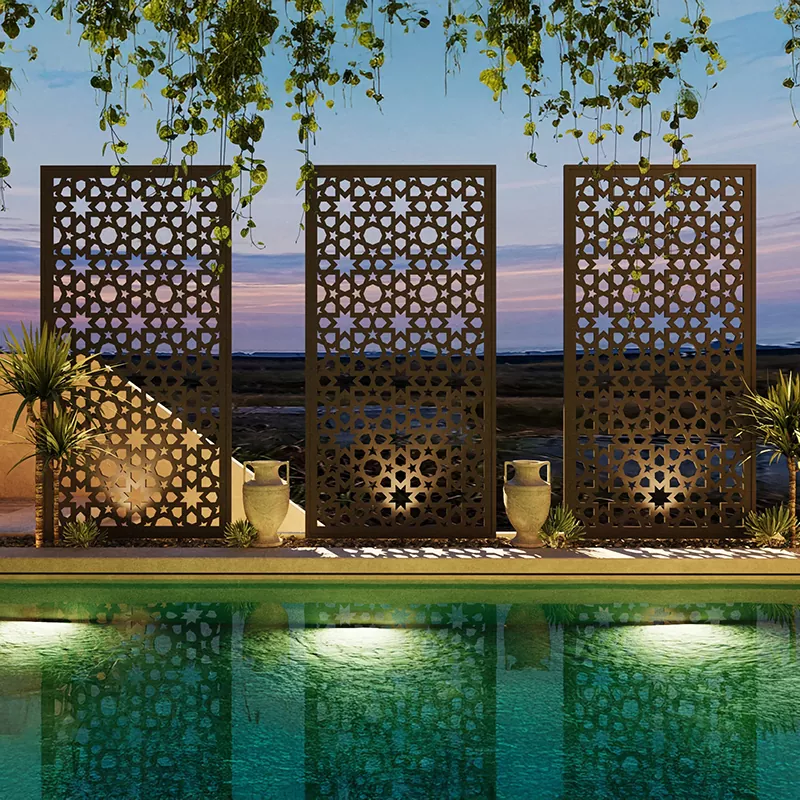

· Pool Equipment Enclosures: Excellent resistance to chlorinated water splash.

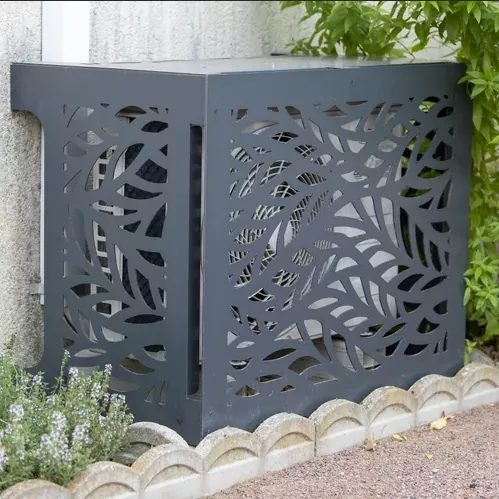

· Commercial HVAC Screening: Allows airflow while providing visual concealment.

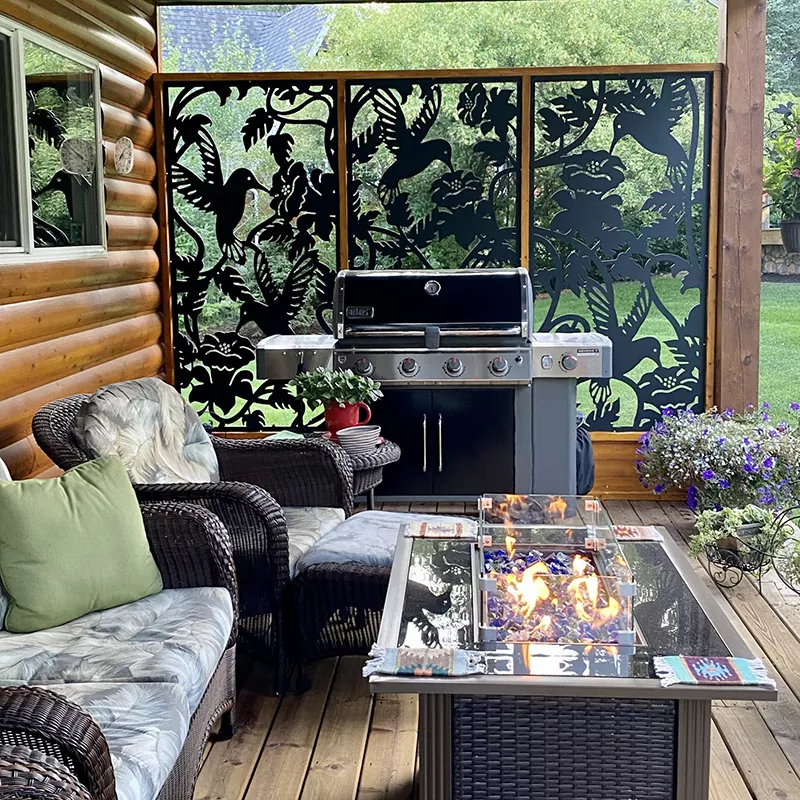

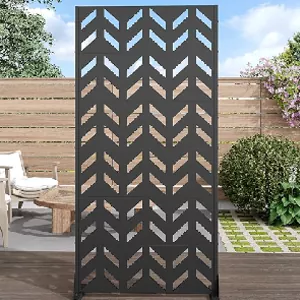

· Residential Perimeter Fencing: Decorative privacy without sacrificing security.

Technical Specifications (Standard Configurations)

Note: As a China Factory, we can adjust dimensions to match imperial equivalents (e.g., 6ft x 3ft).

Installation & Maintenance Guidance

Installation Process

Our products are designed with on-site installation efficiency in mind. The installation time for a standard freestanding screen panel is typically within 20 minutes. The main steps include:

· Step 1: Mark the base position at the installation site and clear the surface debris

· Step 2: Secure the base plate to the ground using the provided anchors, or assemble the weighted base

· Step 3: Insert the screen panel into the base and tighten the connection bolts

· Step 4: For multi-panel combinations, lock adjacent panels together using connector brackets

We provide detailed installation drawings and video guides. For bulk orders, on-site installation supervision by our technical staff can be arranged.

Routine Maintenance

Maintaining galvanized steel privacy screens is remarkably simple. Regular upkeep involves:

· Wipe the surface quarterly with a neutral detergent and soft cloth to remove dust, bird droppings, and other contaminants

· Inspect base fasteners for loosening and re-tighten as needed

· Apply touch-up paint to any coating scratches to prevent corrosion spread

Who Specifies These Screens?

· Landscape Architects: Specifying for public plazas and rooftop gardens.

· Commercial Contractors: HVAC screening for shopping malls and hotels.

· Importers & Distributors: Looking for a reliable Supplier of bulk container loads with consistent quality.

· Facility Managers: Replacing rusted mild steel screens in parking garages or mechanical yards.

Vionta Metal serves as your OEM/ODM partner. We provide DXF drawing review, sample approval before mass production, and pre-shipment inspection reports with each order.

Frequently Asked Questions

Q1: Is the galvanized finish compliant with international safety standards for public use?

Yes. The substrate meets ASTM A653 / EN 10346 for coating weight and adhesion. For public spaces, we usually recommend the optional powder topcoat over the galvanizing. This duplex system is compliant with AAMA 2604 (for architectural finishes) and does not release harmful VOCs during use. The panels are non-combustible, achieving a Class A fire rating per ASTM E84. We provide mill certificates and third-party test reports (SGS or BV) with each container.

Q2: Can I customize the pattern and dimensions? What is the MOQ for a specific design?

Absolutely. We are a China Manufacturer with in-house laser cutting, bending, and welding. You can send us a DXF, AI, or even a sketch. For a new pattern, the MOQ is typically 50 units per size (about 100 square meters), and there is a one-time artwork conversion fee (often waived for repeat orders). For stock patterns (geometric, leaf, wave), the MOQ is as low as 10 units. We can also produce samples (1-2 pieces) at a prototype rate before you commit to bulk.

Q3: What is the actual service life, and how does it compare in terms of maintenance cost to wood or aluminum?

In a C3 (urban/industrial) environment, a galvanized steel screen with a powder topcoat will last 20-30 years before needing any major refinishing. In a C5-M (marine) environment, expect 15-20 years. Maintenance cost is near zero for the first decade. Compare this to wood, which requires sealing every 1-2 years, or aluminum, which may look acceptable but develops white oxidation pitting and loses structural stiffness over time. If you ever need to refresh the color, you can simply scuff the old powder coat and re-coat it—the galvanized layer underneath remains intact.

Partner with Vionta Metal for Your Next Project

Vionta Metal is a manufacturer specializing in the R&D and production of outdoor metal products, located in a major metal manufacturing hub in China. Our core product lines include galvanized steel privacy screens, aluminum pergolas, and various complementary outdoor structural components. Our products are exported to markets across North America, Europe, Australia, and Southeast Asia. We warmly welcome global clients to discuss custom orders and establish long-term partnerships. Please feel free to send us your project drawings or a brief description of the site environment; Vionta Metal will provide product specifications, a quotation (EXW, FOB, or CIF), and a production schedule within 24 hours.
