Retractable Porch Awnings from Vionta provide flexible shade and protection for porch outdoor living spaces. As a professional China manufacturer and factory, we deliver high-quality awning systems designed for durability, ease of use, and weather resistance.

Know the Difference

Porch vs Deck vs Patio: Which Awning Do You Actually Need?

These three words get used interchangeably in product listings, but they describe meaningfully different spaces — and the right awning for each one isn't necessarily the same. Getting this right before sourcing matters, because the mounting method, housing type, and ideal projection depth all vary.

Feature	Porch	Deck	Patio
Definition	Covered entry structure attached to building	Raised open platform, usually wood or composite	Ground-level paved outdoor area
Existing overhead cover	Often partial (roof overhang)	Usually none	Usually none
Typical headroom	2.2–2.8m (tighter)	2.4–3.5m (more open)	2.4–3.5m
Facade visibility	High — affects building appearance	Moderate	Moderate
Recommended housing type	Full-Cassette or Semi-Cassette	Open or Semi-Cassette	Open or Semi-Cassette
Typical width range	1.5m – 4.5m	2.5m – 7.0m	2.0m – 6.0m
Typical projection range	1.0m – 2.5m	2.0m – 4.0m	1.5m – 3.5m
Installation priority	Clean finish, low profile, clearance	Structural load, span coverage	Coverage area, ease of install

Why does a porch need a professional sunshade?

The porch is a crucial space that connects indoor and outdoor spaces. It not only affects the overall aesthetics of the house, but also relates to the comfort of living. In the hot summer, direct sunlight can make the porch area stuffy and unbearable, while sudden rainfall may catch you off guard. The Vionta Retractable Porch Awning is designed to address these issues. You can flexibly adjust the extension range of the sunshade according to the weather conditions and precisely control the light and shadow effects. Whether welcoming guests or daily entry and exit, one can enjoy a comfortable and pleasant experience.

Retractable Porch Awnings

Its advantages include:

● Blocking direct sunlight, effectively reducing porch temperature

● Protecting porch furniture and floors from UV damage

● Providing protection during rainy days

● Enhancing the aesthetics of the building facade

● More convenient smart controls (sunlight/wind sensors)

Compared to fixed sheds, Retractable Porch Awnings can expand and contract in real-time according to weather conditions, making them more flexible, durable, and energy-efficient. Generally speaking, the Porch position is usually located further forward than the terrace and is more exposed to the wind. However, Vionta's high-performance materials ensure that the structure of Porch Awnings is more stable and suitable for use in windy areas

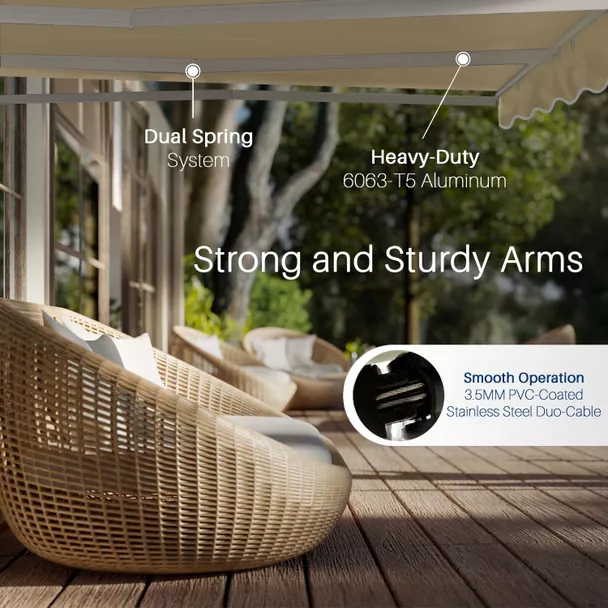

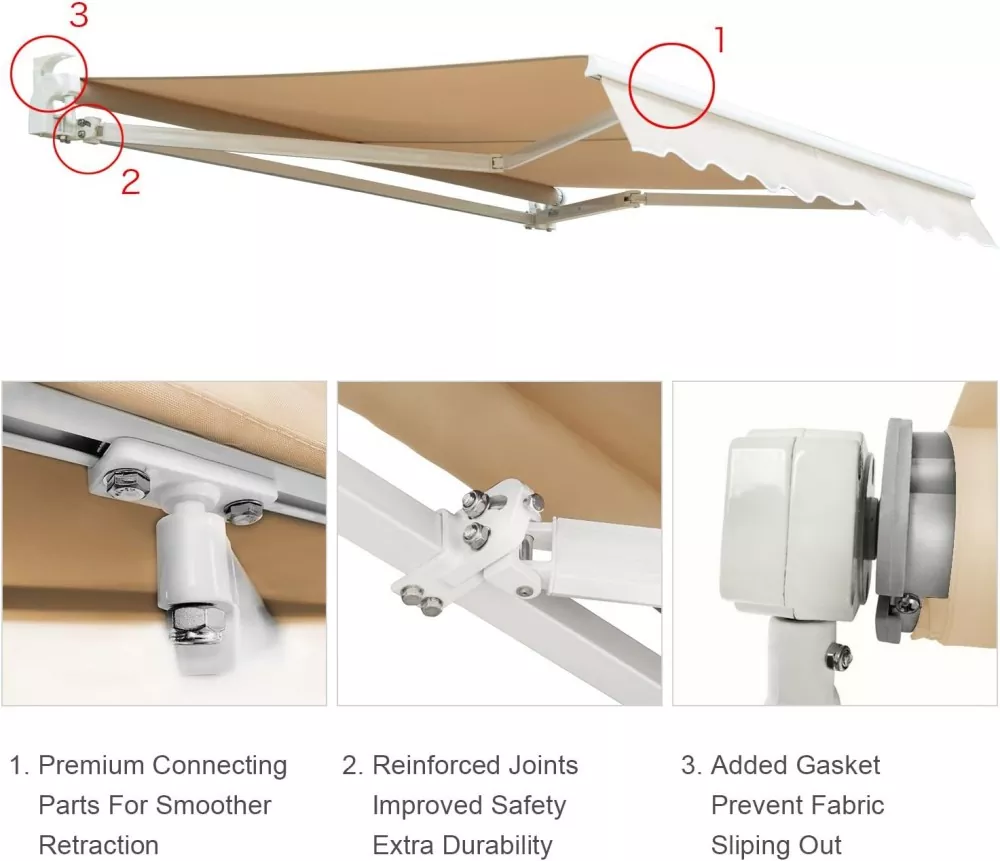

1. Pressure resistant aluminum alloy arm frame

2. Stainless steel double chain or quadruple chain

3. Thick walled aluminum profile frame

4. High torque spring system

5. Ensure stability and reliability in an open Porch environment.

Technical Specs

Full Technical Specification Table

Standard specifications for Vionta Metal's retractable porch awning range. Non-standard dimensions, drive configurations, and housing types are all available — contact the factory with your project requirements.

Category	Parameter	Standard Specification	Notes
Dimensions	Width	1.5 m – 4.5 m (standard)	Up to 6m with joined sections
	Projection	1.0 m – 2.5 m	Typical porch depth 1.5–2.0m
	Retracted depth — full-casing	18–24 cm	Fits most porch soffits
	Retracted depth — open type	15–18 cm	Slimmest profile option
	Pitch angle	0° – 45°	Set at installation
Frame & Housing	Material	Aluminum alloy 6063-T5	Extruded profile
	Wall thickness	≥ 1.8 mm	Commercial: 2.0mm+ available
	Surface finish	Outdoor-grade powder coating	RAL color matched
	Housing type	Full-Cassette / Semi-Cassette / Open	See §3 for selection guidance
Arm System	Arm type	Articulated folding arm	—
	Chain configuration	Double-chain / Quadruple-chain	Quad recommended above 3.5m width
	Spring material	Stainless steel high-torque spring	304 stainless hinge hardware
Fabric	Material	Acrylic / Solution-dyed acrylic / Polyester	—
	Weight	220 – 350 g/m²	—
	UV protection	UPF 50+ (≥95% block rate)	Complies with EN 13758
	Colorfastness	Grade 7–8	Solution-dyed: superior fade resistance
	Mildew resistance	Grade 3 and above	—
Drive System	Manual	Hand crank — recommended ≤3.0m wide	No power required
	Motor	24V DC tubular motor	Somfy or equivalent available
	Voltage	220V / 110V selectable	110V for North America
	Smart control	RF remote / App / Voice / Sensors	Zigbee / Wi-Fi module optional
Installation	Mounting methods	Wall / Ceiling-soffit / Roof mount	All hardware included
Installation	Min. mounting height	2.2m from ground	Add 20–25cm if door swings outward
Certifications	European market	CE / RoHS	LVD & EMC compliant motor
	Third-party testing	SGS	Test reports available
	North America	UL/ETL motor on request	Custom order basis
Ordering	MOQ	5 units (OEM negotiable)	Single-unit samples accepted
Ordering	Lead time	15–20 days standard / 25–35 days custom	Excluding public holidays

Installation Methods Explained:

During installation, Vionta can provide:

Vionta: Your Trusted Sunshade Product Partner

20 Years Factory

By choosing Vionta, you not only receive high-quality Retractable Porch Awnings, but also a reliable business partner. We combine innovative design, reliable quality, and competitive prices perfectly with our profound accumulation in the manufacturing industry in China. Whether you are a retailer looking to enrich your product line, a wholesaler in need of a stable supply source, or an engineering project party looking for a suitable supplier, Vionta can provide you with the most suitable porch shading solution.

FAQ

Frequently Asked Questions About Retractable Porch Awnings

My porch ceiling is only 2.3m high. Can I still fit a retractable awning?

It depends on the mounting method and housing type. Our slimmest full-casing models retract to 18cm depth, which means you'd need at least 18cm between the mounting point and the ceiling — leaving roughly 2.12m clear height beneath the extended awning front bar. That's workable for most people, though on the tighter side.

For very low ceilings (2.2–2.4m), we recommend either an open-type housing (retracted depth 15–18cm) or a ceiling/soffit mount rather than wall mount, which positions the awning higher and gains a few centimeters of effective clearance. Send us the exact ceiling height and door opening dimensions and we'll confirm which configuration fits your site before you order.

My front door swings outward. Will the awning get in the way when opening the door?

This is a common concern and the answer depends on the pitch angle and projection depth when the awning is extended. With standard pitch settings, the front bar of a 1.5m projection awning sits roughly 1.5–2.0m out from the wall — well clear of the door swing arc for most doors. The bigger clearance concern is the awning's mounting height: the front bar hangs below the mounting point at a downward angle, so the lower the mounting, the lower the front bar hangs at the door line.

To be safe: measure from your floor to the top of the door frame, add 15cm, and use that as your minimum mounting height. For outward-swinging doors, we also recommend setting the awning pitch steeper (30–40°) rather than shallow, which raises the front bar height at the door entry point and gives more clearance as you step through.

My porch faces north and doesn't get direct sun. Is a retractable awning still useful?

Yes, for three reasons beyond sun blocking. First, diffused UV radiation reaches north-facing surfaces even without direct sun — UPF-rated fabric still provides meaningful protection for skin and for porch furniture and flooring that would otherwise fade over years of indirect exposure. Second, a porch awning on a north-facing entry provides rain and drizzle protection, which is often the primary concern for UK, Northern European, and Pacific Northwest customers — keeping the entry dry while you search for keys is genuinely useful. Third, for enclosed or semi-enclosed porches, the awning adds a visual boundary that creates a sense of "outdoor room" even without shade being the functional need.
