A folding arm awning — also called a retractable arm awning or lateral arm awning — is an outdoor shade structure mounted to a wall, ceiling, or eaves where the fabric extends and retracts via a pair of articulated (folding) arms rather than fixed supports. The arms fold against the wall when retracted and pivot outward under spring tension when extended, holding the fabric taut at the chosen pitch angle without any front legs or support posts.

This wall-supported, freestanding-front design is what distinguishes a folding arm awning from a pergola awning or a straight drop blind. The result is unobstructed usable space underneath — no legs to trip over, no posts to work around — which is why the format dominates residential patio and deck shading in Europe and Australia, and is growing rapidly in North America.

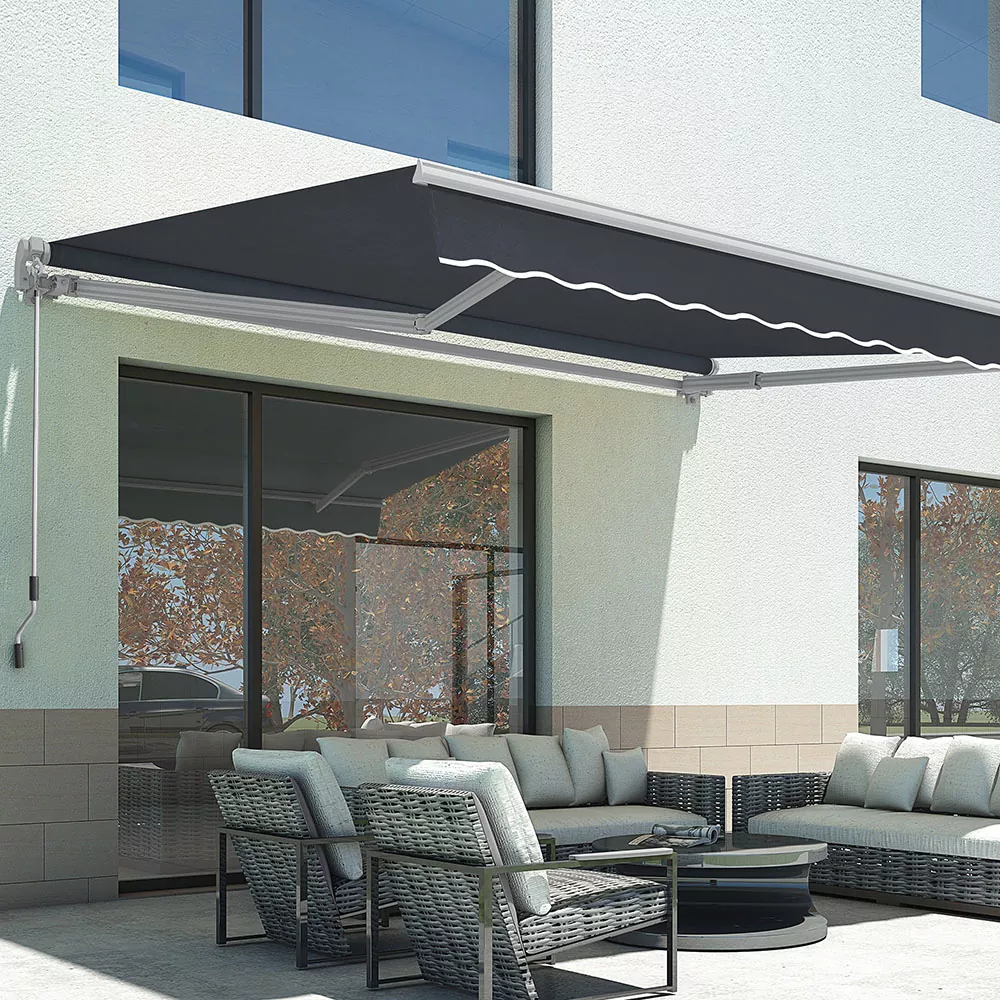

How the Arm Works: The Spring Tension System

The arm on a folding arm awning consists of two aluminum sections connected at a central elbow joint, with a high-torque steel spring running inside. When the awning is retracted, the spring is compressed. When extended, the spring releases tension that pushes the elbow joint outward, keeping the arm rigid and the fabric under consistent tension across the full projection. This tension is what stops the fabric from sagging or flapping in moderate wind.

Spring calibration matters: under-tensioned arms allow the fabric to sag in the middle; over-tensioned arms put excessive strain on the motor or crank mechanism and wear out the elbow joint faster. At Vionta Metal, spring tension is factory-set to match the specific fabric weight and arm length of each order — not a one-size-fits-all factory default.

These awnings also add visual appeal to your home. There are many colors and styles to choose from, making it easy to find a design that matches your house. In addition, they are more cost-effective than constructing permanent buildings such as terraces, balconies, or pergolas.

Product Types

Three Housing Types: Full Cassette, Semi Cassette, and Open

All three share the same folding arm mechanism. The difference is how the fabric roller and arm springs are housed when the awning is retracted — which affects appearance, fabric protection, price, and the right application for each type.

Full Cassette Awning

Most protective · Premium finish

The fabric roller, spring arms, and drive tube are completely enclosed inside an aluminum cassette housing. When retracted, only the rectangular cassette is visible — a clean, intentional look that suits building facades and front-facing installations.

Fabric is shielded from UV and dust when not in use, extending service life by an estimated 20–30% vs open type. Highest retail price point.

Best for: Premium residential patios, front porches, hotel and hospitality entrances, HOA-regulated communities.

View Full Cassette Awning specs →

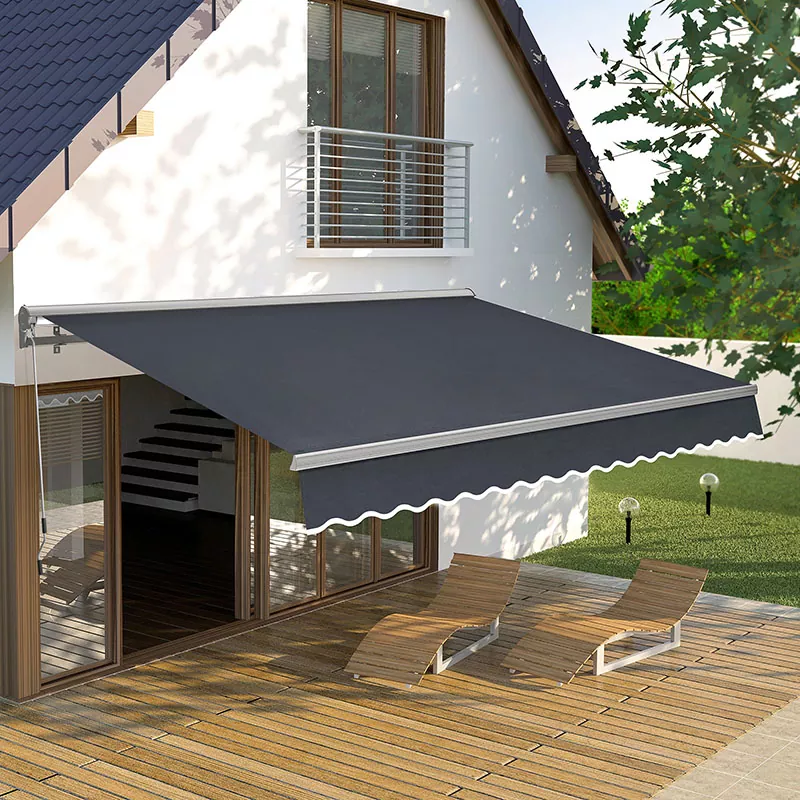

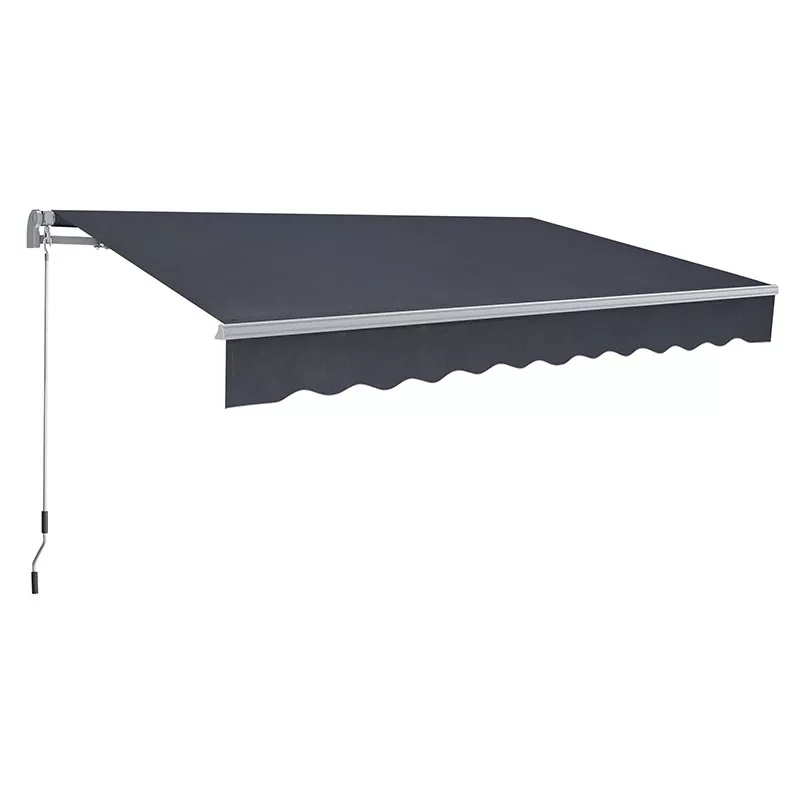

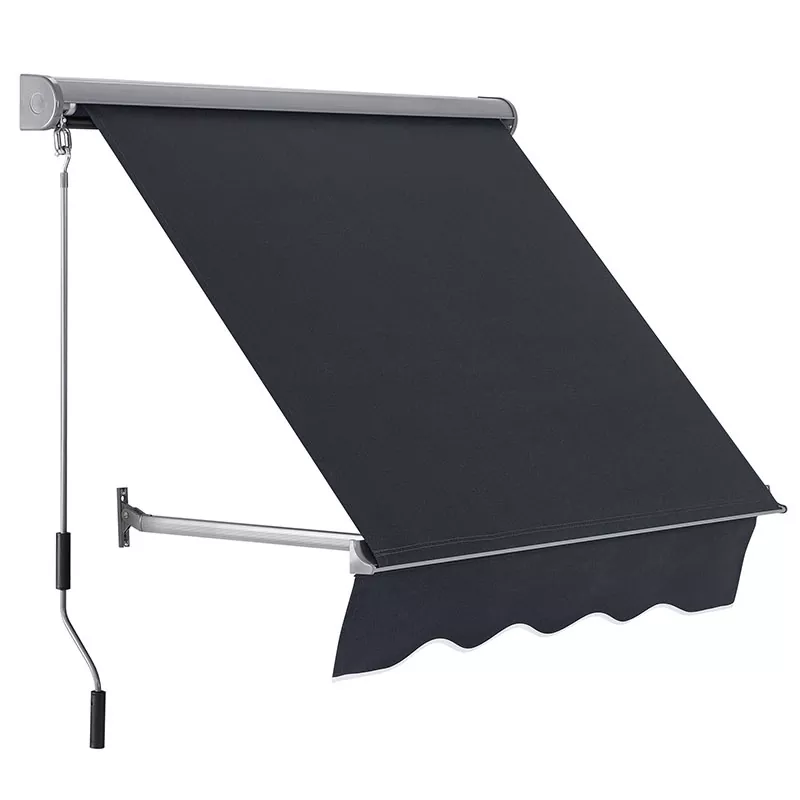

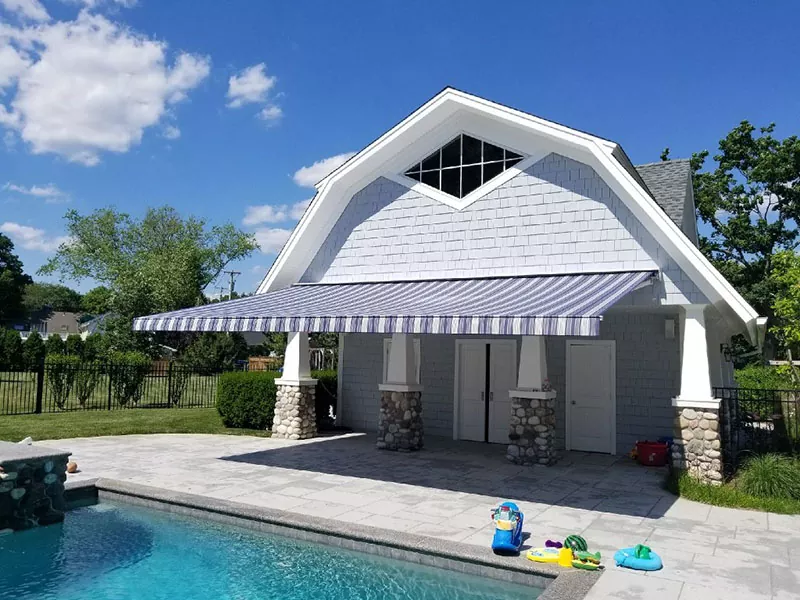

Semi Cassette Awning

Good balance · Most popular

A partial housing covers the top and rear of the roller, with the front bar partially exposed when retracted. Cleaner than open type, more cost-effective than full cassette. The most common choice for standard residential applications worldwide.

Provides moderate fabric protection. Front bar finish should match frame color for best visual result.

Best for: Standard residential decks and patios, commercial shopfronts, volume wholesale orders for mid-market retail.

View Semi Cassette Awning specs →

Open Cassette Awning

Most economical · No housing

No cassette housing — the fabric roll, arms, and spring mechanism are all visible when retracted. Simplest to service and lowest unit cost. Not the first choice where facade appearance matters, but well-suited to rear-of-house and commercial utility applications.

Fabric receives no protection when retracted. Service access is easier than cassette types.

Best for: Commercial cafes and restaurants, rear service areas, budget-priority residential, cost-sensitive wholesale.

View Open Cassette Awning specs →

How to choose the best manual retractable awning

When you know what to look for, choosing a suitable Folding Arm Awning will make it easier:

Think about the size of your terrace or outdoor area. Choose a sunshade that provides sufficient coverage without taking up space.

Search for fabrics that are UV resistant, waterproof, and fade resistant. Better materials have a longer lifespan and maintain their color and shape.

Ensure that the crank or strap system operates smoothly. A good Folding Arm Awning should be easy to open and close at any time.

Compare prices and features to find the best value. The ideal retractable awnings has durability, good functionality, and a reasonable price.

Remember these key points, you can choose a Folding Arm Awning or a house awnings that perfectly fits your outdoor space, provides good shading effect, and enhances your daily comfort

Product Technical Specifications

The following are examples of specifications for standard models from the Vionta factory, designed to help buyers quickly understand product performance.

Application Scenarios

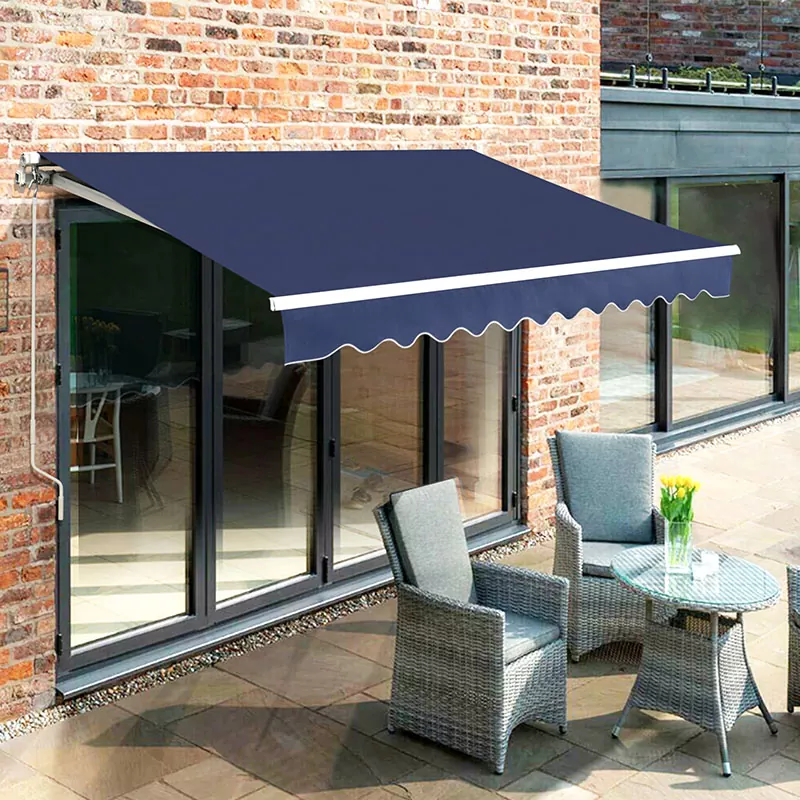

Residential Sector:

Commercial Sector:

Frequently Asked Questions About Folding Arm Awnings

1.What's the difference between a folding arm awning and a standard retractable awning?

"Retractable awning" is the broad category — it describes any awning that extends and retracts. "Folding arm awning" is a specific mechanism type within that category, defined by the articulated lateral arms that support the fabric from the sides without front legs. Other retractable types include vertical drop blinds, roof window awnings, and pergola retractable roof systems. When most people say "retractable awning" for a patio or deck, they mean a folding arm awning.

Yes — arm count is primarily determined by width. Standard residential awnings up to 3.5m typically use two arms (one at each end of the front bar). Awnings from 3.5–5.0m wide usually need three arms to prevent mid-span sag, with the third arm mounted centrally. For spans above 5m or projections above 3.5m, additional arms or a quadruple-chain arm configuration provides the structural rigidity needed to keep the fabric taut and the frame stable in wind.

When a supplier quotes a 6m awning with only two arms, that's a red flag — the front bar will deflect under its own weight and under light wind load, causing the fabric to pool water and sag permanently over time.

In most cases, yes — with caveats. The fabric roller tube in a manual awning is compatible with a motorized drive tube of the same diameter, and many folding arm awning frames are designed with this retrofit in mind. The main requirement is that the roller housing has sufficient internal diameter for the motor, and that a power outlet can be routed to the mounting location. The conversion typically involves replacing the roller tube and crank mechanism, which is a 1–2 hour job for a competent installer. Some cassette housing designs are easier to retrofit than others — if you're buying manual units with the expectation that customers may want to motorize later, confirm retrofit compatibility with the factory before ordering.

The key checks are wall material, depth of solid substrate, and the load per fixing point. Brick, concrete, and solid timber stud framing are all suitable substrates with appropriate anchor bolts. Hollow block, insulated cladding panels, and unsupported timber cladding are not — additional backing plates or structural supports are needed in those situations.

A typical residential folding arm awning (3m wide, 2.5m projection) exerts approximately 8–12kg per bracket point under normal use, rising to 25–40kg per bracket in Beaufort 6 wind conditions. Expansion bolts of ≥10mm diameter into solid masonry, or structural coach screws into timber studs ≥38mm thick, are the standard specification. We provide load specs per bracket with every order — always share these with the installation team before drilling.
