Aluminum Patio Railing

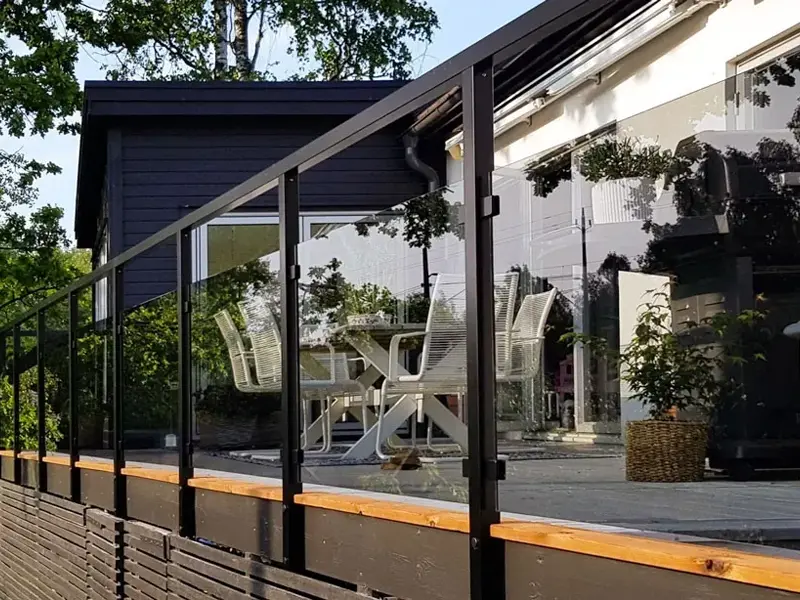

Vionta metal’s aluminum patio railing series covers a variety of structural types: horizontal aluminum strip railings, aluminum columns+tempered glass panel combinations, horizontal tube aluminum railings, and custom decorative railings. All products support OEM/ODM customized development, and specifications and surface treatment solutions can be customized according to customer drawings or local building regulations.

Why Choose Aluminum Patio Railing

In the selection of outdoor metal railing materials, aluminum alloy has become the mainstream in the global market because it achieves the optimal balance between durability, weight, maintenance cost, and appearance. The following points are highly valued by both the purchaser and the construction party:

● Strong Corrosion Resistance: Aluminum alloy itself has natural oxide film protection. After electrostatic powder coating treatment, its service life can reach more than 25 years in humid and strong ultraviolet outdoor environments along the coast, fundamentally eliminating rust problems.

● Low Full Cycle Maintenance Cost: No need for regular painting or rust prevention treatment, daily rinsing with clean water can maintain the appearance, suitable for long-term property management of large residential communities or commercial projects.

● Modern Appearance and Flexible Customization: Aluminum profiles can achieve various cross-sectional shapes, combined with rich powder coating color schemes (supporting RAL standard color cards), to meet the strict requirements for appearance consistency in high-end residential, resort hotel and other projects.

● Environmentally Friendly and Recyclable: Aluminum materials are 100% recyclable, meeting the certification requirements for green building materials in mainstream European and American markets, and helping projects apply for green building ratings such as LEED.

Product Core Features and Application Scenarios

Core Features

● Alloy Material: Made of 6063-T5 or 6061-T6 aluminum alloy, with high strength and good ductility, suitable for various structural stress requirements

● Surface Treatment: standard electrostatic powder coating, film thickness ≥ 60 μ m; Optional anodizing treatment to meet higher weather resistance requirements

● Connection Structure: Adopting a hidden connector design, the appearance is neat, and there are no obvious exposed screws after installation

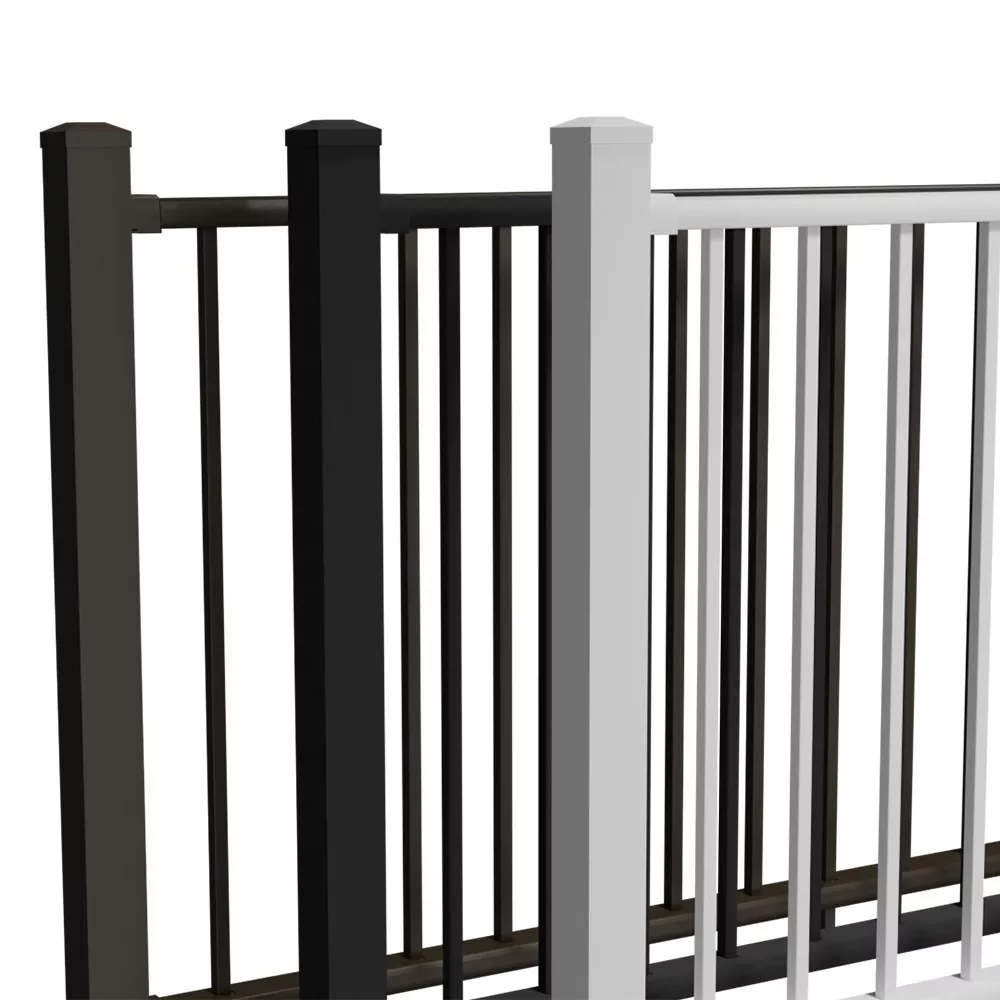

● Color Selection: Standard colors include matte black, antique bronze, champagne gold, pure white, and silver gray; Support RAL custom colors

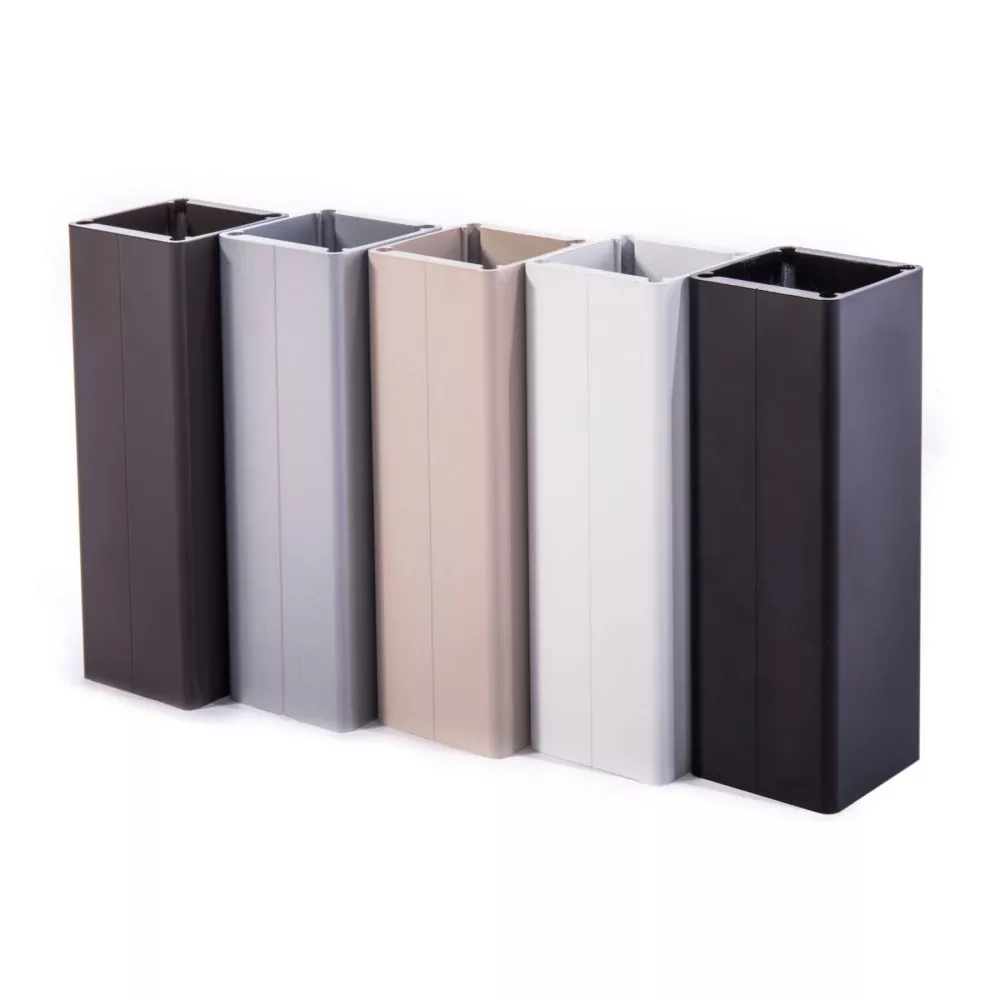

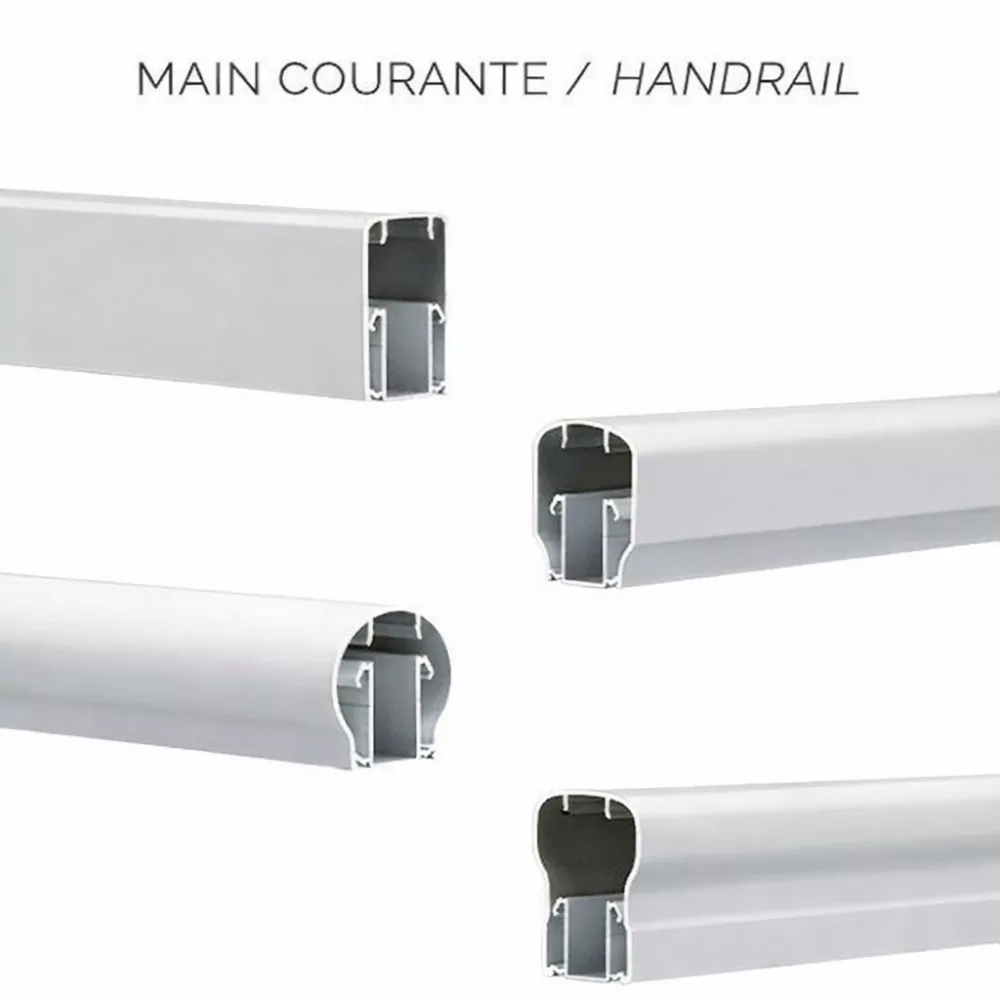

● Section Specifications: The column section is usually 50 × 50mm or 60 × 60mm, and the specifications of the crossbar and handrail can be customized according to the project

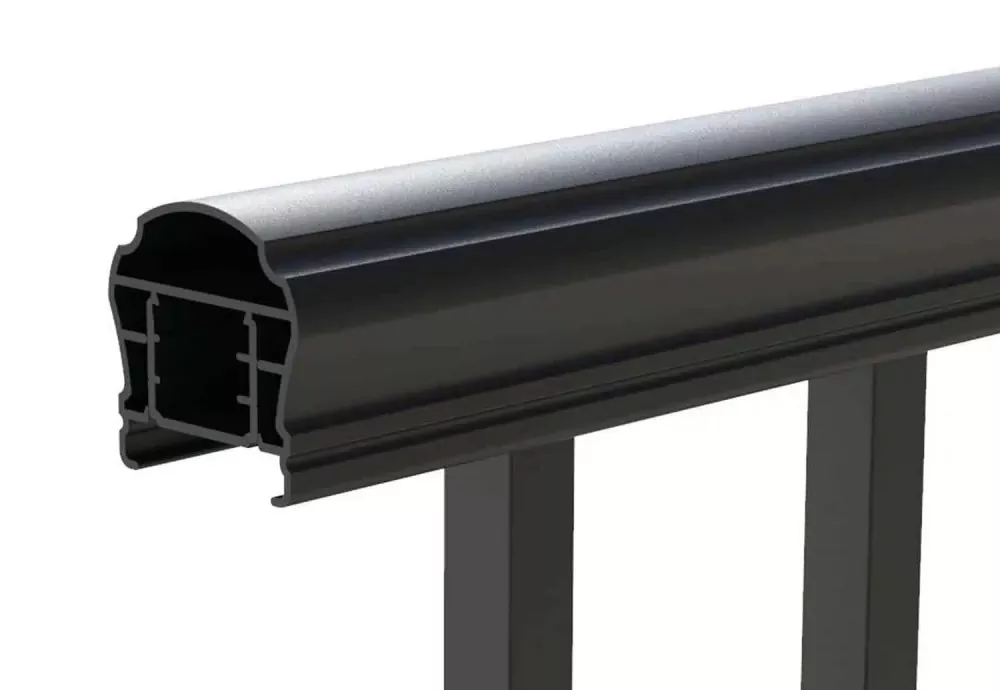

● Anti Slip Armrest Design: The top armrest can be treated with anti slip patterns, which meets the requirements of accessibility design (ADA)

Typical Application Scenarios

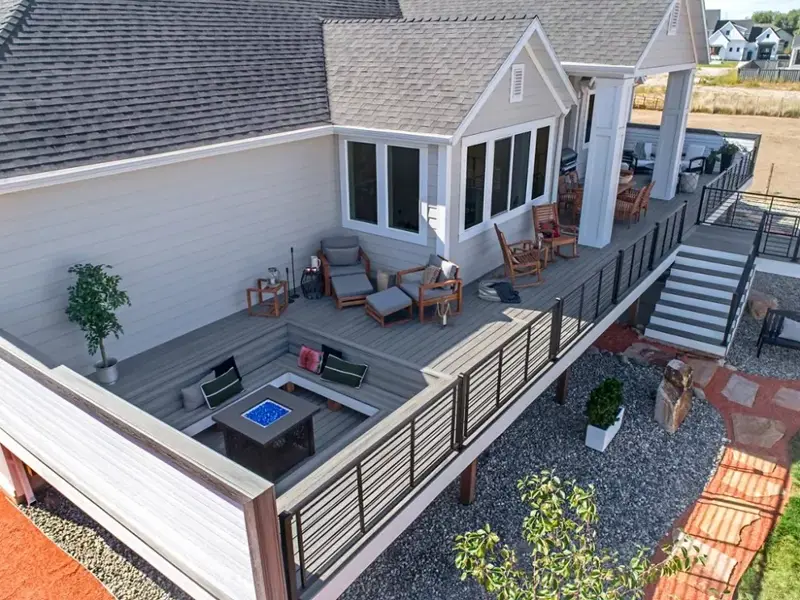

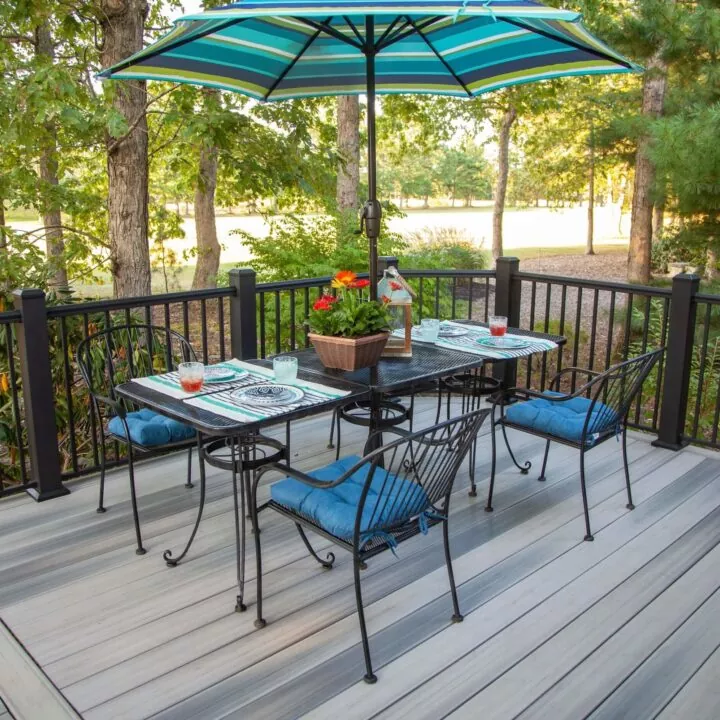

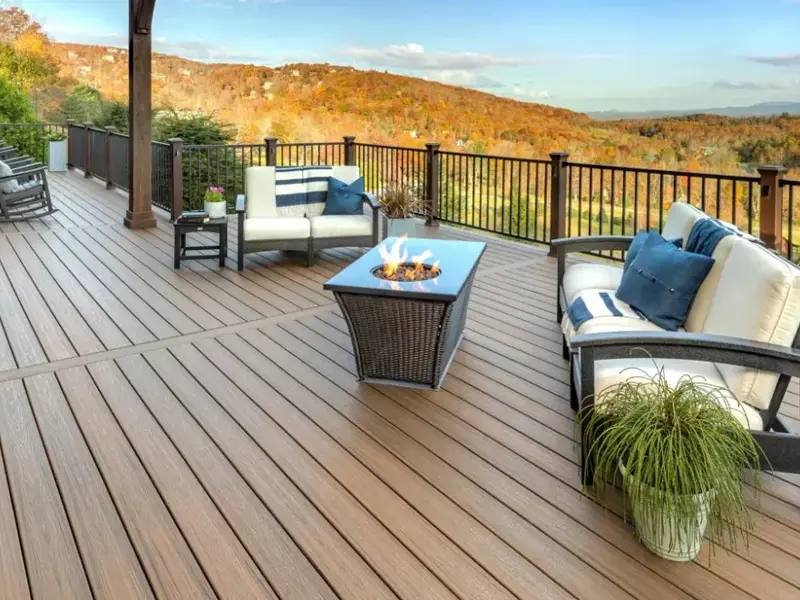

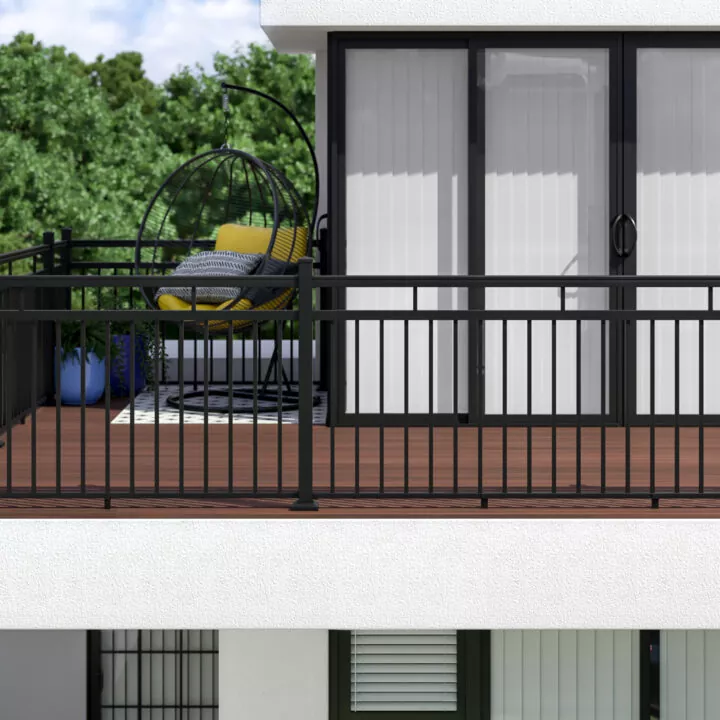

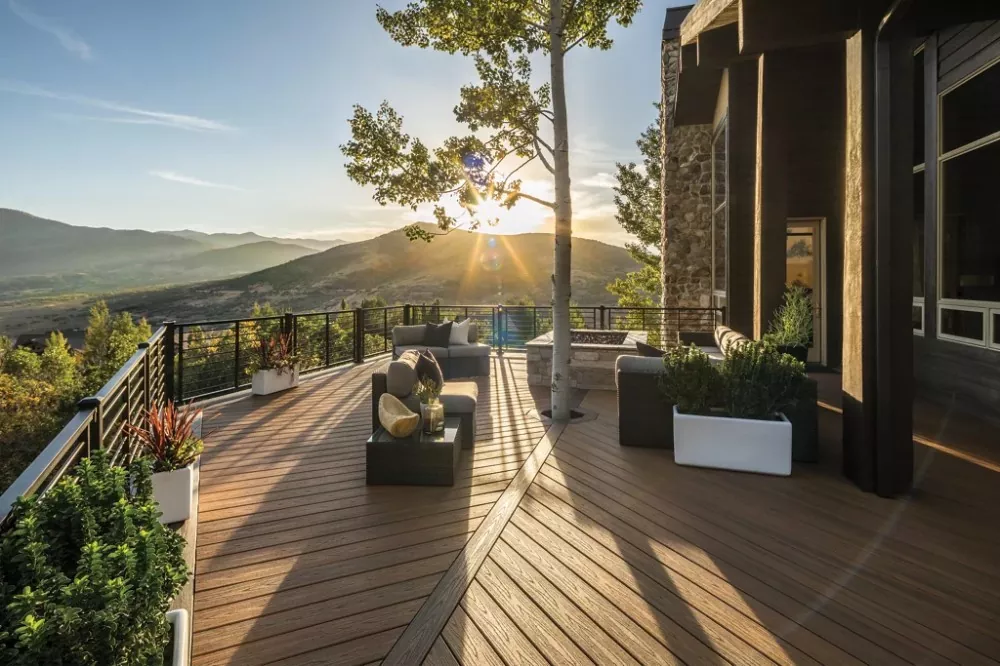

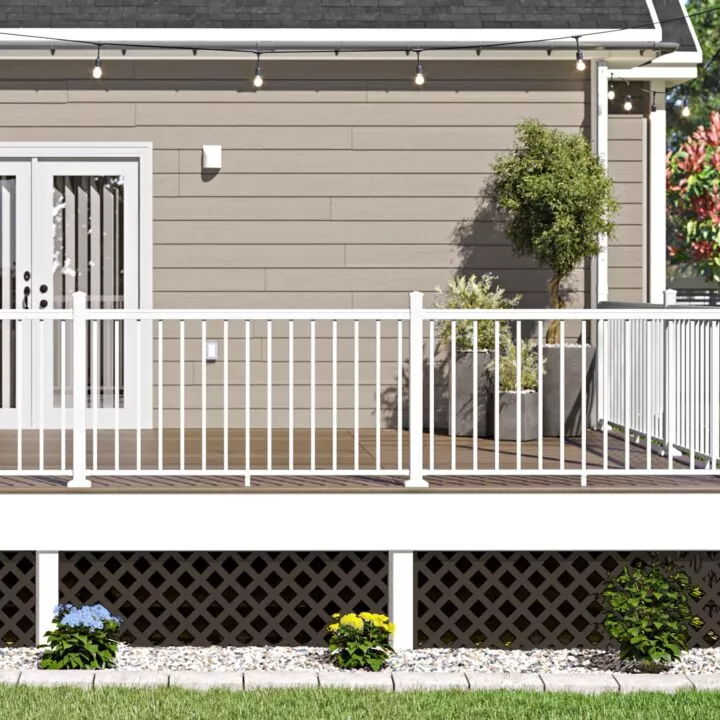

● Residential Terraces and Balconies: Outdoor platform enclosures for modern residences, villas, and townhouses, emphasizing both appearance and safety

● Commercial Building Corridors: Fall protection barriers for public areas of hotels, shopping malls, and office buildings, required to meet building code load standards

● Pool Fence: Strong resistance to chlorine corrosion, meeting the safety height and permeability regulations of swimming pools in various countries

● Landscape Trails and Public Facilities: Parks, seaside trails, municipal squares, and other scenes that require high durability and low maintenance

● Stair Handrail System: Indoor and outdoor stairs are equipped with aluminum alloy handrails, which can be combined with glass and stainless steel columns

Comparison Of Advantages Between Aluminum Railings And Other Materials

Installation and Maintenance Guidelines

Installation Overview

The original intention of Vionta Metal's aluminum patio railing design is "Easy Installation".

1. Layout positioning: Measure the center distance of the columns according to the design drawings.

2. Fixed column: Use expansion bolts or wooden screws to fix the column to the ground through a pre drilled base.

3. Connecting the Crossbeam: Use specialized connectors or brackets to connect the crossbeam to the column.

4. Install Filling Components: Insert the handrails into the reserved holes on the crossbeam.

5. Check Reinforcement: Install caps and decorative parts to ensure overall stability.

Maintenance Recommendations

Due to the stability of aluminum, you only need to perform two simple cleaning operations per year. Use a neutral cleaner combined with a soft cloth to wipe off surface dust, avoiding the use of strong acids, alkalis, or metal brushes to protect the gloss of the sprayed layer.

Why Choose Vionta Metal As Your Partner?

As a professional aluminum railing supplier, Vionta Metal provide not only products but also full process engineering support.

• Quality Control: There are a total of 12 quality inspection processes from raw material storage to finished product packaging.
• Technical Support: Our engineering team can provide you with free CAD disassembly services to ensure zero errors during on-site installation.
• Price Advantage: Factory direct sales, eliminating intermediate links, leaving profit margins for partners.
• Brand Reputation: Years of experience serving overseas markets have enabled us to better understand the risk points and compliance requirements of international trade.

If you are planning your next aluminum patio railing project or wish to upgrade your product supply chain, Vionta Metal is always ready to provide you with professional technical support and pricing solutions.

Do you need to obtain a quotation or view samples for a specific project?

Vionta metal can arrange to send you our latest product catalog or conduct preliminary cost accounting based on your drawings.
