Adjustable Louvered Aluminum Pergola

What Makes This Pergola Different

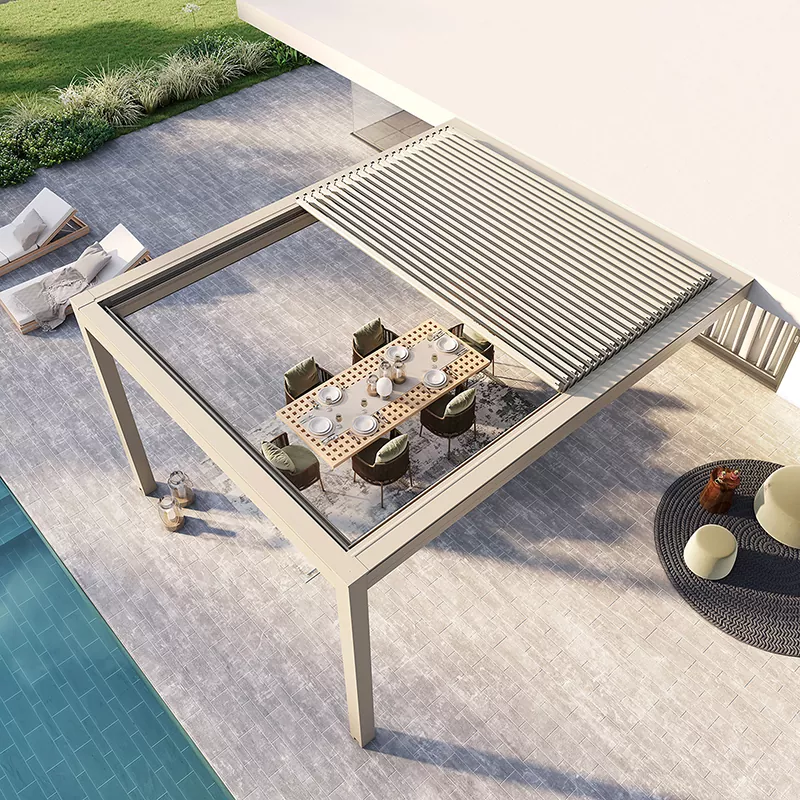

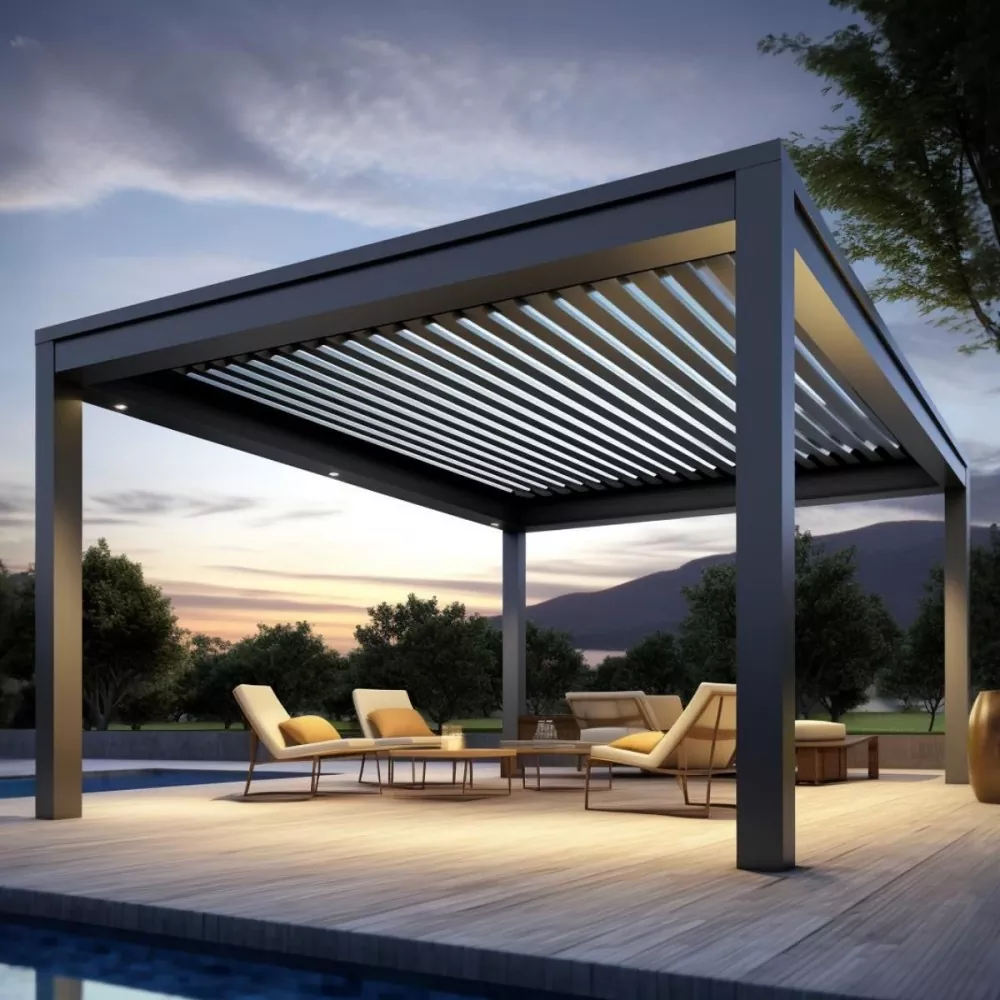

Most outdoor structures force a compromise: a fixed roof keeps the rain out but traps heat and kills airflow; an open pergola lets the breeze through but leaves you at the mercy of the weather. The adjustable louvered aluminum pergola doesn't ask you to choose. The motorized aluminum blades rotate between 0° (fully open) and 135° (fully closed, rain-shedding position), so one structure handles clear summer afternoons, drizzly evenings, and everything in between.

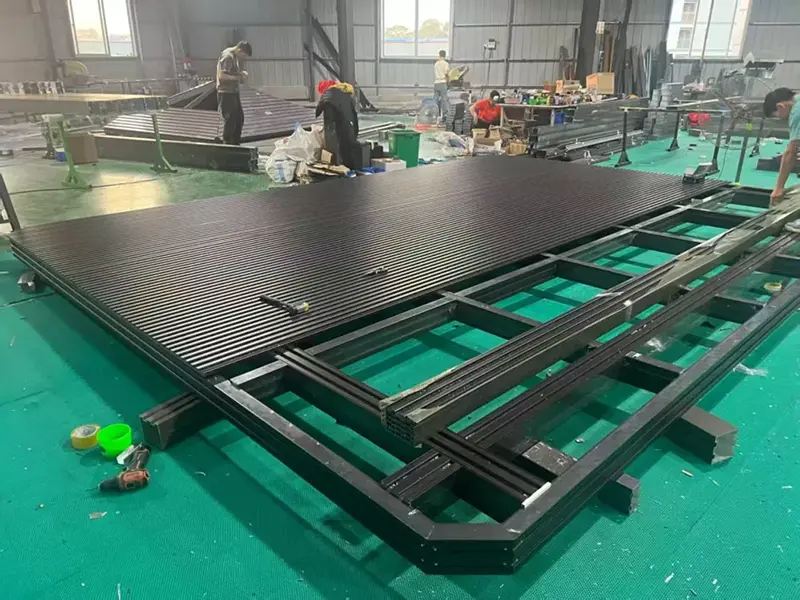

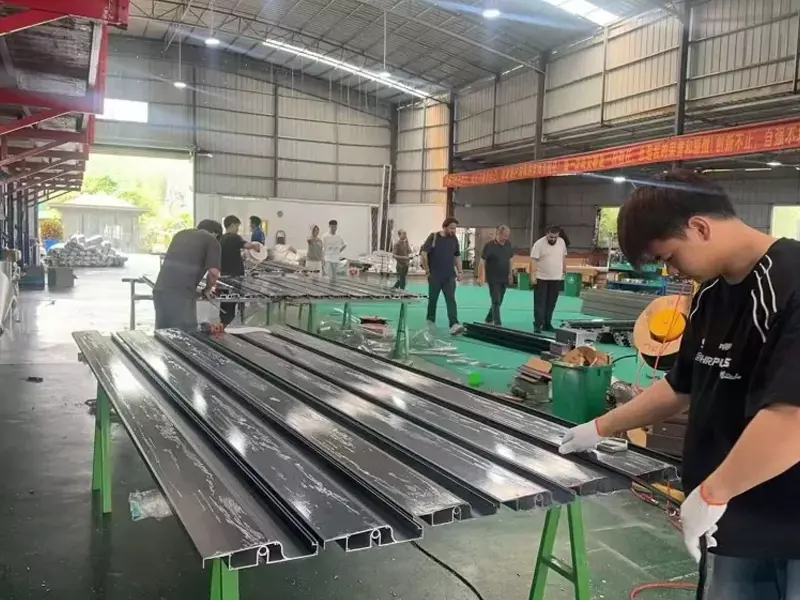

At Vionta Metal, we manufacture every component in-house — extrusion, surface treatment, motor assembly, packaging — as a source supplier and factory we export directly to contractors, distributors, and developers worldwide. There's no middleman in our supply chain, which means shorter lead times, tighter quality control, and pricing that reflects actual factory cost.

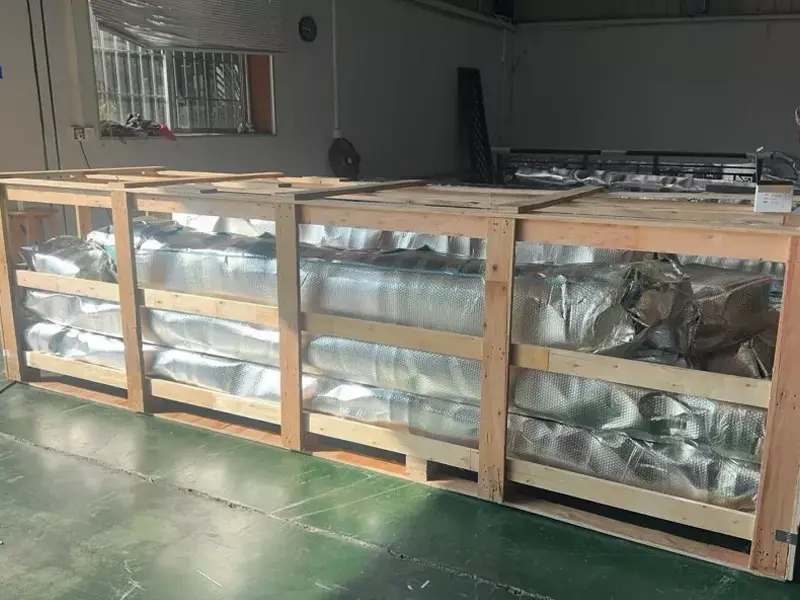

Direct from our factory: Every unit ships with a numbered installation drawing set, hardware kit, and English assembly manual. Standard colors ship in 15–20 working days. Custom sizes and finishes typically add 3–5 days.

Six Reasons Buyers Keep Coming Back

When you're sourcing an aluminum pergola for a project, the specs on paper rarely tell the whole story. Here's what actually matters in practice.

On Demand Control Of Blinds

The electric rotation range of the adjustable louvered aluminum pergola is 0 ° to 135 °. Optional wall switch, wireless remote control, or mobile application control.

High Sealing Performance, 100% Waterproof

The staggered blade contours guide rainwater into the hollow column and discharge it from the bottom - silently and without dripping below.

Effective Control Of Temperature Difference

Tilting the blades can reduce solar heat by up to 70% while ensuring free air circulation.

Almost No Maintenance Required

Aluminum will not rust or rot. Powder coating surface treatment can last for more than 10 years without the need for repainting - this is a significant advantage compared to wooden structures.

Scalable To Any Project Scale

The single span ranges from 3 × 3 meters to 8 × 6 meters; Suitable for multi span configuration of large commercial terraces. Customized size is a regular option and not a special requirement.

Smart Home Ready

Optional Wi Fi, turn off the connection of rain, wind, and light sensors to achieve fully automated operation.

How It Stacks Up Against Other Structures

Core Product Features and Where It's Used

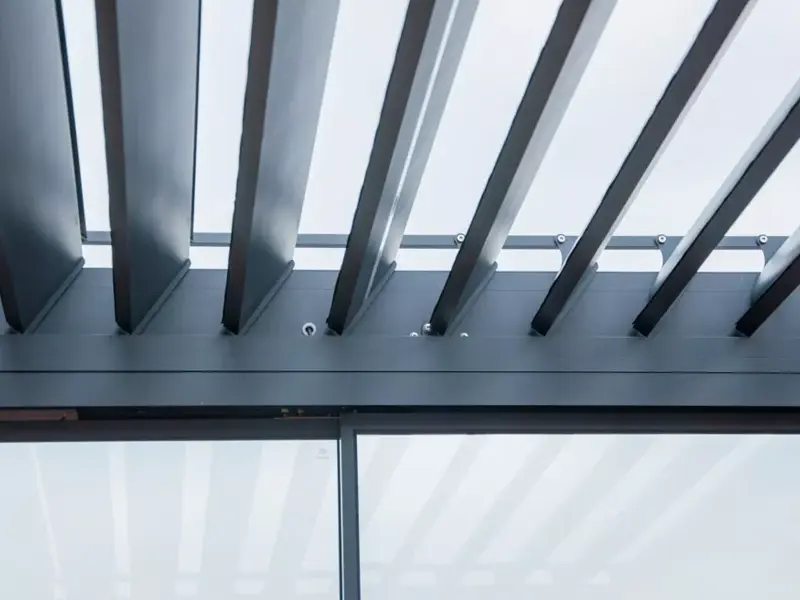

Blade system

— Profile: 6063-T5 aluminum extrusion, double-wall hollow section, 1.4 mm wall thickness. Available in 120 mm, 150 mm, and 200 mm widths depending on span and load requirements.

— Waterproofing: Interlocking rubber tip seals form a watertight interface in the closed position. Water drains into hollow columns via integrated internal channels — no exposed gutters.

— Drive system: Single 24 V DC gear motor per bay, IP65-rated, with built-in torque-limit protection. Manual override included on all motor units.

Frame and column construction

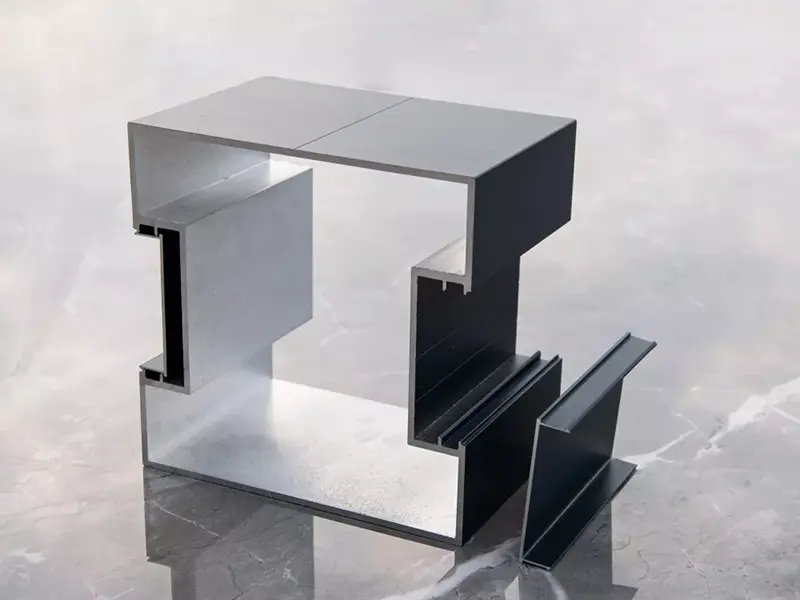

— Columns: 100×100 mm or 150×150 mm square hollow section, 2.0 mm wall (residential) or 3.0 mm wall (commercial / high-wind zones). Internal 50 mm drain pipe runs the full column height.

— Beams: 150 mm or 200 mm depth, selected by span. All joints use CNC-machined aluminum connectors — no exposed hardware on the visible face, no site welding required.

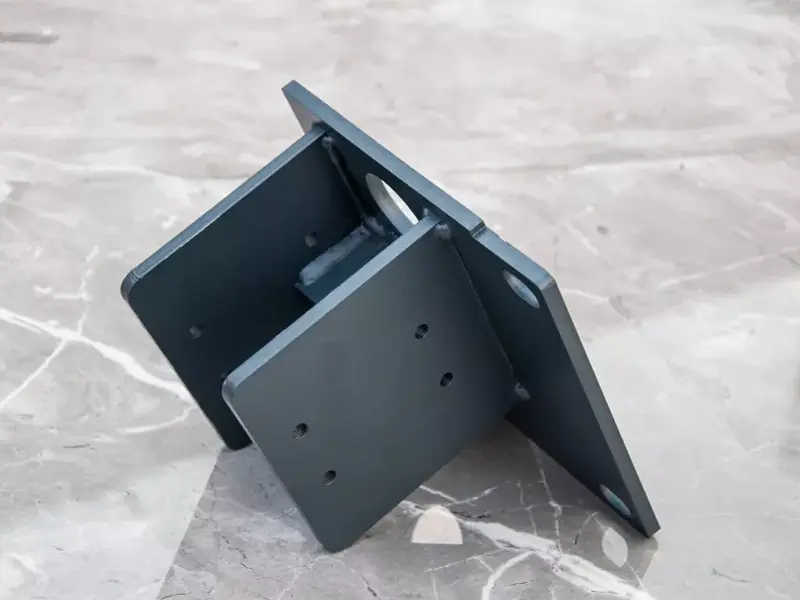

— Foundation: Anchor base plate with M12 stainless steel bolt kit included. Bolt layout drawing ships with every order.

Surface treatment

— Standard finish: TGIC polyester powder coat, 60–80 µm film thickness, tested to 1,000 hours salt spray (ASTM B117). Standard colors: RAL 9005 Jet Black, RAL 9010 White, RAL 7016 Anthracite — custom RAL on request.

— Optional finishes: Sublimation wood-grain printing (walnut, teak, oak, cedar); Type II anodizing in silver, champagne, bronze, or black.

Control and automation

— Wall-mounted 2-button switch (IP44, included) and 433 MHz RF remote with 15 m range (included)

— Optional Wi-Fi gateway: 2.4 GHz, Tuya / Smart Life compatible, iOS and Android app control

— Optional sensor pack: rain sensor auto-closes blades; wind sensor parks blades at 0° above a set speed threshold; sun sensor adjusts angle by time of day

— All wiring runs at 24 V DC — no high-voltage exposure within the pergola structure

Optional add-ons

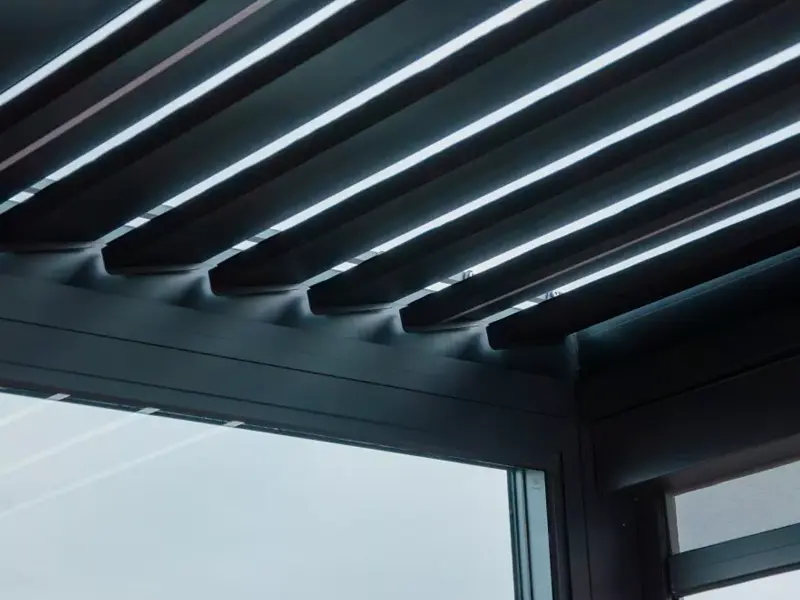

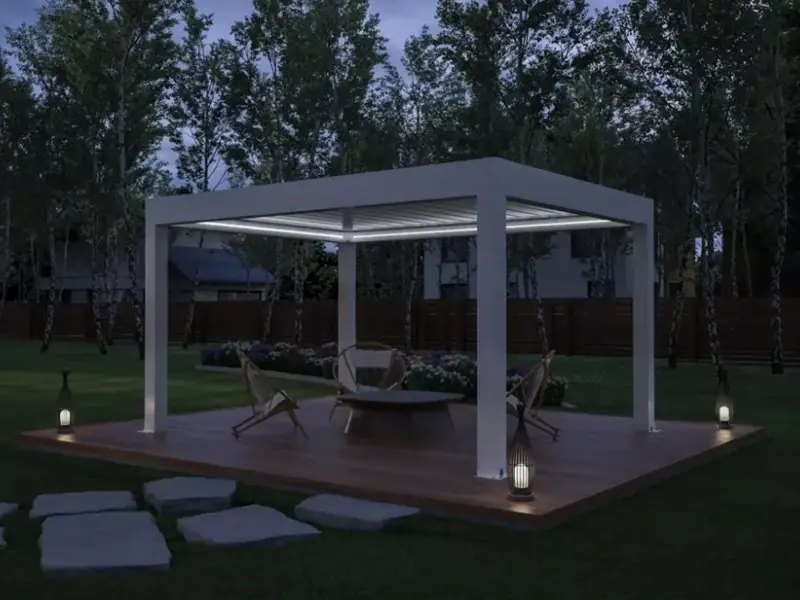

— LED strip lighting integrated into the beam underside

— Infrared patio heater mounts (1,500 W or 2,000 W per unit)

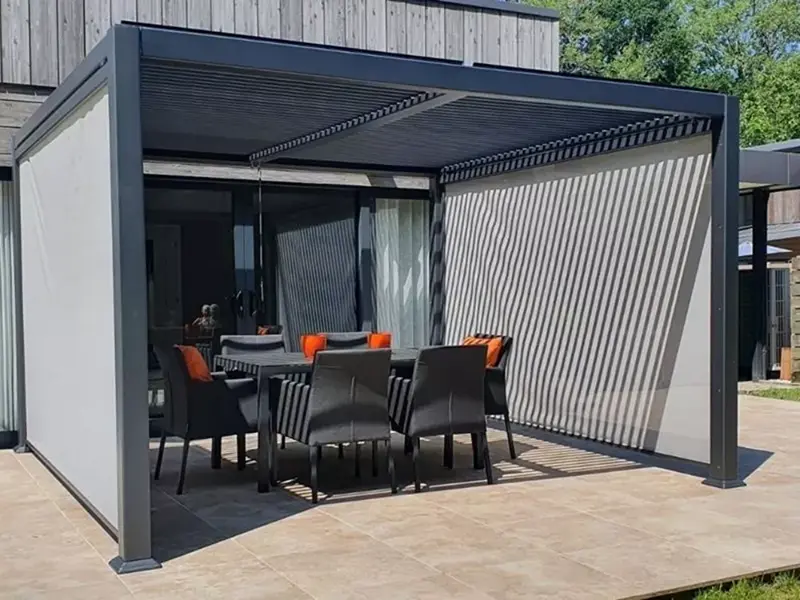

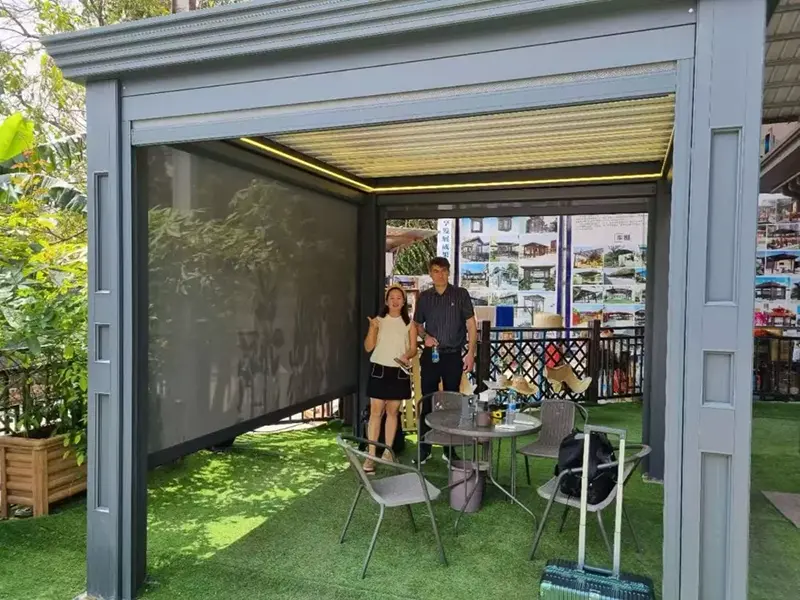

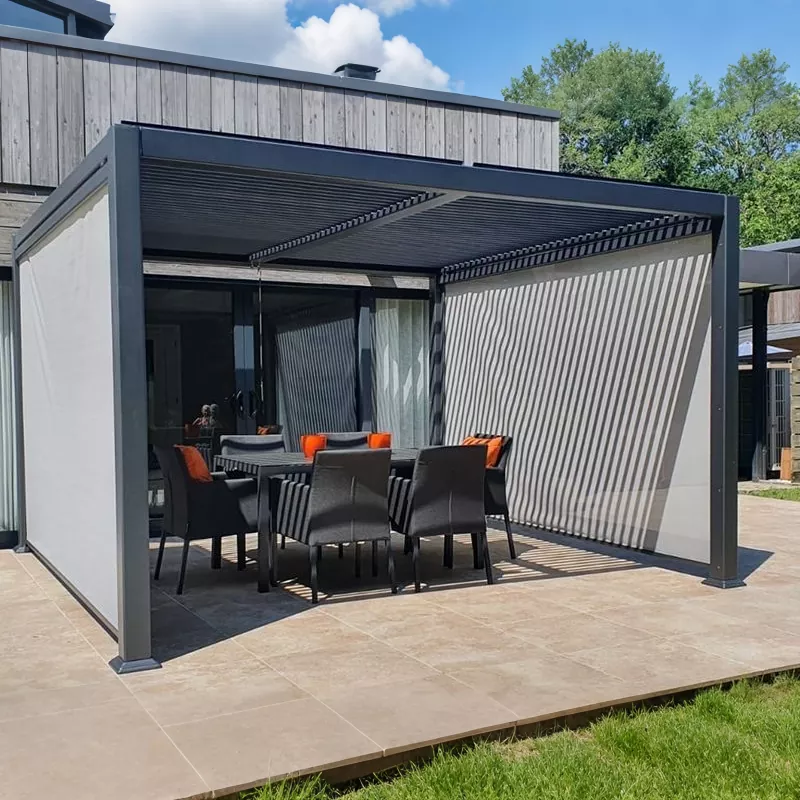

— Side zip screens or fixed glass infill panels for wind and privacy control

— PV panel mounts with blade reinforcement kit

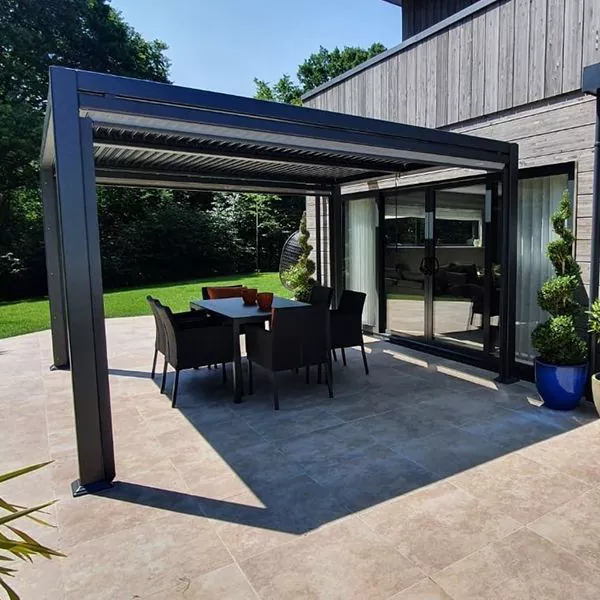

Where it's typically installed

Product Specifications

Structural & Dimensional

Motor & Control

Installation Process and Maintenance Schedule

Every Vionta adjustable louvered aluminum pergola ships with a numbered installation drawing set, a complete hardware kit, and a step-by-step assembly manual in English. A standard single-bay unit can typically be installed by a two-person crew in a day — no crane or heavy lifting equipment needed.

01.  Foundation layout and anchoring

Mark anchor points from the supplied base-plate drawing. Set M12×120 mm stainless steel anchor bolts into concrete and allow full cure time before proceeding.

02.  Column installation

Set posts plumb and tighten base-plate bolts to 40 N·m. Thread the internal drain pipe down through the hollow column and connect to site drainage at the base.

03.  Beam assembly

Slide beams into the CNC connector housings on top of each column. Secure with concealed M8 bolts. No site welding at any stage.

04.  Blade guide rail and blade installation

Mount aluminum guide rail extrusions on the inner beam faces, level with shims as needed. Slide blades into the guide rails from one open end, then fit end caps and the drive shaft.

05.  Motor wiring and commissioning

Mount the 24 V DC motor unit and connect pre-terminated wiring to the transformer and wall switch. Power up, pair the RF remote, run a full open/close cycle, and set motor limit stops.

06.  Water test and handover

Run water over closed blades to confirm the seal and check column drain outlets are clear. Hand over the installation manual and motor warranty card.

Recommended Maintenance Schedule

Common Questions from Buyers

Q  What happens to the blades in a storm — is there any real risk of wind damage?

All motorized adjustable louvered pergola units are compatible with an optional wind sensor. When wind speed crosses a preset threshold — adjustable between roughly 40 and 70 km/h — the sensor triggers the motor to rotate the blades to the fully open (0°) position, where wind resistance is minimal and structural load is lowest. We strongly recommend the wind sensor for any site within 500 m of the coastline or in an exposed, open location. Without it, blades should be manually set to 0° before a storm. For extreme-exposure sites, we also offer a mechanical blade-locking kit that physically secures the blades at the safe parked angle as an additional safeguard.

Q  Do you support custom sizing, and what's the minimum order quantity?

Yes — custom sizing is central to how we work at Vionta Metal from China. Most of our export orders involve at least one non-standard dimension. To put together a quote, we need: the blade span direction (width), the projection depth, the required clearance height to the beam underside, the mounting type (freestanding or wall-mounted), the local wind zone or snow load if known, and your preferred color or finish. From there, our engineering team produces a fabrication drawing for your approval before any cutting starts. Custom lead times are typically 3–5 working days longer than standard. Minimum order is one unit — sample pricing doesn't carry volume discounts, but it's the most practical way for contractors and distributors to evaluate build quality before committing to a larger run. Standard batch orders start at five units; distributor volumes are negotiable.
