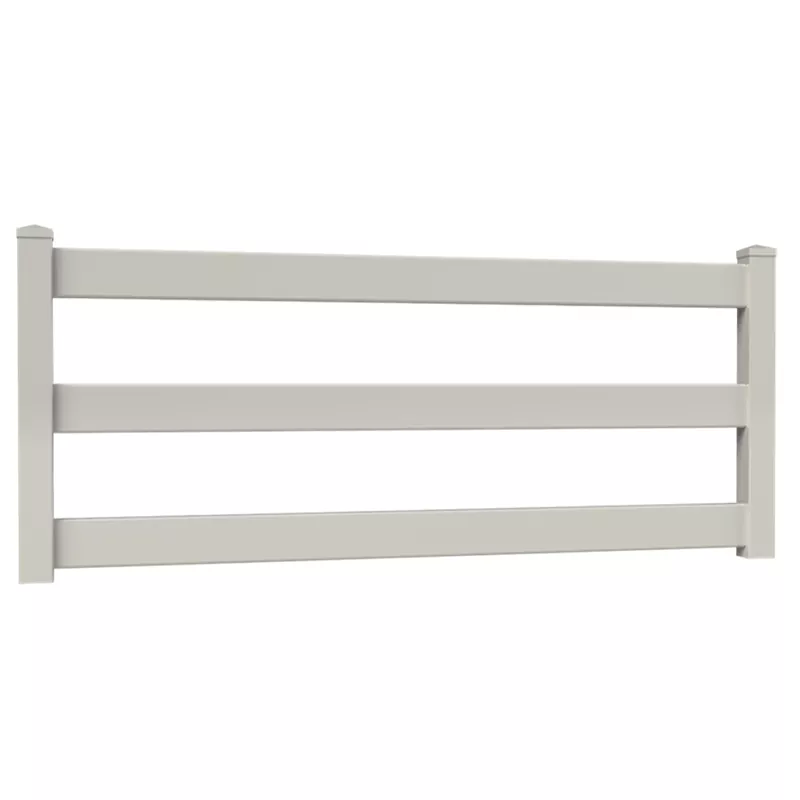

3 Rail Vinyl Fence

Suitable For Ranches And Estates; Factory Direct Pricing; Supports Global Bulk Purchasing.

Overview of the Product

Vionta is dedicated to providing high-performance 3 Rail Vinyl Fences for horse farms and large commercial territories worldwide. We are not only suppliers, but also the source factories. With the full industry chain production mode, we can accurately control every link from raw material formulation to factory testing, ensuring that every batch of products delivered to distributors has ultimate color stability and weather resistance.

Our PVC railings are specially designed to cope with harsh environments, and can still remain as new for a long time in outdoor high salt spray and strong ultraviolet areas. The reason why customers choose Vionta is simple: Say goodbye to tedious post coating and maintenance, directly reduce long-term operating costs by 60%, and find the best balance between performance and budget.

Core Product Specifications

Core Advantages

Traditional wooden fences, while aesthetically pleasing, suffer from rot, insect infestation, and frequent repainting. Especially in rainy or high-UV-affected areas, the maintenance costs of wood are extremely high.

Vionta's vinyl fences are made from 100% virgin, environmentally friendly PVC material, with a special UV stabilizer added to the formula. Its core advantages are:

1.   No Rust and No Maintenance

PVC is inherently insect-proof, corrosion-resistant, and waterproof. After installation, there is no need for painting or rust prevention treatment, which greatly lowers the lifetime cost. The annual maintenance cost per linear meter is around 80% lower than that of wooden fences.

2.   Long-lasting, UV-resistant Color

After 5000 hours of accelerated UV aging tests, the color difference ΔE is ≤ 3 with the addition of TiO₂ and ASA UV stabilizers, and the color won't fade for 20 years. Ideal for long-term exterior installation in regions with strong UV exposure, like Australia and North America.

3. Easy Installation; No Special Tools Needed

A single person may operate the slot-type (Routed Post) design, which enables the horizontal rails to snap straight into the uprights' grooves without the need for specialized power tools. About 200–300 linear meters can be installed daily by a competent worker.

4. All-Climate Adaptability

Tolerates extreme temperature differences from -40°C to +60°C, proven through long-term field testing in coastal salt spray, humid heat, and arid desert regions. Numerous installation cases have been completed in extremely cold regions such as Alberta and Minnesota, Canada.

5. Recyclable and Eco-friendly

We always adhere to green manufacturing. Vionta's production waste is 100% internally recycled and strictly follows RoHS and REACH environmental regulations. Our product formula strictly prohibits the addition of any harmful heavy metals such as lead and cadmium to ensure that we create value for our customers without burdening the environment

6. Comprehensive Customization

We can provide comprehensive customization support from color, specifications, wall thickness to surface texture. Thanks to the efficient R&D process, samples can be delivered in as fast as 15 days. In addition, we also provide neutral packaging and OEM branding services, fully supporting the diverse procurement needs of global distributors, brand owners, and large-scale engineering project parties.

Applicable Scenarios

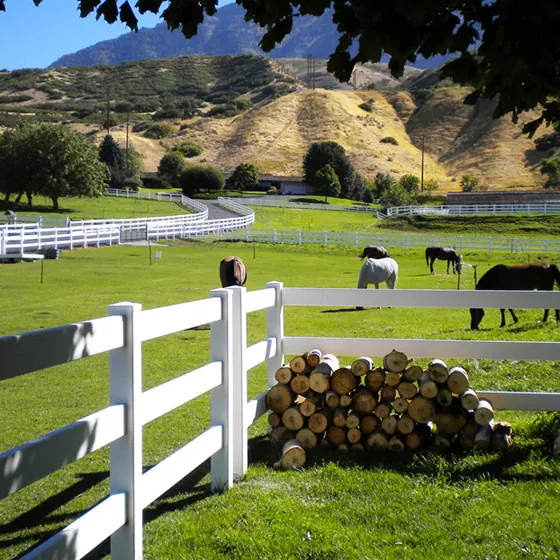

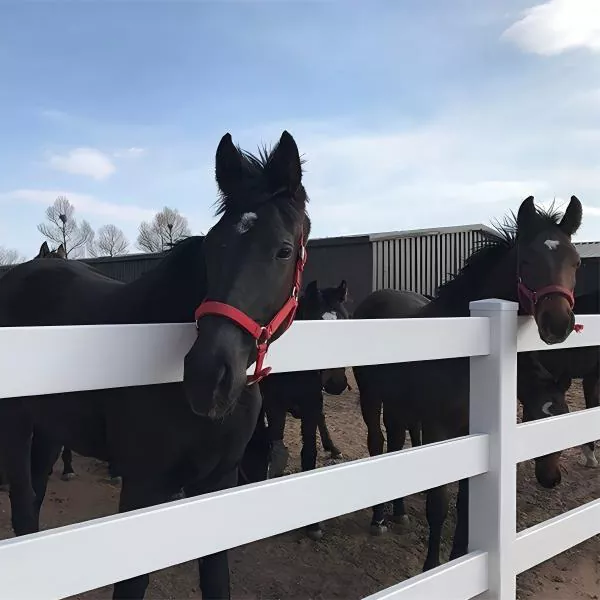

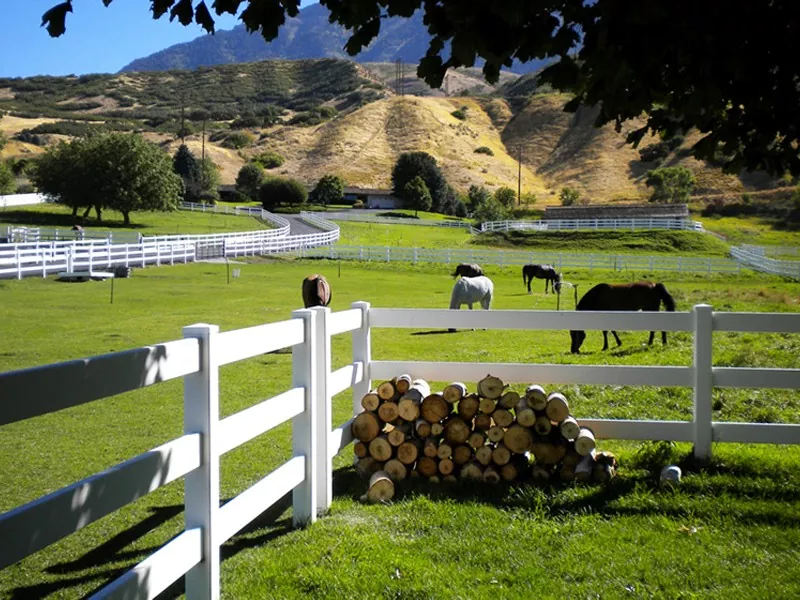

● Fencing for Ranches and Stables: The three-track structure provides ample lateral strength, effectively preventing livestock from crossing the fence, and is widely used in large farms across the United States, Canada, and Australia.

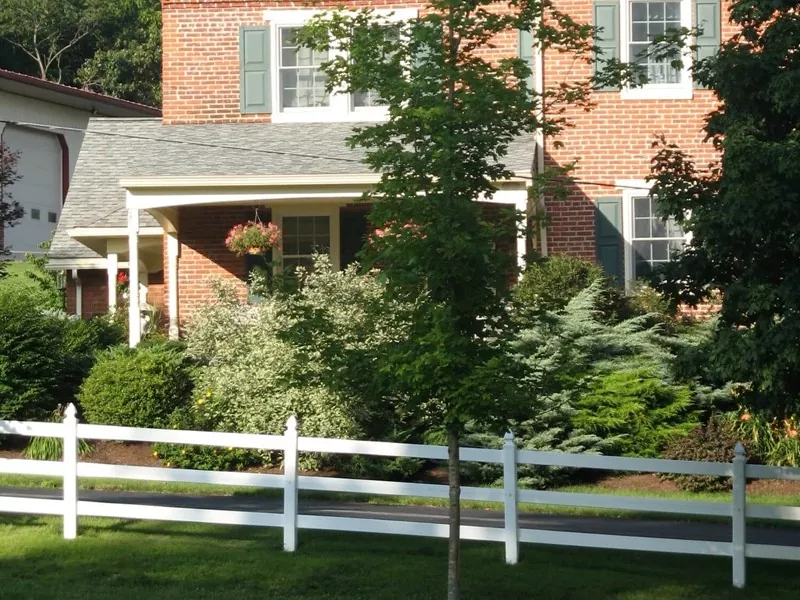

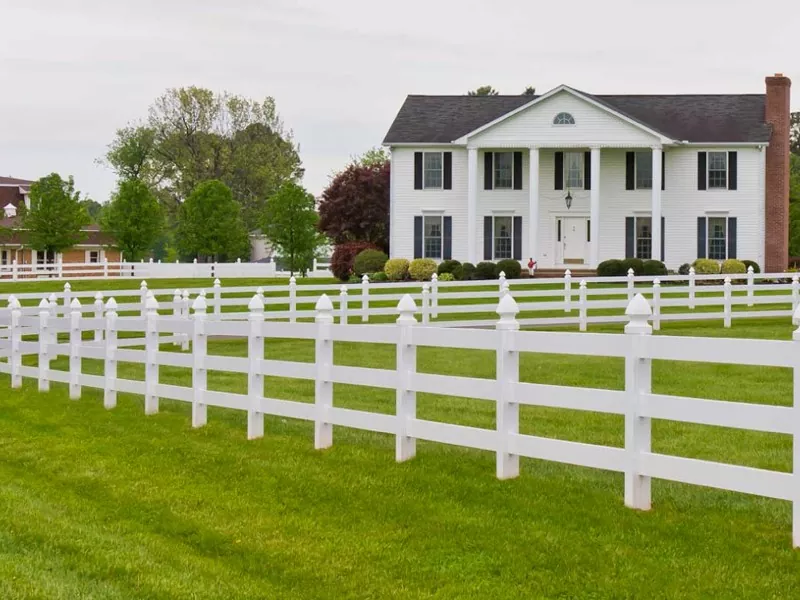

● Residential Estate Landscape Fence: White PVC posts paired with horizontal rails and greenery create a classic English or American estate-style boundary.

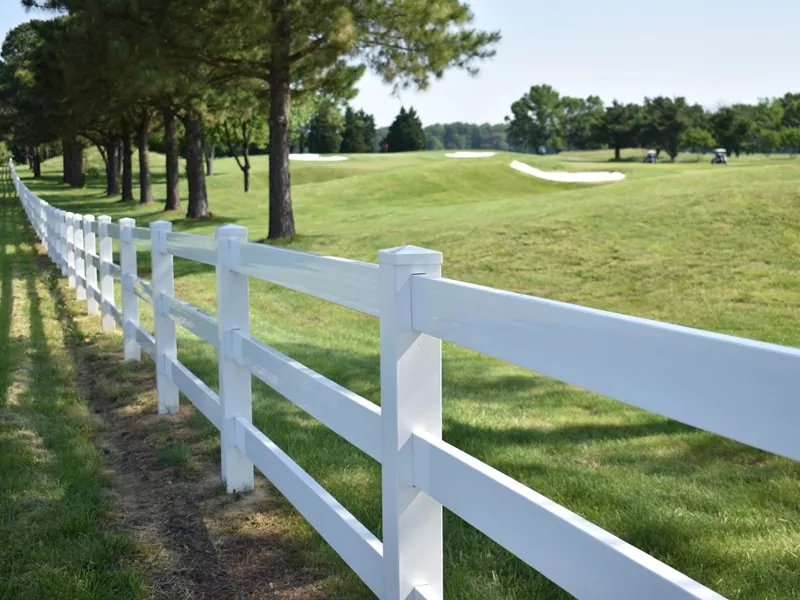

● Boundary demarcation for commercial real estate: Golf courses, resorts, and commercial parking lots with perimeter markings, combining aesthetics and functionality.

● Public Green Spaces and Municipal Projects: Park pathways, riverbank railings, school boundaries, with weather resistance meeting municipal procurement requirements.

● Industrial Plant Isolation and Protection: Plant road segregation, hazardous area warning fences, with reflective strips to enhance nighttime safety.

Packaging and Logistics Instructions

FAQ

Q1 : What are the fundamental differences between Vionta 3 Rail Vinyl Fence and ordinary PVC fence? ？

Ordinary low-priced PVC fences typically use recycled materials or low-recipe raw materials, with a wall thickness of only 2.5–3.0 mm and insufficient UV stabilizer. Under strong outdoor sunlight, they will show obvious yellowing, brittleness, and even cracking within 3–5 years. Vionta uses Virgin PVC raw materials that meet ASTM D-4216 standards, with a horizontal rail wall thickness ≥ 4.0 mm. The formulation includes sufficient TiO₂ (≥15 phr) and ASA weather modifier, along with 5000 hours of UV aging verification, ensuring that the product maintains color stability for over 20 years under the strong UV environment of North America.

Q2: How much wind pressure can a 3-rail vinyl fence withstand? Is it suitable for coastal or typhoon-prone areas?

Standard 3 Rail guardrails, with a post spacing of 2440 mm and a embedment depth of 600 mm (concrete pouring), have a lateral wind pressure resistance of ≥ 1.5 kPa, equivalent to the dynamic pressure of approximately Force 12 winds (wind speed ≈ 35 m/s). For typhoon or strong wind areas, it is recommended to shorten the post spacing to 1800–2000 mm, upgrade the wall thickness to 5.0 mm, and use steel-reinforced posts. Please contact the Vionta technical team for specific engineering calculations.

Q3: Will PVC fences become brittle and break due to low temperatures in extremely cold regions (such as Canada and Northern Europe)?

Vionta's formulation includes impact modifiers (CPE or ACR) and has passed the ASTM D256 low-temperature impact test (-20°C environment, cantilever beam impact without cracking). It has been installed extensively in extremely cold regions such as Alberta and Minnesota, Canada, for many years, with no systemic brittle fracture issues reported in winter. For more stringent low-temperature requirements, a -40°C formulation can be customized; please inform us in advance.

Why Choose Vionta？

Vionta, a Chinese vinyl fence manufacturer and supplier with more than 15 years of experience in international trading, has shipped its goods to more than 30 nations and regions. Choosing Vionta 3 Rail Vinyl Fence is not just buying a fence, but investing in a long-term asset. Its elegant lines, enduring quality, and exceptional security will significantly enhance the market value and user experience of your property.

From farms to villa backyards, from horse farms to public green spaces, Vionta's three-rail fencing is synonymous with durability and elegance.

We believe that stable quality is the cornerstone of long-term cooperation, a transparent factory is the starting point of trust, and rapid response service is the guarantee for every order. Choosing Vionta means choosing a Chinese factory that truly has the capability to control quality throughout the entire supply chain, from raw material formulation to finished product export, rather than a middleman facilitating orders.
