Aluminum Jalousie Windows

At Vionta Metal, we manufacture high-performance aluminum jalousie windows engineered to meet the rigorous demands of modern architectural projects. As a leading OEM/ODM manufacturer based in China, we supply commercial contractors, importers, and regional distributors with ventilation solutions that balance structural integrity with aesthetic flexibility. Our jalousie window systems feature precision-engineered aluminum frames and adjustable louvers, offering maximum airflow control, exceptional durability, and low maintenance in challenging environments.

Why Choose Aluminum Jalousie Windows for Your Projects?

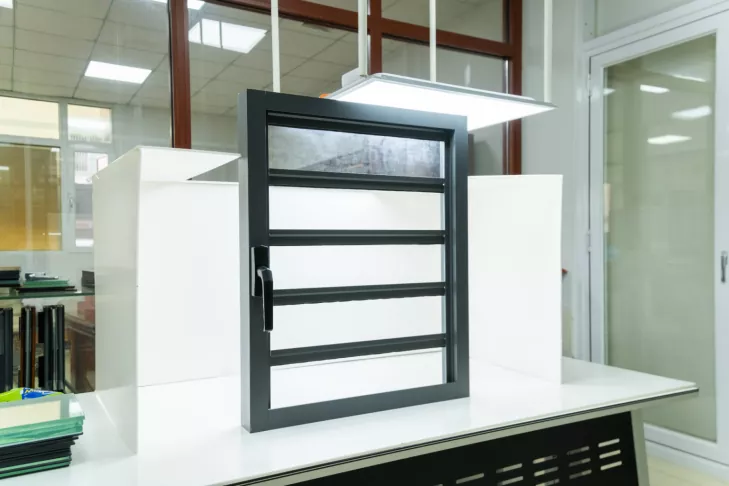

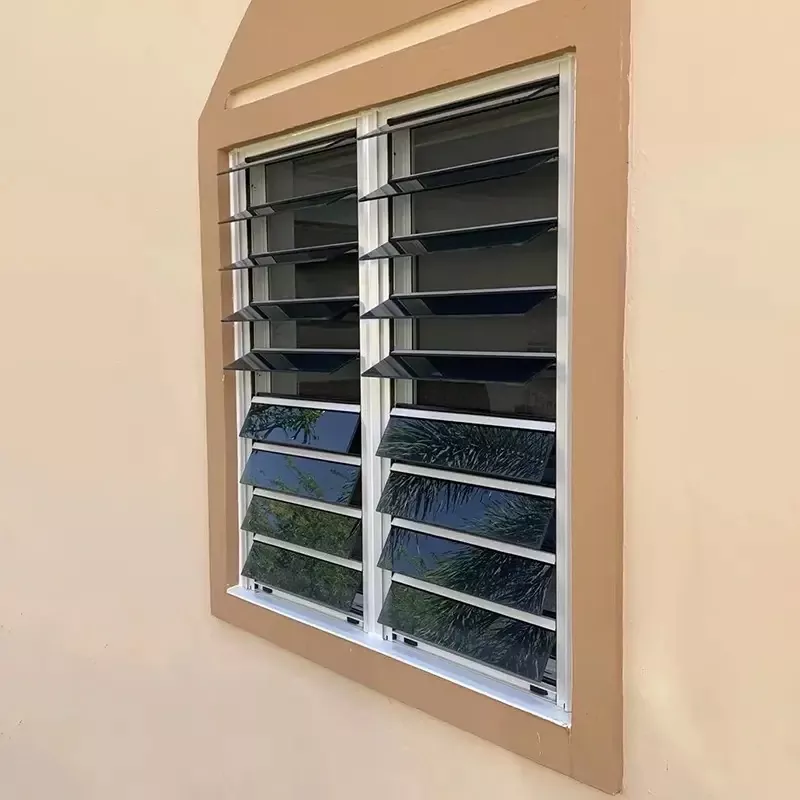

An aluminum jalousie window, also called a louvered window or louver window, is built from a series of horizontal blades held inside an aluminum frame and connected to a single gear-driven crank handle. Turning the handle tilts every blade at the same angle simultaneously, so the window can be opened in small increments for light airflow or fully opened for cross-ventilation. Closed, the blades overlap into a near-continuous surface.

We manufacture the frame from 6063-T5 aluminum alloy and offer three blade options — aluminum, glass, or insect mesh — so the same window body can be configured for a bathroom, a stairwell, a plant room, or a street-facing façade. As a factory based in Cixi, Ningbo, we supply both finished units to distributors and component sets to window fabricators who assemble locally.

Modern jalousie windows have evolved far beyond basic ventilation. Today, they represent a highly efficient, sustainable architectural choice for commercial and residential builds. By choosing an aluminum jalousie window system from an experienced supplier, you secure several distinct advantages:

• 100% Ventilation Capacity: Unlike standard sliding or double-hung windows that only open halfway, jalousie windows allow the entire window area to open, optimizing natural airflow and drastically reducing HVAC energy consumption.
• Aerodynamic Deflection: The angled layout of the blades allows fresh air into the building even during light rain, keeping interior spaces dry while maintaining continuous ventilation.
• Space-Saving Profile: Because the louvers rotate outward along a horizontal axis, these windows do not occupy internal or external floor space, making them perfect for narrow corridors, walkways, and high-traffic areas.

Comparison: Jalousie Windows vs. Conventional Window Types

For procurement managers and project estimators evaluating window configurations, understanding the functional trade-offs is essential. The table below outlines how our factory-grade jalousie systems perform against traditional options:

Core Product Features & Customization Options

• 6063-T5 aluminum alloy frame, mill finish, powder coat, or anodized
• Single or dual gear box crank mechanism for synchronized blade movement
• Stainless steel or zinc-alloy blade clips and fixings
• Optional locking crank handle and key-lock variants
• Blade pitch and overlap engineered to limit direct water ingress at typical open angles
• Compatible track for insect screen or security mesh add-on
• Available as standalone units or as a louvered section within a combination window/door system

As a dedicated factory, we offer full customization regarding material configuration, surface finishes, and hardware options. The performance of an aluminum jalousie window relies heavily on the choice of louver blades. We provide three distinct blade types to meet varied project specs:

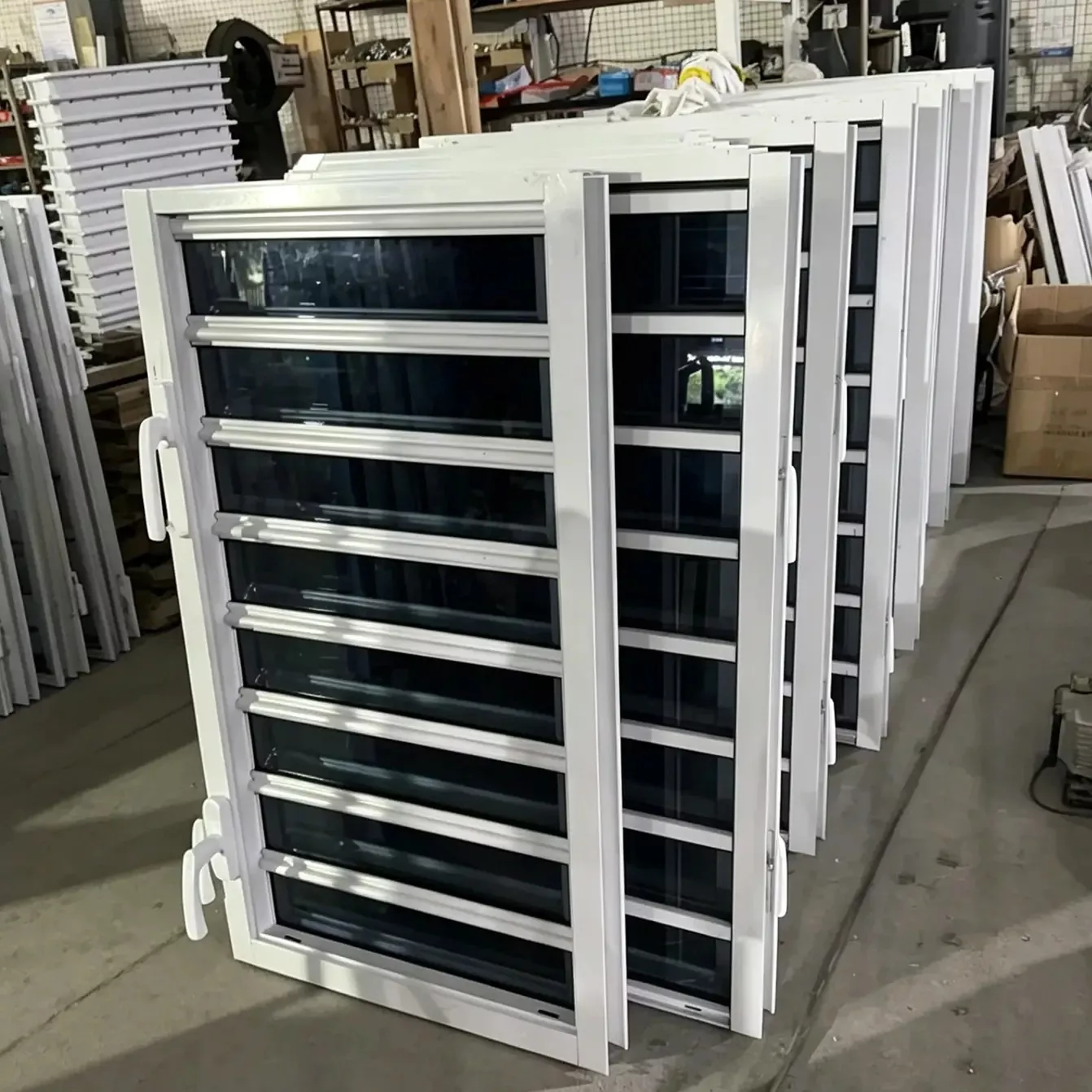

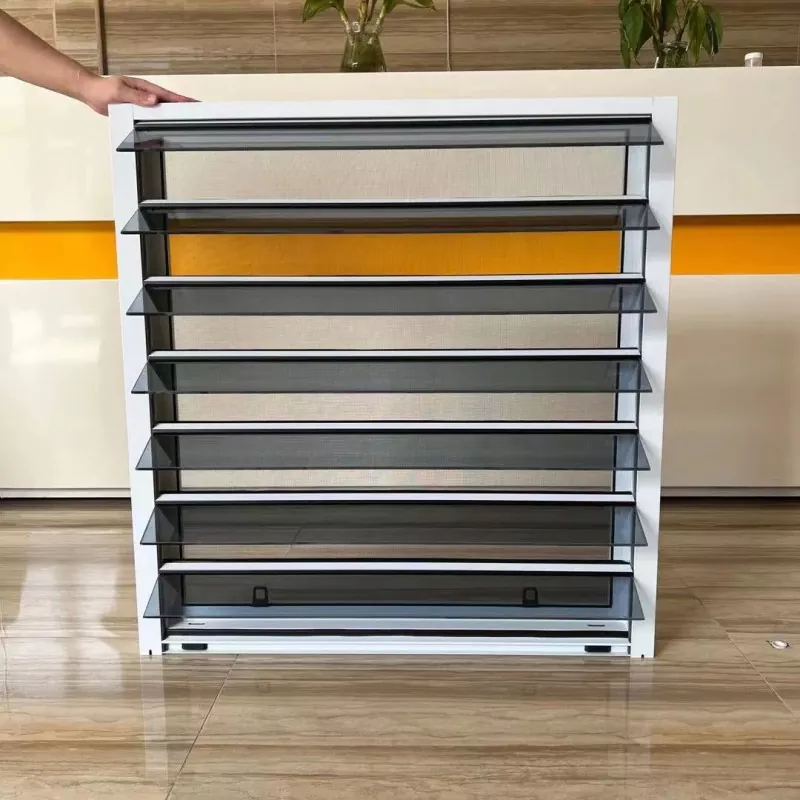

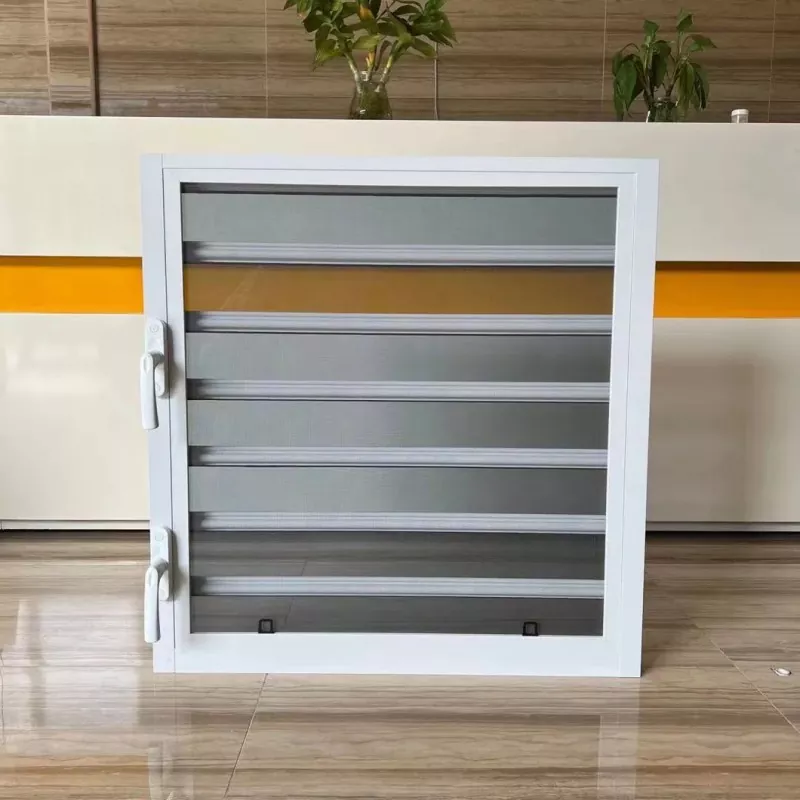

1. Glass Louver Blades

Available in tempered, frosted, or tinted variants (typically 5mm to 6mm thickness). Glass blades maximize natural daylighting even when closed, making them ideal for residential living spaces, schools, and commercial offices where visual connectivity is required.

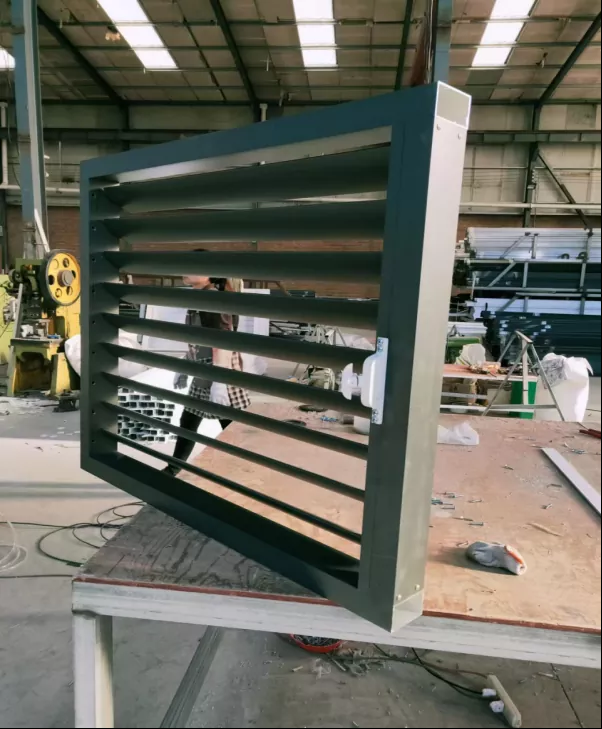

2. Extruded Aluminum Blades

Engineered from heavy-duty 6063-T5 aluminum alloy. These solid blades offer total privacy, superior security, and maximum shade against intense solar heat gain. Highly recommended for warehouses, substations, generator rooms, and high-security industrial facilities.

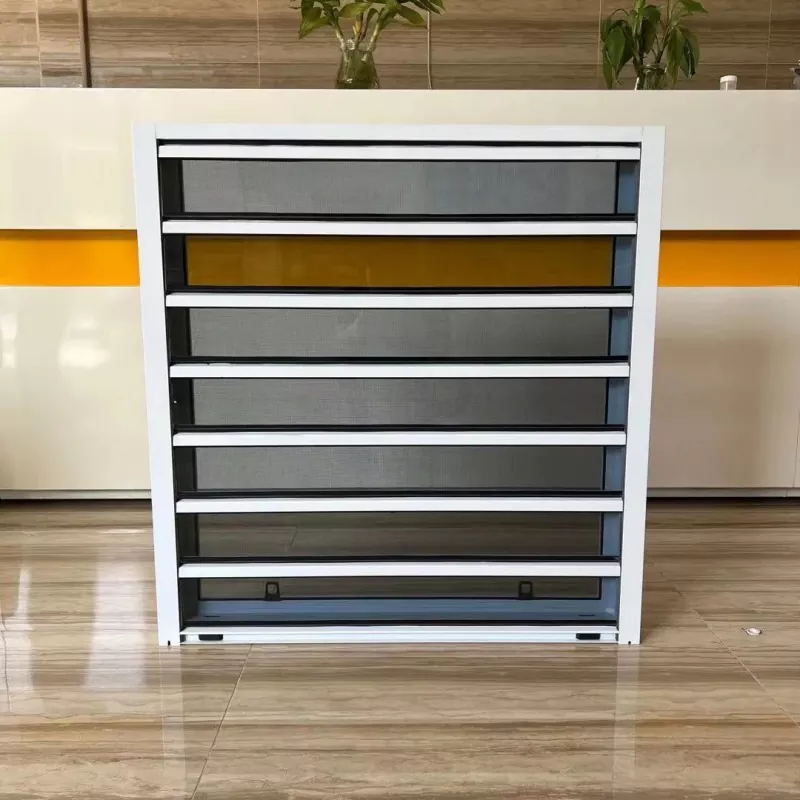

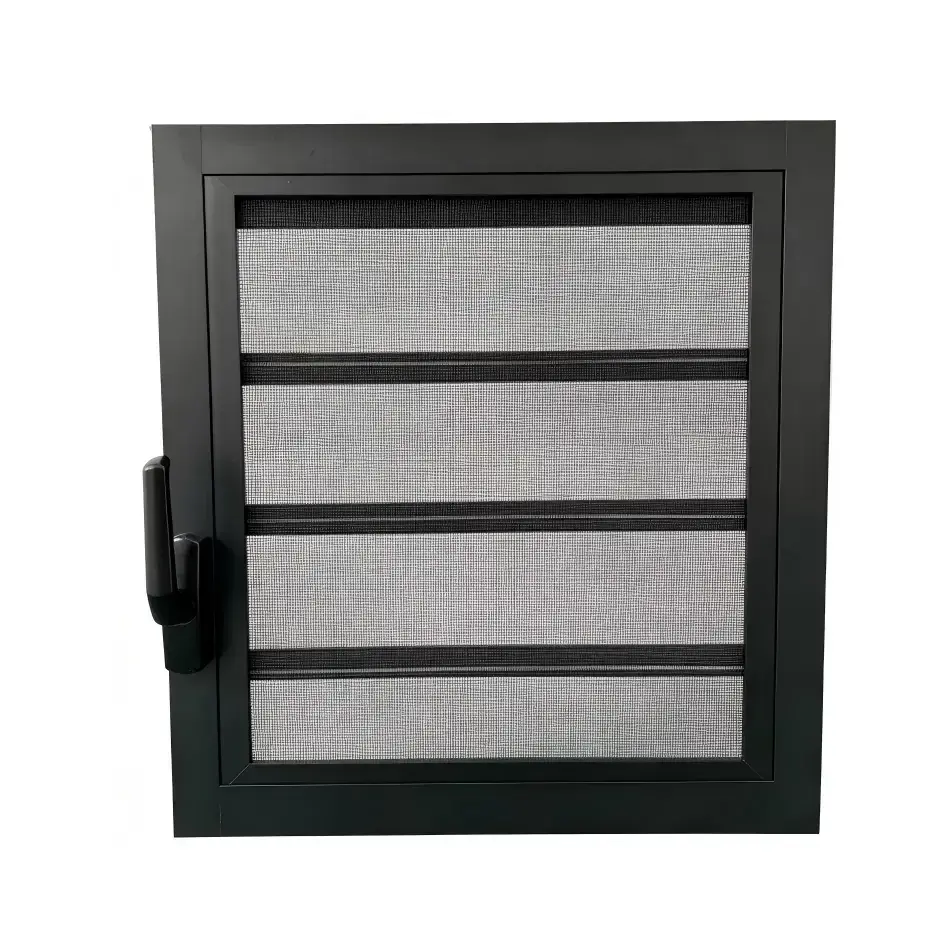

3. Integrated Insect Screen & Security Mesh Options

To protect interiors from insects and security breaches, Vionta Metal integrates high-tensile stainless steel mesh or fiberglass insect screens directly into the window assembly. The screen fits seamlessly behind the louvers without obstructing manual or motorized operation.

Geographic Suitability and Application Scenarios

Our export data shows that aluminum jalousie windows are primary architectural components in specific global markets. We regularly ship bulk container loads from our China facility to the following regions:

• Southeast Asia & Pacific Islands: (e.g., Philippines, Indonesia, Fiji, Papua New Guinea) where high humidity and frequent rainfall demand continuous, rain-deflecting airflow.
• The Caribbean & Central America: Regions exposed to corrosive maritime air and high hurricane risks benefit from our heavy-wall aluminum extrusions and corrosion-resistant anodized finishes.
• Sub-Saharan Africa: Where cost-effective, durable, and non-electrical cooling solutions are vital for public infrastructure like schools and clinics.

Key application sectors include school infrastructure projects, commercial eco-resorts, industrial manufacturing plants requiring passive smoke/heat ventilation, and residential coastal developments.

Technical Parameters & Engineering Standards

Every batch of windows leaving the Vionta Metal production line undergoes strict dimensional and structural quality control. Below are the standard technical specifications for our baseline configurations:

Installation Modalities and Routine Maintenance

We supply our window systems either fully assembled or in Knocked-Down (KD) form to optimize container space and reduce shipping costs for high-volume wholesale buyers. Our frames feature pre-drilled fixing points compatible with standard masonry, steel frame, and timber structural openings.

Procedures for Field Longevity:

• Structural Fastening: Ensure the window frame is installed perfectly plumb and square. Any racking of the outer frame will cause uneven pressure on the louver clips and compromise the smooth operation of the linkages.
• Sealing: Use a high-modulus, UV-resistant neutral silicone sealant around the perimeter exterior joint to prevent water bypass.
• Routine Maintenance: Clean the aluminum profiles and louver clips twice a year with mild soapy water to remove accumulated salt deposits and industrial grime. Avoid abrasive pads. Lubricate pivot joints with a dry silicone spray annually; do not use heavy grease, which attracts dust and grit.

Target Procurement Profiles & Project Match

As a commercial supplier, we tailor our production lines to meet the volume and delivery schedules of specific B2B buyers:

• EPC Contractors & Developers: Seeking an established China factory capable of providing mill certificates, material traceability, and reliable manufacturing leads for large-scale social housing or school infrastructure tenders.
• Wholesale Distributors & Importers: Requiring container-load shipments of standardized sizes with durable, retail-ready packaging and custom branding options.
• Industrial Facility Engineers: Looking for automated or manual heavy-duty ventilation louvers for factories, processing plants, and agricultural facilities.

Frequently Asked Questions (FAQ)

Q1: How do Vionta Metal jalousie windows handle security concerns against forced entry?

A: Security is a primary design factor. For high-risk applications, we recommend our solid extruded aluminum blades, which are locked into heavy-duty aluminum or stainless steel retaining clips. Additionally, we can integrate permanent stainless steel security bars or burglar-resistant mesh panels directly into the frame structure during fabrication, ensuring ventilation without compromising security.

Q2: Can your factory manufacture windows according to specific country building codes?

A: Yes. We regularly manufacture windows according to regional structural requirements. Our engineering team reviews your local wind load parameters, water tightness specifications, and alloy grading requirements before production begins. We ensure that profile wall thicknesses and hardware configurations match your specific commercial building codes.

Q3: What is the expected service life and warranty period for your aluminum jalousie windows?

A: Under standard atmospheric conditions, our 6063-T5 aluminum frames treated with quality architectural powder coating or anodization have a service life exceeding 20 years. We provide a 5-year warranty on our mechanical hardware and surface coatings against cracking, peeling, or significant structural degradation, provided routine maintenance is performed.

Q4: How do you package the windows to prevent damage during international sea freight?

A: We utilize export-grade packaging protocols. For fully assembled windows, units are protected with protective PE film, separated by foam corner guards, and packed into heavy-duty corrugated cartons stacked on fumigated wooden pallets. For Knocked-Down (KD) orders, components are bundled with protective wrapping and placed into reinforced wooden crates to maximize space and guarantee zero movement during transit.

Request a Quote

For drawings, sample requests, or project pricing on aluminum jalousie windows, contact our team at riley@viontametal.com. Vionta Metal — Zhejiang Vionta Metal Co., Ltd., Ningbo, China.
