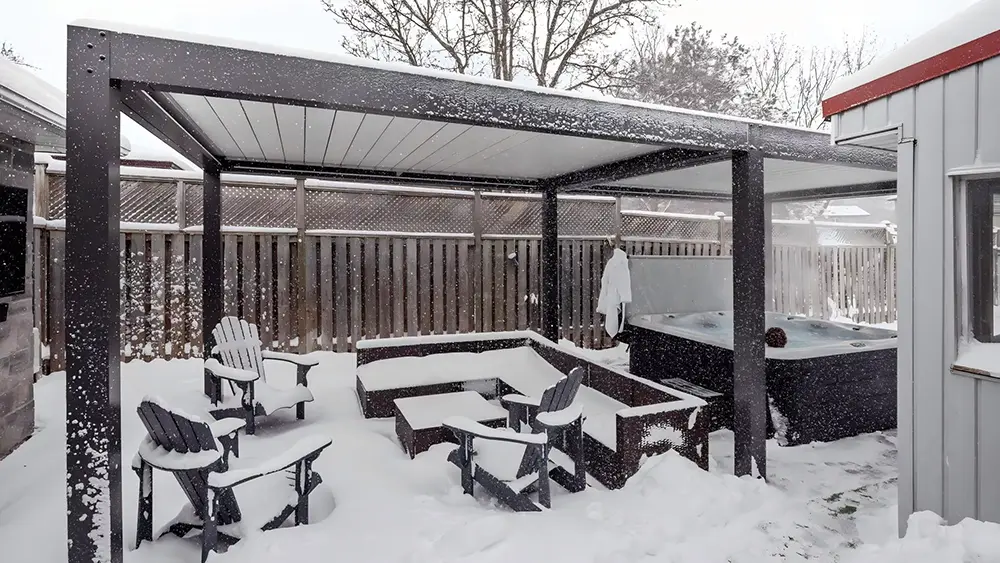

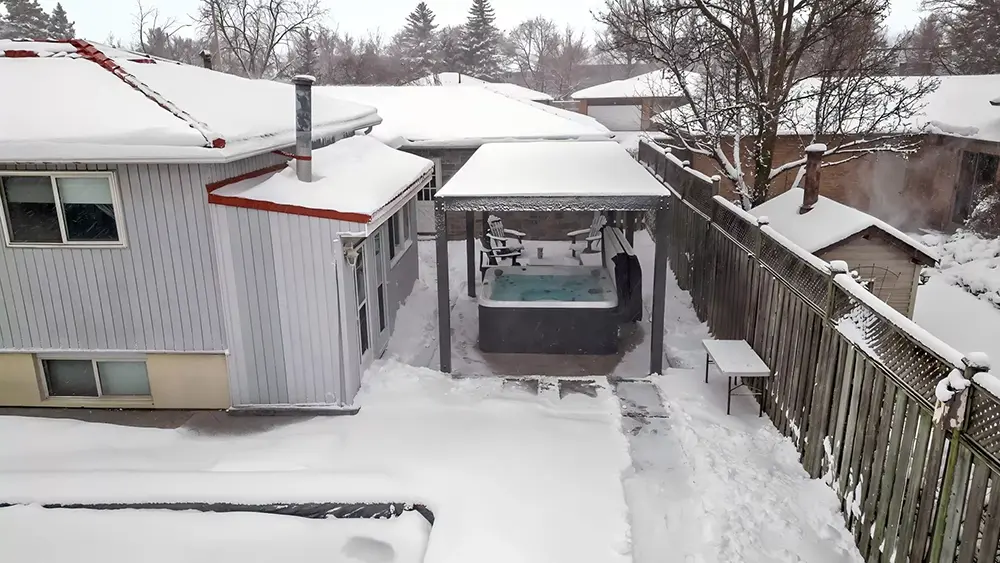

Snow Load Aluminum Pergola

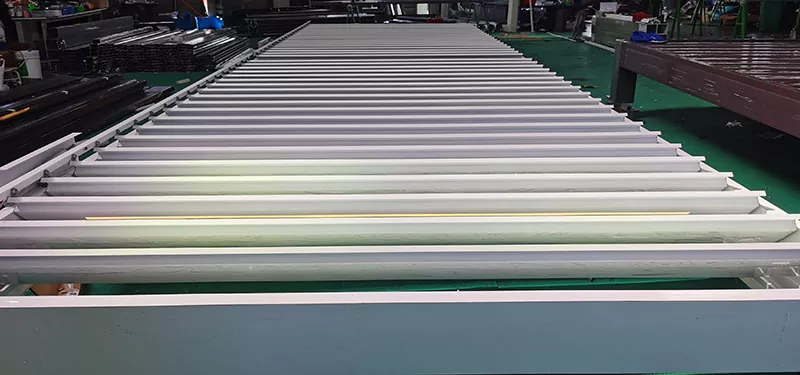

The Snow Load Aluminum Pergola is a structural solution designed specifically for regions where snow accumulation poses a significant threat to outdoor installations. Unlike standard pergolas that prioritize aesthetics over function, this system is built with load-bearing capacity as its primary engineering principle. We have utilized high-grade aluminum alloy, typically 6063-T6, known for its excellent strength-to-weight ratio and corrosion resistance . The louver system, constructed with double-skin extruded aluminum, provides the necessary rigidity to withstand compressive forces from heavy snow packs while maintaining a sleek, modern appearance. This is not a seasonal product; it is a permanent architectural addition that performs year after year. Why does this matter for your project? Because choosing a pergola that is properly engineered for snow load capacity ensures safety, reduces liability, and protects your investment.

As an experienced China manufacturer and supplier of aluminum pergolas, Vionta Metal provides project-oriented solutions for residential developments, hotels, restaurants, commercial properties, villas, resorts, and outdoor architectural projects. Snow Load Rating, Snow Load Capacity, Wind Load Rating, roof dimensions, structural configuration, and installation conditions can be evaluated according to the requirements of each project.

Why Choose a Snow Load Aluminum Pergola?

A pergola installed in a snowy region needs to be considered differently from one used in a warm climate. Snow accumulation creates a vertical load on the roof, while wind, temperature changes, and repeated freeze-thaw cycles can place additional demands on the structure and connections.

Our Snow Load Aluminum Pergola is designed around these practical requirements rather than simply adding a winter-related marketing label to a conventional pergola.

Engineered snow load performance: The roof and supporting structure can be designed according to the required Snow Load Capacity.

Aluminum structural frame: Aluminum provides a favorable strength-to-weight ratio and naturally resists corrosion.

Year-round outdoor use: Suitable for projects requiring an All-Season Aluminum Pergola rather than seasonal removal.

Winter climate suitability: Appropriate for projects in cold and snowy regions when correctly engineered for the local design loads.

Wind and snow considerations: Structural design can account for both Snow Load Rating and Wind Load Rating.

Low routine maintenance: Powder-coated aluminum does not require regular painting like traditional timber structures.

Project customization: Dimensions, colors, louver configuration, drainage, lighting, controls, and structural details can be customized.

What Makes This an All-Season Aluminum Pergola?

An All-Season Aluminum Pergola is designed to remain part of the outdoor space throughout the year rather than being installed only during warm weather. For cold climates, the critical issue is not simply whether the frame is made from aluminum. The complete structure must be considered, including posts, beams, roof blades, fasteners, foundations, drainage, and connections.

For snowy projects, we evaluate the expected environmental conditions and required structural performance before confirming the final configuration. This approach helps ensure that the pergola is matched to the actual project instead of relying on a single universal snow-load specification.

For example, a pergola installed in a region with occasional light snowfall has different requirements from one installed in a Heavy Snow Area where snow can remain on the roof for extended periods. Roof size, unsupported span, building exposure, installation method, and local design criteria can all affect the required structural capacity.

Comparison: High Snow Load Pergola vs. Standard Aluminum Pergola

Understanding the engineering differences helps commercial buyers select the appropriate structural rating for their local building codes and climate conditions.

The exact difference depends on the project specification. A standard aluminum pergola can potentially be suitable for some snowy areas if its calculated structural capacity meets the required local loads.

What Are the Core Features of Our Snow Load Aluminum Pergola?

1. Engineered Snow Load Capacity

The Snow Load Capacity is one of the most important specifications for a pergola installed in a snowy region. Our structural configuration can be developed according to the required load rather than applying the same specification to every project.

When requesting a quotation, buyers should provide the project location, pergola dimensions, roof configuration, expected snow conditions, installation method, and any applicable local structural requirements. Our engineering team can then determine an appropriate structural configuration.

2. Aluminum Structural Frame

Aluminum is well suited to outdoor construction because it combines relatively low weight with good corrosion resistance. With an appropriate alloy, profile design, wall thickness, connection method, and surface finish, aluminum can provide a durable structural solution for outdoor pergolas.

For winter projects, the performance of the complete structure matters more than the material name alone. Beam spans, post dimensions, roof support, fasteners, and foundation connections all contribute to the final load-bearing performance.

3. Integrated Drainage

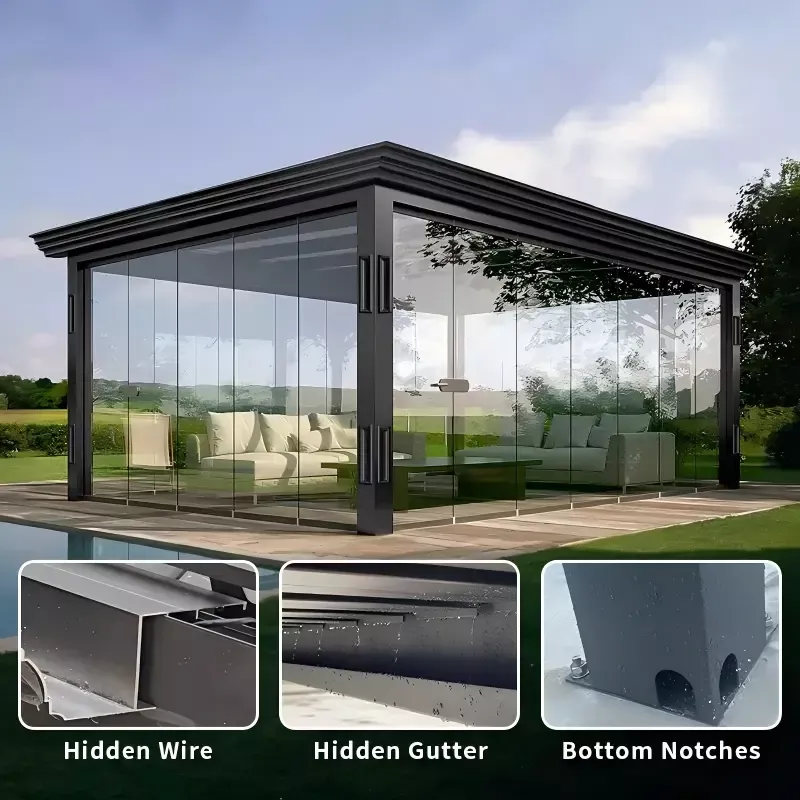

Snow and melting water require controlled drainage. Our pergola designs can incorporate internal gutters and downspouts to direct rain and melting snow away from the occupied area and structural connections.

4. Powder-Coated Surface

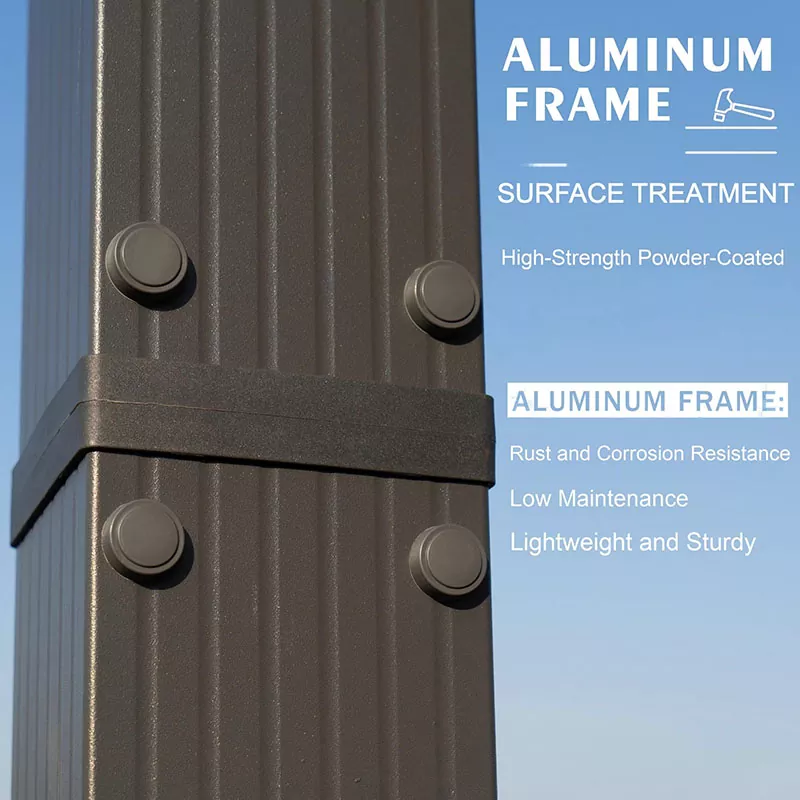

The aluminum frame can be finished with an outdoor-grade powder coating in commonly requested architectural colors. The coating provides an additional protective layer against weather exposure while allowing the pergola to match residential and commercial building finishes.

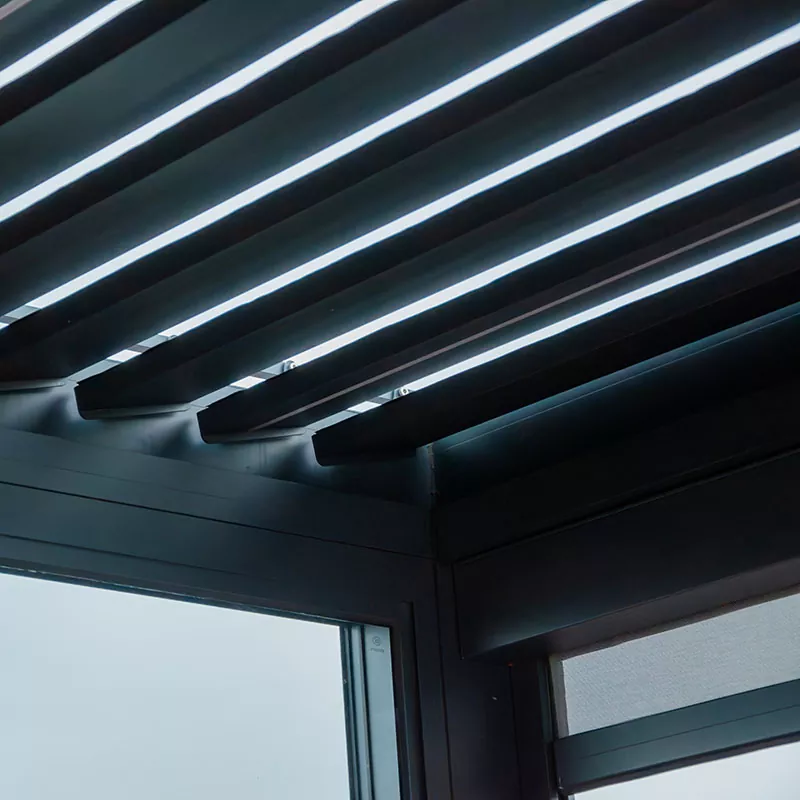

5. Motorized Louver Options

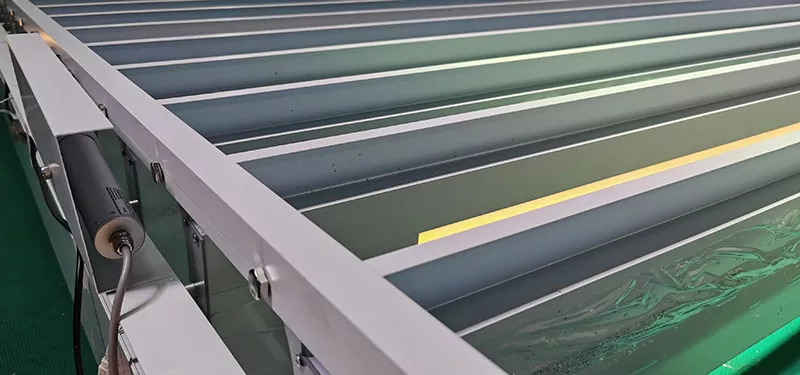

For projects using adjustable louvers, the roof system can be configured for controlled opening and closing. Depending on the specific design, the louvers can provide ventilation, daylight control, and rain protection during normal weather conditions.

For areas with significant snowfall, however, the operating procedure during snow events should follow the final engineered product specification. Buyers should not assume that motorized louvers can be opened or moved while heavily loaded with accumulated snow.

Technical Specifications & Engineering Data

Below are standard production specifications. As a fully integrated factory supplier in China, Vionta Metal offers tailored dimensions and custom structural calculations based on specific local building code submissions.

Installation Guidelines & Maintenance Protocols

Proper foundation mounting and maintenance ensure that our structural aluminum pergolas retain their load ratings and operate smoothly for decades.

Installation Essentials for Heavy Snow Areas

· Foundation Anchoring: All support posts must be anchored directly into concrete footings or reinforced steel substructures using 316 stainless steel expansion bolts. Direct mounting onto unreinforced composite decking is strictly discouraged in high snow load zones.

· Leveling & Pitching Alignment: Ensure beam profiles maintain precise square alignment during frame assembly. This allows louver locking mechanisms to form an airtight seal and guarantees proper water runoff into the drainage posts.

· Electrical Wiring Integration: Run electrical conduit internally through designated post slots before securing structural base plates to keep motor power cables protected against moisture and freeze exposure.

Maintenance Practices for Cold Climates

· Pre-Winter Inspection: Clear fallen autumn leaves and debris from top gutters and post downspout bases to maintain unobstructed water flow during thaw periods.

· Extreme Snow Event Operation: For ambient snowfall exceeding calibrated ratings (e.g., severe blizzards exceeding 220 kg/m²), keep the louver blades set open at 90 degrees to allow excess snow to pass through without loading the frame structure.

· Surface Cleaning: Wash down powder-coated surfaces twice per year using warm water and mild detergent. Avoid abrasive tools, wire brushes, or harsh acid-based solvents that could mar the protective coating.

Frequently Asked Questions (FAQ)

1. How does your snow load rating hold up during sudden blizzards in heavy snow areas?

Our heavy-duty pergolas are designed for heavy snow areas with structural load ratings ranging between 120 kg/m² and 220 kg/m². This is made possible through thick 6063-T6 aluminum profiles and double-walled louver blades that resist bending under significant weight. During extreme weather forecasts where snow accumulation is expected to surpass local structural design limits, setting the automated louvers to a vertical 90-degree position prevents excess weight from building up on the roof deck.

2. Can Vionta Metal supply custom sizes and meet local building code standards in cold climates?

Yes. As a direct manufacturer and factory supplier, Vionta Metal provides full OEM and ODM customization. We adjust frame spans, column thicknesses, and internal beam reinforcements to meet exact site requirements. We provide complete technical datasheets, CAD shop drawings, and structural load calculations to help commercial partners clear municipal building permit approvals across North American and European markets.

3. What is the expected service life of the motor system and powder-coated frame in sub-zero conditions?

The structural aluminum frame carries a service lifespan exceeding 20 years with minimal wear. We utilize exterior-grade AkzoNobel powder coatings formulated to resist salt corrosion, cracking, and severe UV exposure. Our motorized drive systems utilize IP67-rated waterproof motors filled with low-temperature synthetic lubricants, ensuring reliable electronic operation in freezing weather environments down to -20°C.

Partner with Vionta Metal – Your Trusted Aluminum Pergola Supplier

A Snow Load Aluminum Pergola is not simply a standard pergola with a winter label. For cold climates, the structural design should be matched to the required Snow Load Capacity and Wind Load Rating, while the roof, drainage, connections, foundations, and installation method should be considered as one complete system.

Whether you are sourcing an All-Season Aluminum Pergola for a residential development, a High Snow Load Pergola for a commercial project, or an Aluminum Pergola for Snowy Climates for a distributor program, Vionta Metal can work with your project requirements to develop an appropriate specification.

Contact our engineering sales team today to request CAD files, factory-direct pricing, or custom B2B project quotes for your regional market.
